WARNING !!!! Dealer & Service Center Use Only
Warning !
MAKE CERTAIN POWER SUPPLY TO HEATPUMP and CONTROLLER IS DISCONNECTED PRIOR
TO CONTINIUING. FAILURE TO DISCONNECT ELECTRICAL POWER MAY RESULT IN SERIOUS
INJURY OR DEATH.
1. String 18/3 cable from the controller to the heat pump.
2. Locate
the MICROPROCESSOR POWER BOARD inside the heat pumps electric box. (See figure 1)
3. Connect the 18/3 cable from the controllers low voltage heater terminals to the MICROPROCESSOR
POWER BOARD Jandy terminal block, terminals X, Y and Z. The terminals are as follows: X is the
HIGH/SPA terminal, Z is LOW/POOL terminal, and Y is the COM/OFF terminal. (See figure 3 below)
4. RECONNECT POWER TO THE HEATPUMP.
5. Simultaneously, press and hold, both the UP and Down arrow keys until CF1 is displayed.
6. While
CF1 is displayed press the POOL/SPA key repeatedly until LOC is displayed. Now press the UP
arrow repeatedly until 050 is displayed.
7. Press the POOL/SPA key repeatedly until JAO is displayed. Press the UP arrow repeatedly until 3 is
displayed.
8. After a delay of approximately 10 seconds, the water temperature is displayed. Set the heat pumps
thermostats to the desired temperature settings. The heat pumps thermostats are now ready to be
selected by the controller.
*NOTE The Compool CP30 uses low voltage pigtails instead of terminals.

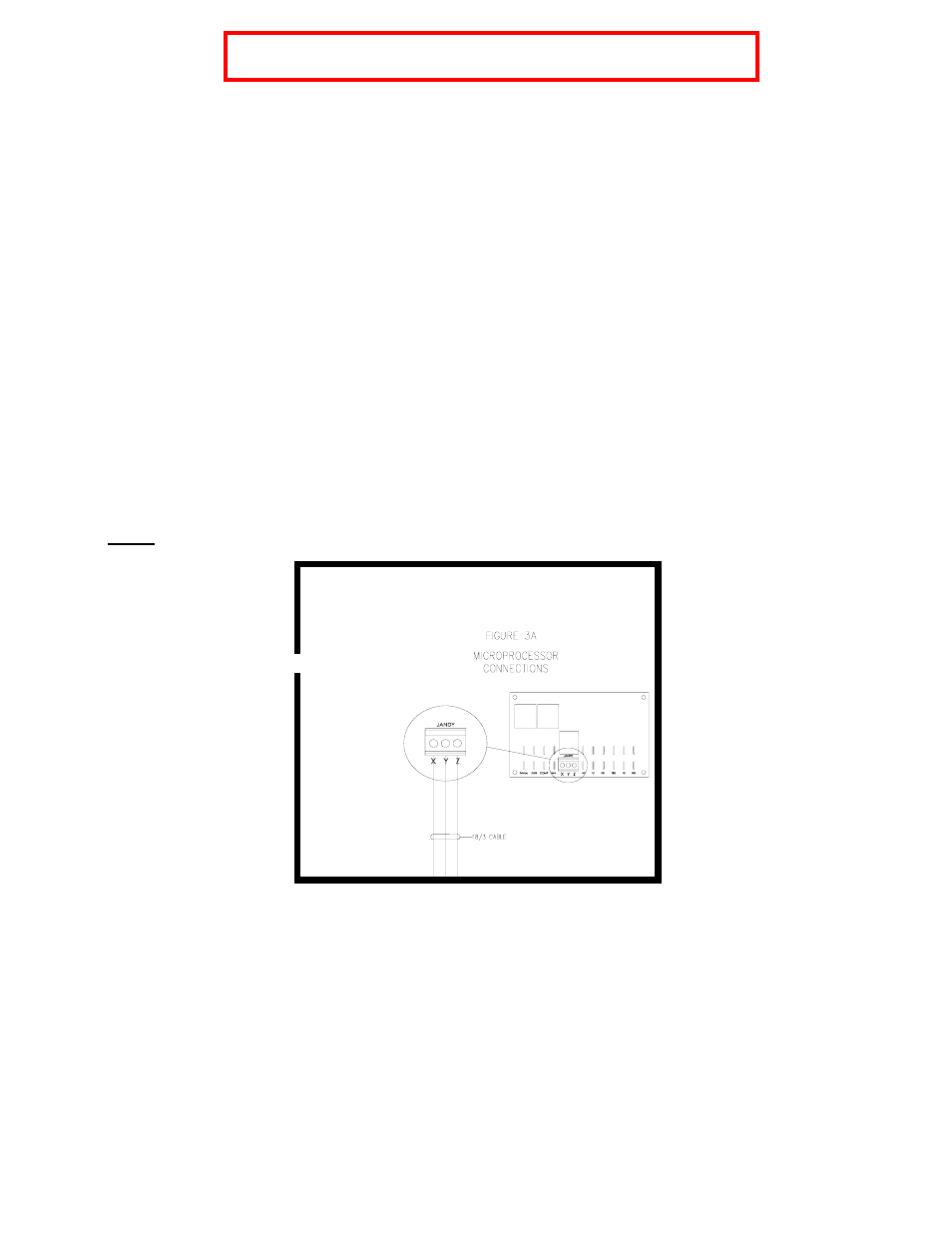

Figure 3
