DVD PLAYER
9

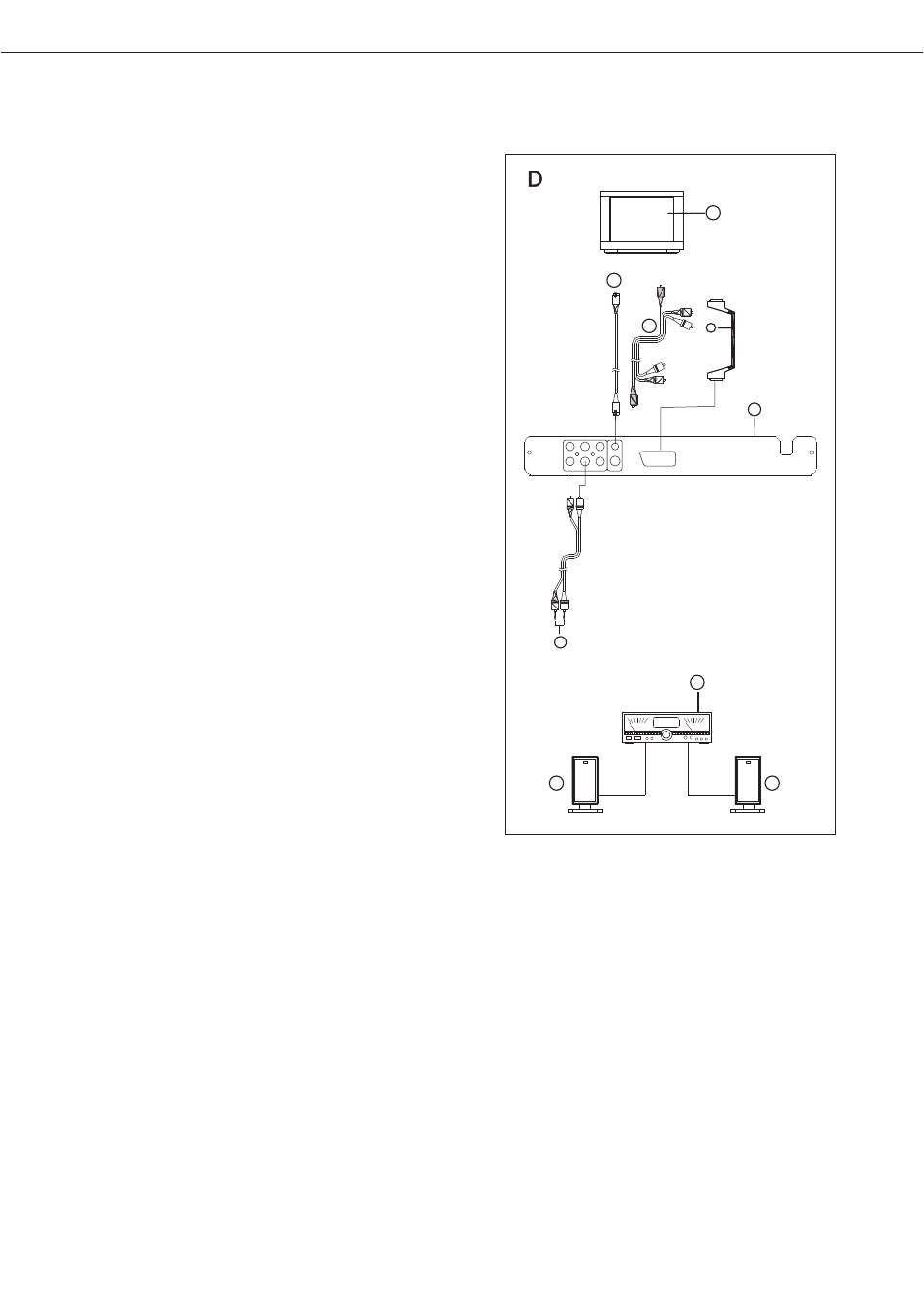

BASIC CONNECTION
D: Connecting to AV amplifier with 2-channel input
connector
1.TV set (optional)
2.DVD / CD player
3.Video / Audio cords / S-video cord (optional)
4.Amplifier with 2 channel input connectors
5.To audio input connector (L,R)
6.Left speaker
7.Right speaker
1
4
5
6 7
3
3
2
3
Y
L
Pb/Cb
R COAXIAL
Pr/Cr VIDEO
S-VIDEO SCART OUT
~100-240V 50/60Hz
