Quick Installation Guide of Acer WLAN 11b Broadband Router
2 of 7
Parts and Functions of Acer WLAN 11b Broadband Router:

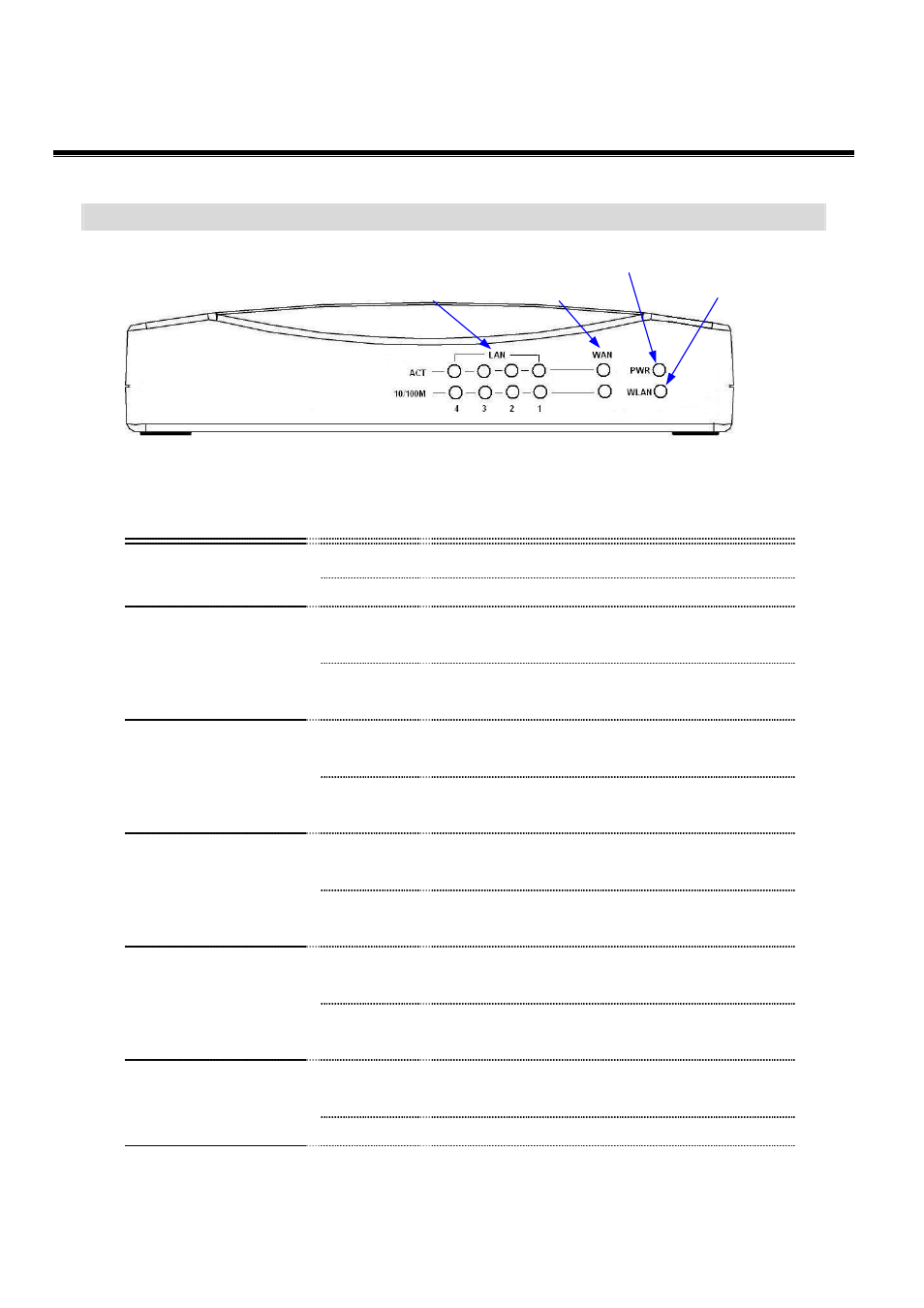

Figure 1 – Acer WLAN 11b Broadband Router Front Panel
LED Indicator
State
Description
1. Power LED
On
Acer WLAN Broadband Router is powered on.
Off
Acer WLAN Broadband Router is powered off.
2.
WLAN Activity LED
Flashing
Data is transmitting or receiving on the
antenna.
Off
No data is transmitting or receiving on the
antenna.
3. WAN ACT LED
Flashing
Data is transmitting or receiving on the WAN
interface.
Off
No data is transmitting or receiving on the
WAN interface.
4. WAN 10/100M LED
On
Connection speed is 100Mbps on WAN
interface.
Off
Connection speed is 10Mbps on WAN
interface.
5. LAN ACT LED
Flashing
Data is transmitting or receiving on the LAN
interface.
Off
No data is transmitting or receiving on the LAN
interface.
6. LAN 10/100M LED
On
Connection speed is 100Mbps on LAN
interface.
Off
Connection speed is 10Mbps on LAN interface.
WLAN LED
Power LED
WAN LED
LAN LED
