31

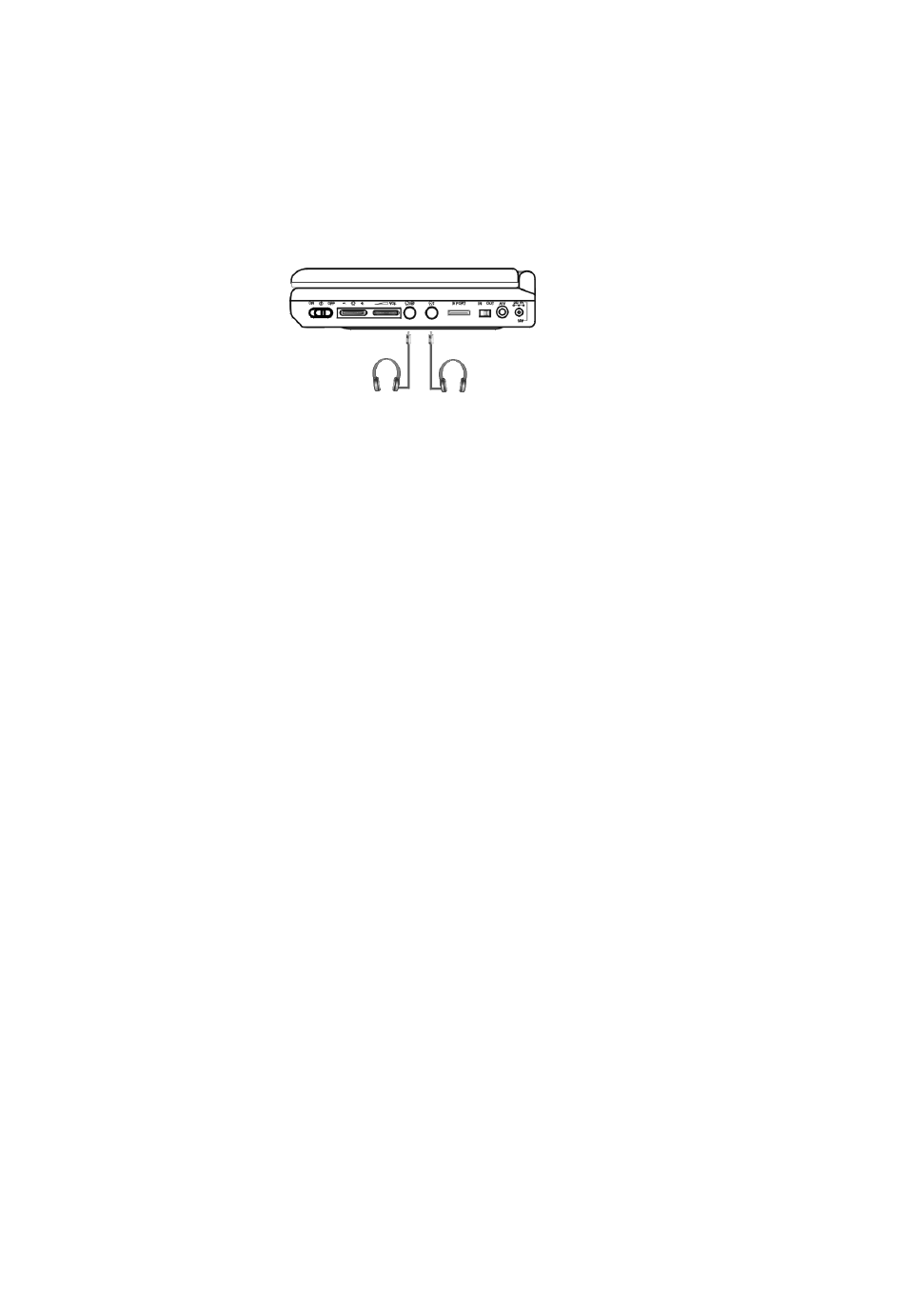

3. Connecting Optional Headphones

Simply plug the optional headphones into either Headphone 1 jack
or Headphone 2 jack on the right side of the D1718.

( Refer to

Figure 46)

Plugging into Headphone jack 1 will disable the internal speakers.

9. Specifications

Compatible DISC: DVD/CD/MP3
Signal system: NTSC
Panel size: 7 inch
Frequency response: 20 Hz to 20 kHz
Video output: 1 Vp-p/75 Ohm, unbalanced
Audio output: 1.4V

rms

/10kOhm

Audio S/N: Better than 60 dB
Dynamic range : Better than 85 dB
Laser: Semiconductor Laser, Wave Length: 650 nm/795 nm
Power source: DC 9~12V
Power consumption: 12 W
Operating temperature: 41~95°F (5~35°C)
Weight : 1.36lbs (0.615 kg)
Dimensions (W x D x H):7.87 X 5.92 X1.34 inches

(200 x 150.5 x 34 mm)

Battery Type: Ni-Mh

Figure 46
