Hardware options installation 27

4.

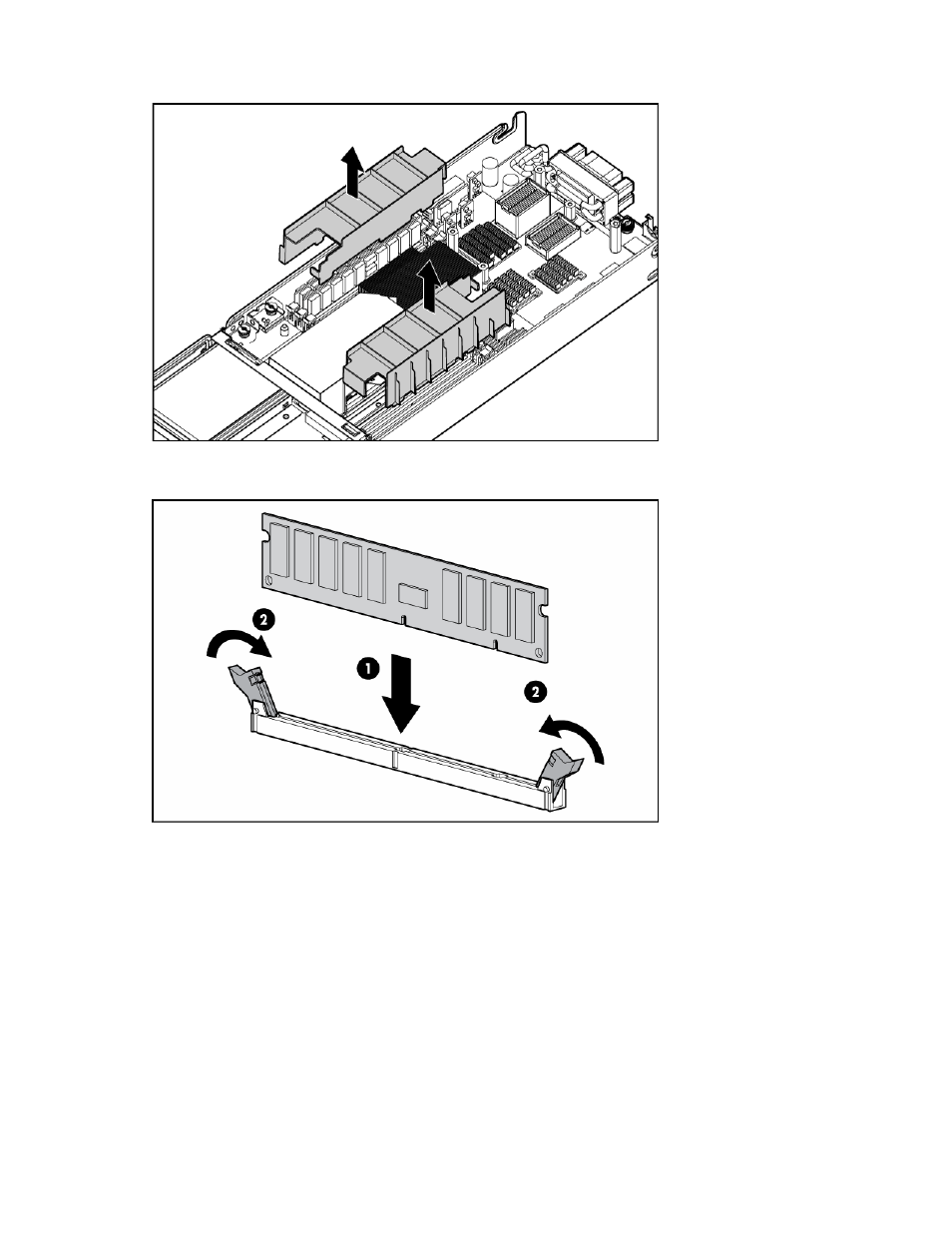

Remove the air baffles.

5.

Open the DIMM slot latches.

6.

Install the DIMM.

7.

Install the air baffles.

8.

Install the access panel (on page

14

).

9.

Install the server blade ("

Installing a server blade

" on page

17

).

Mezzanine card option

Optional mezzanine cards are classified as Type I mezzanine cards and Type II mezzanine cards. The

card type determines where it can be installed in the server blade.

•

Install Type I mezzanine cards on either mezzanine 1 connector or mezzanine 2 connector.

•

Install Type II mezzanine cards only on mezzanine 2 connector.
