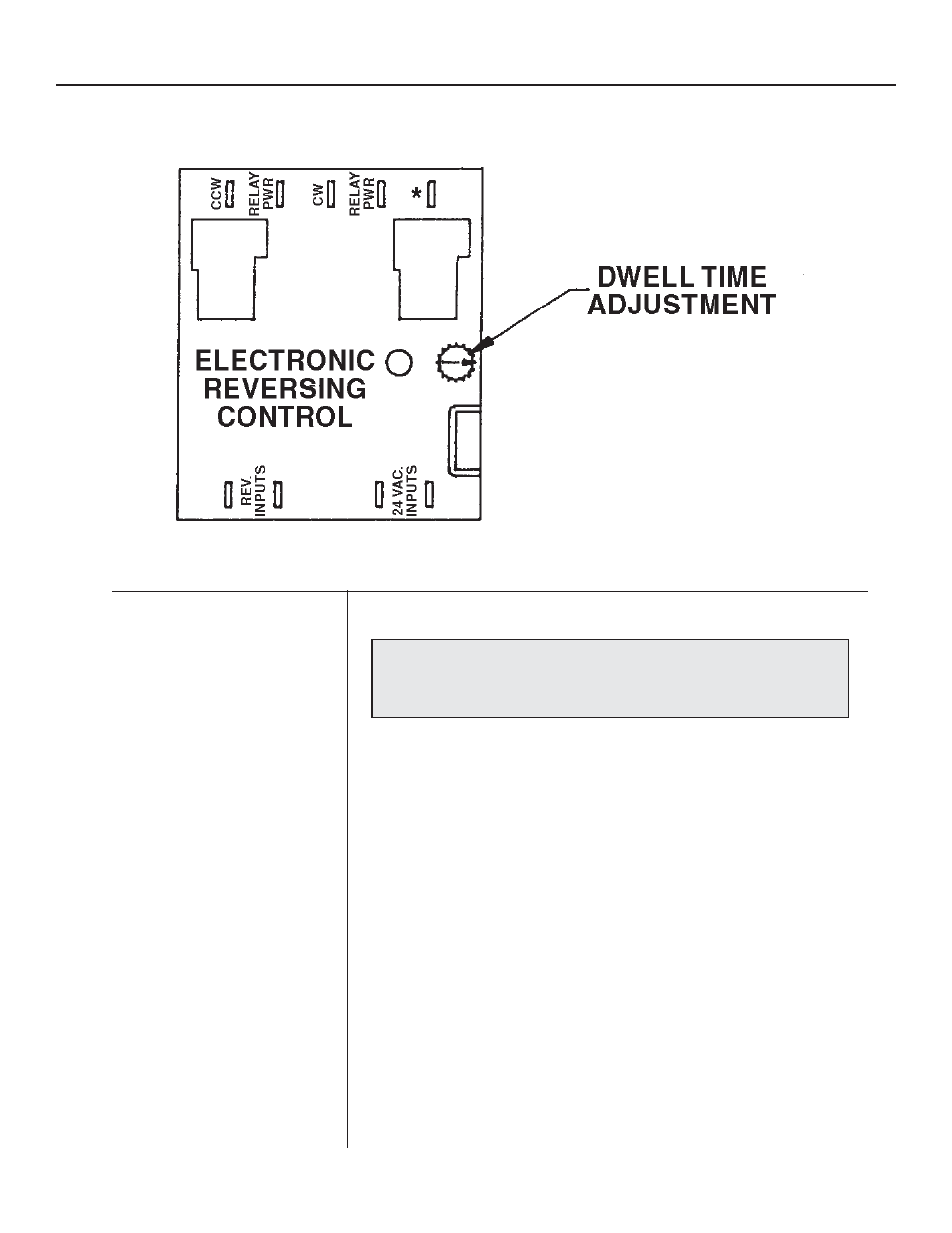

DRYERS WITH REVERSING CONTROL
Instructions
NOTE
Fan rotates counter-clockwise as viewed from back end of
motor. See arrow on motor support.
Basket rotates counter-clockwise as viewed from back end of motor.
See arrow on motor support.
Basket rotates clockwise as viewed from front of tumbler.
To change rotation of both fan and basket, reverse power leads L1
and L2.
To change rotation of fan only, reverse motor leads F1 and F2.
To change rotation of basket only, reverse motor leads B1 and B2.
INSTRUCTIONS FOR
DRYERS WITHOUT
REVERSING CONTROL
FAN AND BASKET
ROTATION
