DESCRIPTION OF DA1406WM 4

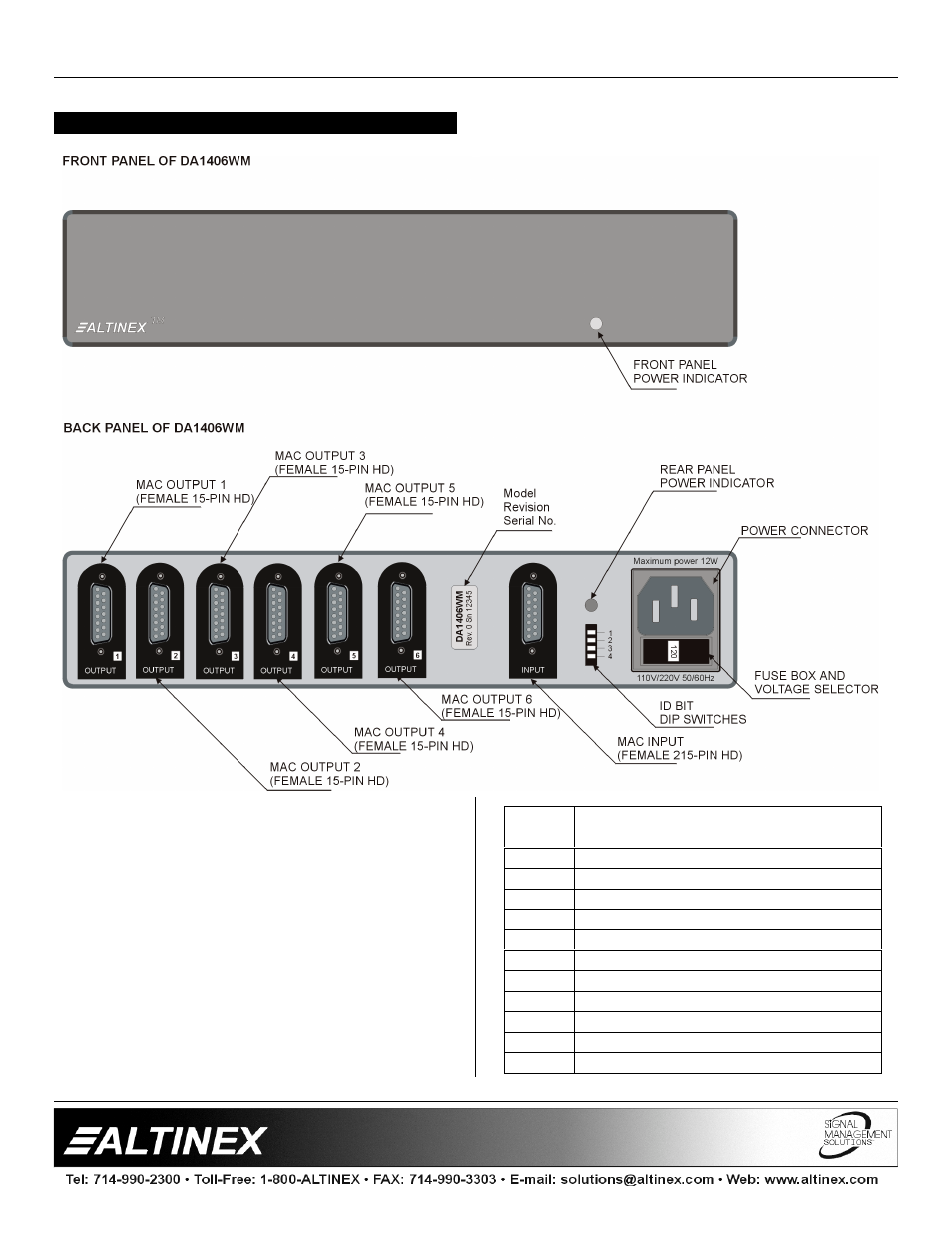

4.1 INPUT AND OUTPUTS
Using female 15-pin D (MAC-type) connectors
on all input and output connectors, the
DA1406WM can be used with readily available
MAC-type cables. If desired, the input and/or
outputs of the DA1406WM can be easily
adapted to 5-BNC connectors to allow it to be
used with RGsB, RGBS, or RGBHV signal types
as well. This requires the use of Altinex MS8100
series adapter cables (15 pin to 5 BNC).
PIN No. Input signals on 15-pin D female
connector
1 Ground
2 Red
3 Composite Sync
4 Switch 1 (Grounded when switch is ON
5 Green
6 Ground
7 Switch 2 (Grounded when switch is ON
8 No connection
9 Blue
10 Switch 3 (Grounded when switch is ON
11 Ground
