23
 BURNERS AND GRIDS
 These parts can be removed and cleaned with appropriate products.
 After cleaning, the burners and their flame distributors must be well dried and correctly replaced.
 It is very important to check that the burner flame distributor and the cap has been correctly
positioned - failure to do so can cause serious problems.
 In appliances with electric ignition keep the electrode clean so that the sparks always strike.
 Note: To avoid damage to the electric ignition do not use it when the burners are not in
place.

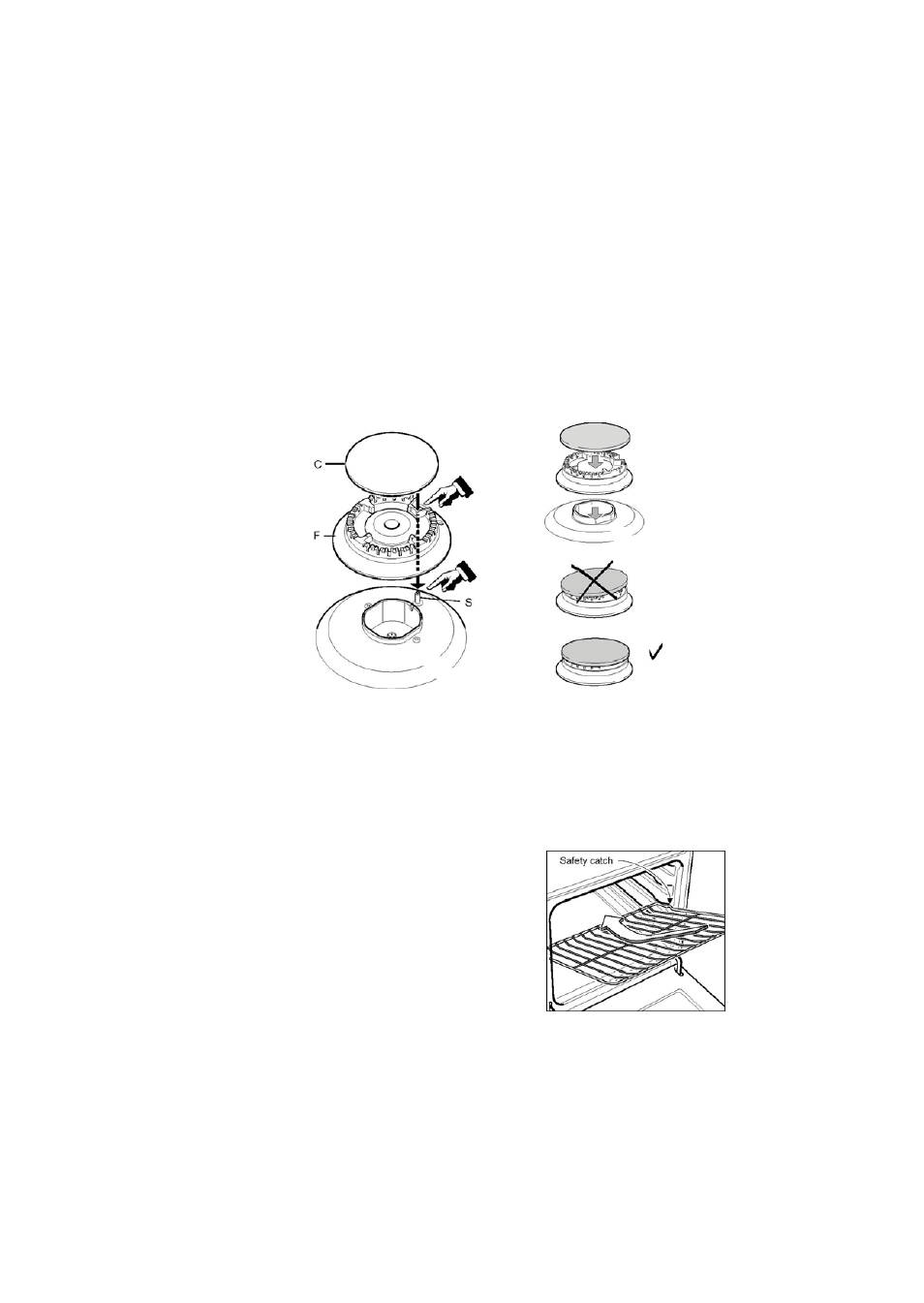

CORRECT REPLACEMENT OF THE BURNERS
It is very important to check that the burner flame spreader “F” and the cap “C” have been correctly
positioned (see figs. 20 and 21). Failure to do so can cause serious problems.
Figure 20 Figure 21
In appliances with electric ignition, check that the electrode “S” (fig. 20) is always clean to ensure
trouble-free sparking.
The ignition plug must be very carefully cleaned.
 OVEN SHELF INSTALLATION AND REMOVAL
The oven shelves are provided with a
security block to prevent accidental
extraction. They must be inserted
operating as per figure 22.
To pull them out remove shelf in the
inverse order.
Keep attention to insert the shelves cor-
rectly (see side figure).
Figure 22
