Apple Mac G4 (Power Supply Replacement) User Manual
Page 5
Power Mac G4 (Mirrored Drive Doors/FW 800) Power Supply -
5
6.
Using a small flat-blade screwdriver, gently lift up the locking tab on the lower fan
cable and disconnect the cable from the logic board.

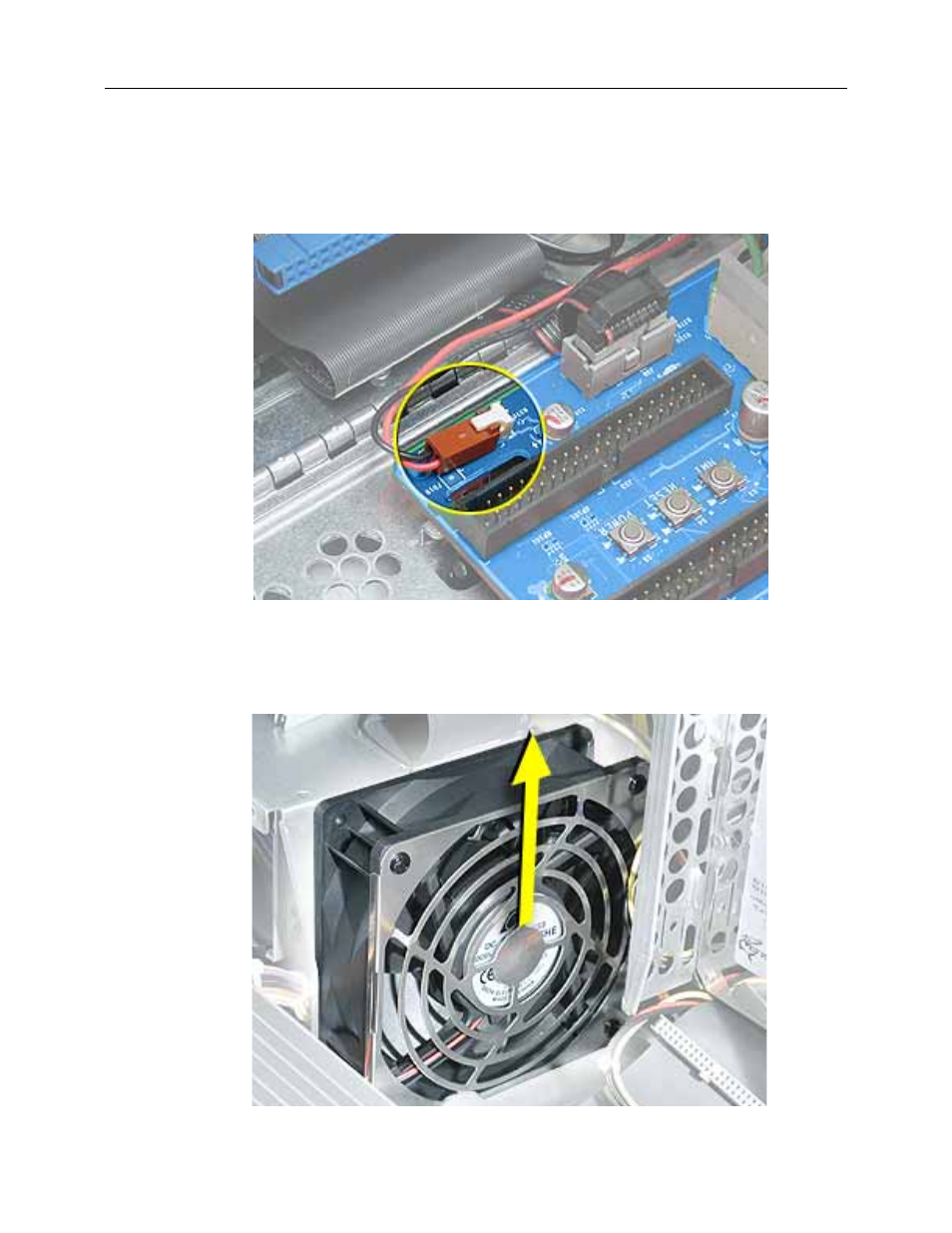

(Figure 6)
Figure 6
7.
Slide the fan straight up to disconnect it from the optical drive shelf, and remove the
fan from the computer.
(Figure 7)
Figure 7
