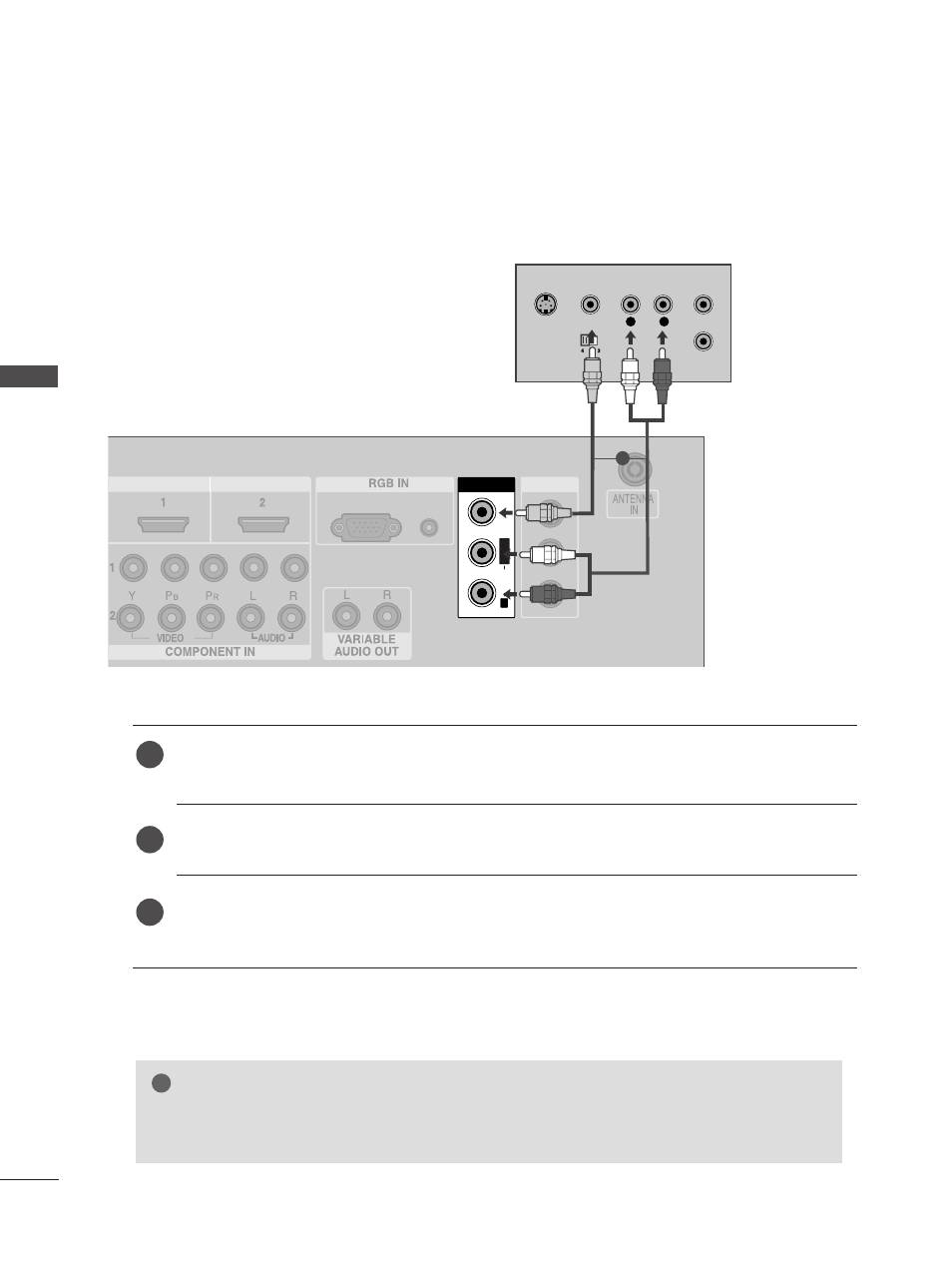

Connecting with a RCA cable
AV IN 1 AV IN 1 AV OUT AV OUT
L/MONO
AUDIO
(RGB/DVI) RGB(PC)
HDMI IN HDMI DVI IN
HDMI IN HDMI DVI IN
AV IN 2
L/
MONO
R
AUDIO
VIDEO
S-VIDEO
AV IN 1
L R S-VIDEO VIDEO
OUTPUT
SWITCH
ANT IN
ANT OUT
L/L/
MONOMONO
R
AUDIOAUDIO
VIDEOVIDEO
Connect the A AU UD DIIO O/V VIID DE EO O jacks between TV and VCR. Match the jack colours (Video = yellow,
Audio Left = white, and Audio Right = red)
Insert a video tape into the VCR and press PLAY on the VCR. (Refer to the VCR owner’s manual.)
Select AV1 input source using the IIN NP PU UT T button on the remote control.
If connected to A AV V IIN N2 2, select AV2 input source.
1
2
3
G G If you have a mono VCR, connect the audio cable from the VCR to the A AU UD DIIO O LL//M MO ON NO O jack
of the TV.
NOTE !
1
22
