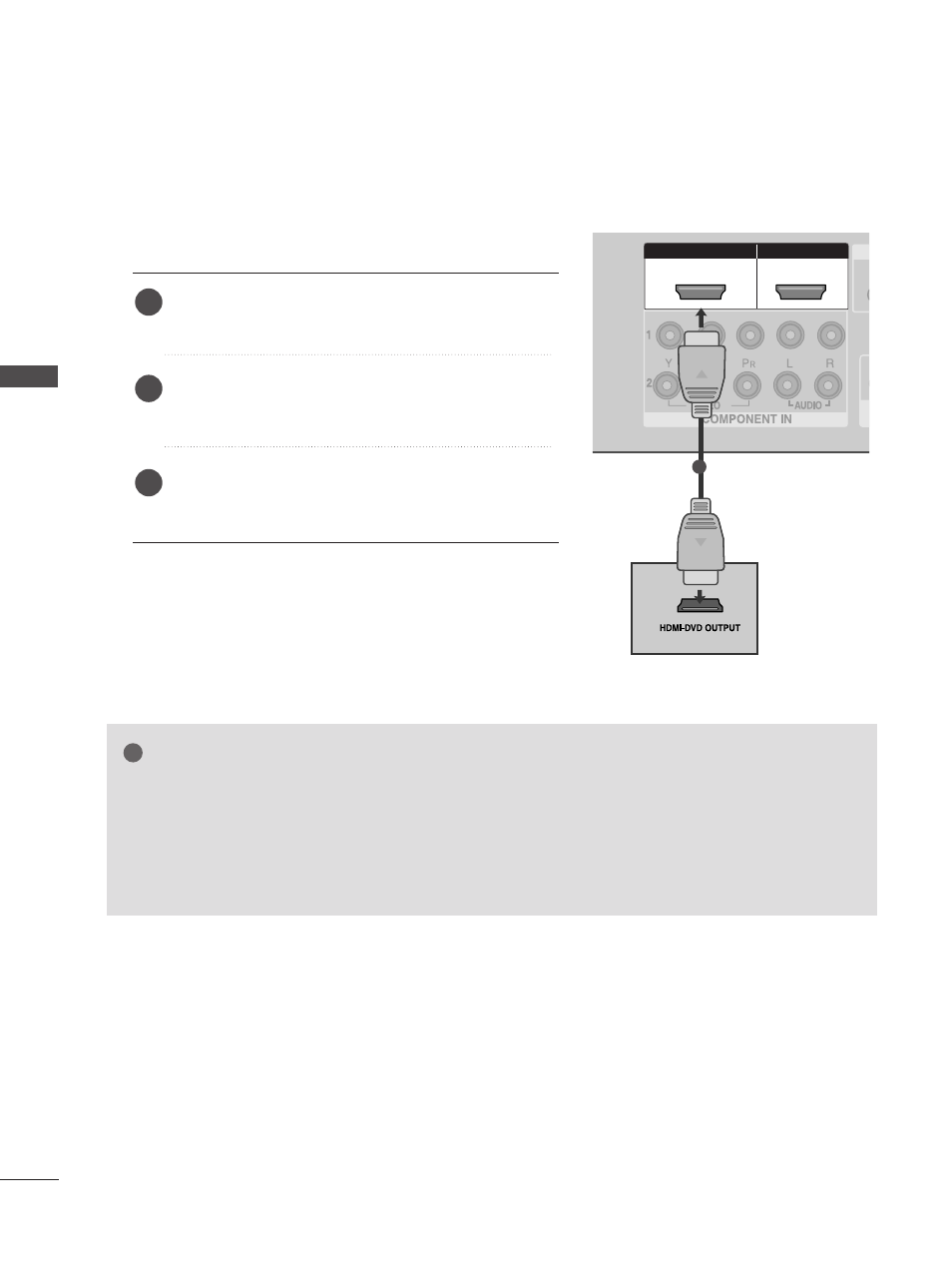

Connecting a set-top box with an HDMI cable
Connect the HDMI output of the digital set-top box to
the H
HD
DM
MII//D
DV
VII IIN
N 1
1 or H
HD
DM
MII IIN
N 2
2 jack on the TV.
Select HDMI1 or HDMI2 input source using the
IIN
NP
PU
UT
T button on the remote control.
Turn on the digital set-top box.
(Refer to the owner’s manual for the digital set-top box.)
2
3
1
G
G
TV can receive the video and audio signal simultaneously with using a HDMI cable.
G
G
If the digital set-top box supports Auto HDMI function, the output resolution of the source device will
be automatically TV to 1280x720p.
G
G
If the digital set-top box player does not support Auto HDMI, you need to TV the output resolution
appropriately.
To get the best picture quality, adjust the output resolution of the source device to 1280x720p.
