Owner’s Manual 11
ENGLISH
Installation
Installation

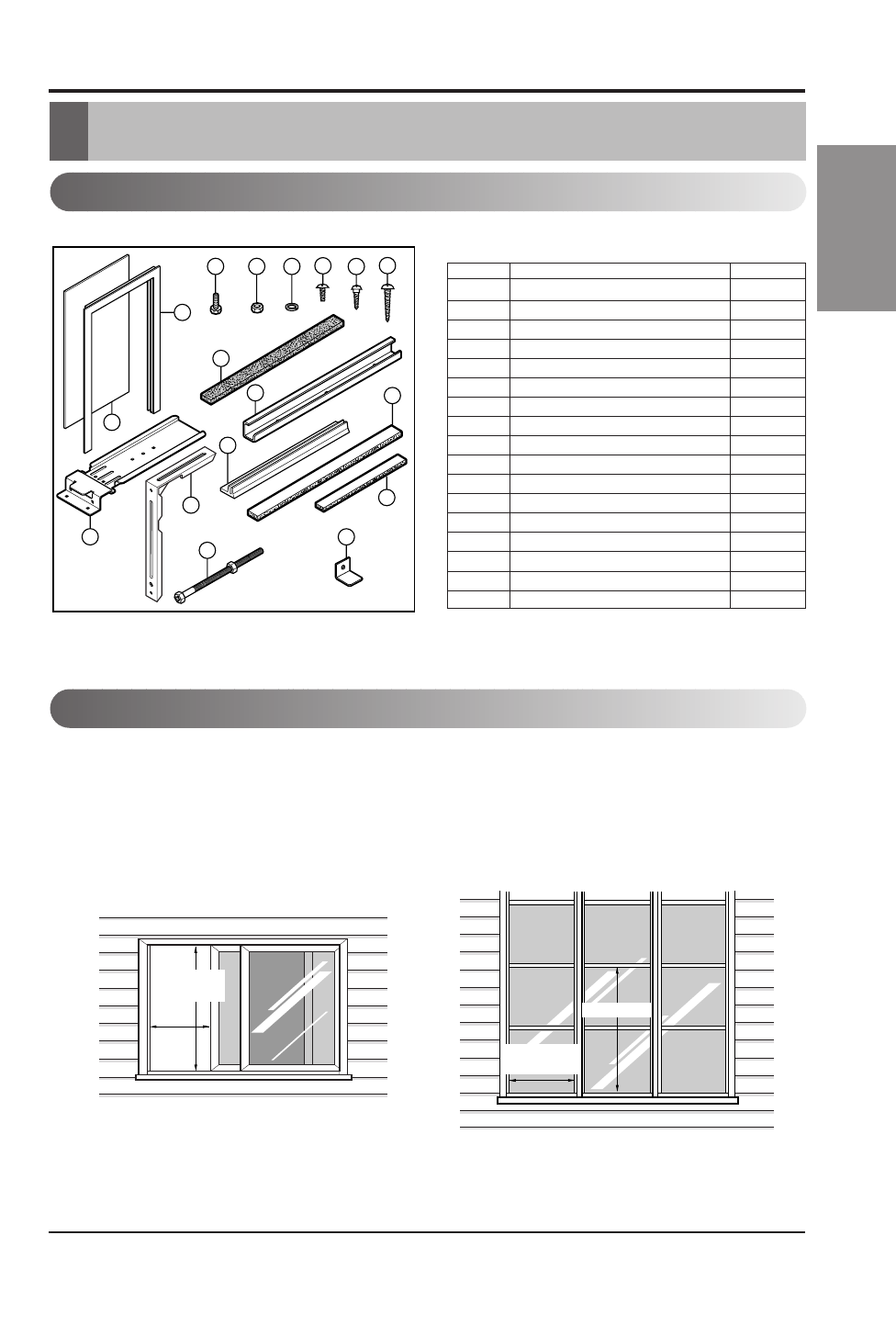

Window Requirements
Installation Kits Contents
8
7
9 10
3
12
11
16 17
1
6
13
15
4
14
2
5
21" min.
40 1 /
2
" max.
15 1 /
2
"
min.
21 1 /
2
" min.
15 1 /
2
" min.
16 1 /
2
" max.
Horizontal sliding window Casement window
NO. NAME OF PARTS QTY
1 Curtain 1
2 Curtain Frame 1
3 Upper Guide 1
4 Side Guide 2
5 Support Bracket 1
6 Bracket 1
7 Leveling Bolt & Nut 1
8 Bolt 2
9 Nut 2
10 Washer 2
11 Side Guide seal 1
12 Foam Seal Strip 1
13 Window Track Seal 1
14 Window Locking Bracket 1
15 Screw (Type A) 9
16 Screw (Type B) 3
17 Screw (Type C) 8
1. These instructions are for a horizontal sliding
or a casement window.
2. The electrical outlet must be within reach of
the power cord.
For installation in a casement window, the
window frame assembly and the side of the
building must be adequate to support the weight
of the air conditioner.
