Installation

Type C

Screw(Type A)

Power

Cord

Foam-Strip

Window

Locking Bracket

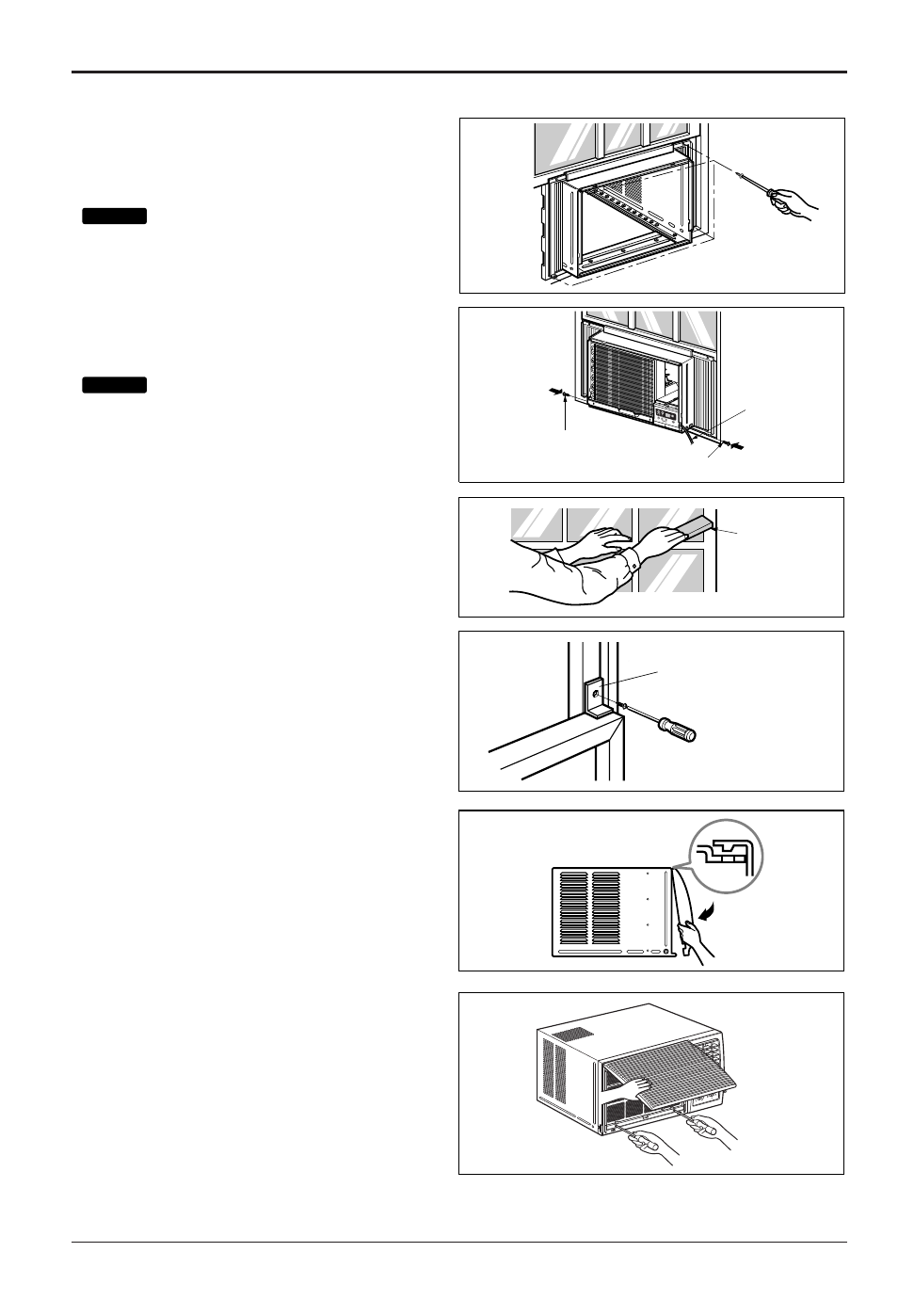

9. Attach each Frame

Curtain the window sash

using screws (Type C).(See Fig

ure 6)

: DO NOT DRILL A HOLE IN THE

BOTTOM PAN. The unit is designed to operate

with approximately 1/2" of water in bottom pan.

10. Slide the unit into the cabinet.(See Fig

ure 7)

: For security purpose, reinstall

screws(Type A) at cabinet's sides.

11. Cut the Foam-Strip to the proper length

and insert between the upper window sash
and the lower window sash.
(See Fig

ure 8)

12. Attach the

Window Locking Bracket with

Type C screw. (See Figure 9)

13. Attach the front grille to the cabinet by

inserting the tabs on the grille into the tabs
on the front of the cabinet. Push the grille
in until it snaps into place. (See Fig

ure 10)

14. Lift the inlet grille and secure it with a

Type

A screw through the front grille.
(See Fig

ure 11)

15.

Window installation of room air conditioner
is now completed. See ELECTRICAL DATA
for attaching power cord to electrical outlet.

Fig

ure 6

Fig

ure 7

Fig

ure 8

Fig

ure 9

Fig

ure 10

Fig

ure 11
