MAKING CONNECTIONS
PC
DVI-D connection

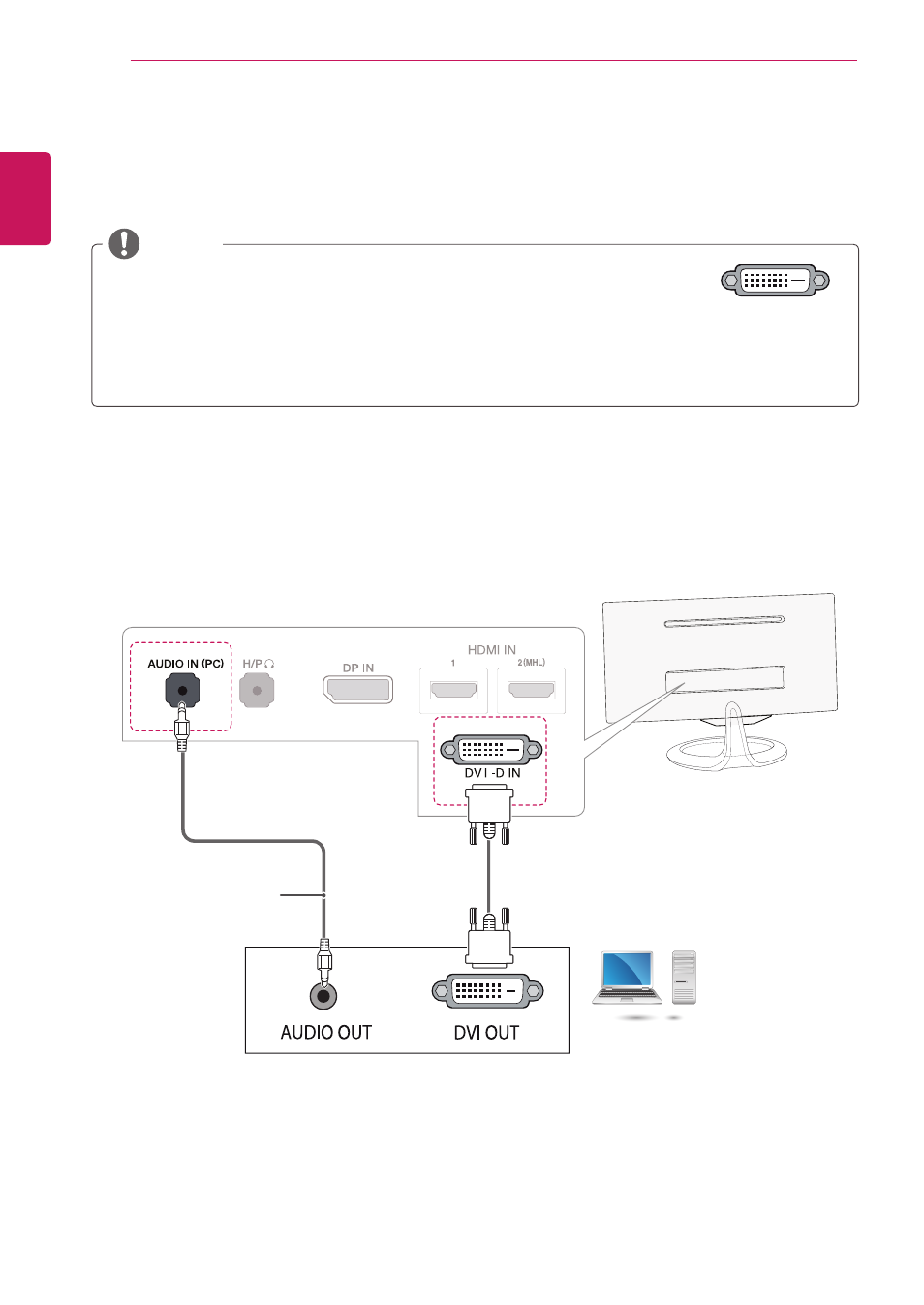

Transmits the digital video signal from your PC to the TV. Connect the PC and an TV with an DVI-D dual
cable as shown the following illustrations. To transmit an audio signal, connect an optional audio cable.
y
y
Please use the DVI-D dual cable provided.
y
y
If you do not use DVI-D dual cable, this may result in distortion on the screen.
y
y
If you do not use an optional external speaker, connect the PC to the TV with the optional audio cable.
y
y
Using a DVI to HDMI cable may cause compatibility issues.
y
y
Connect the signal input cable and tighten it by turning the screws clockwise.
y
y
Press the INPUT button on the remote control to select to DVI.
NOTE
(Not Provided)
DVI-D
᯦ಆ
HDMI
᯦ಆ
AUDIO IN(PC)
༉י
1
2(MHL)
DP
᯦ಆ
H/P
USB
᯦ಆ
5 V 0.5 A
DC-IN
(19 V )
