Installing the Outdoor Unit
The outdoor unit can be secured to the pole using one of the following options:
♦ Special brackets sets (supplied with each unit). There are two pairs of threaded
holes on the units, allowing the use of the brackets with various pole widths.
♦ Metal bands (9/16” wide, minimum 12” long).
Figure 2-2 shows the locations of the holes and grooves on the back of the unit.
Figure 2-3 illustrates the method of installing a unit on a pole using the supplied
brackets.
NOTE:
Make sure to install the unit with the bottom panel (the panel with the signal strength bar and LEDs)
facing downward.

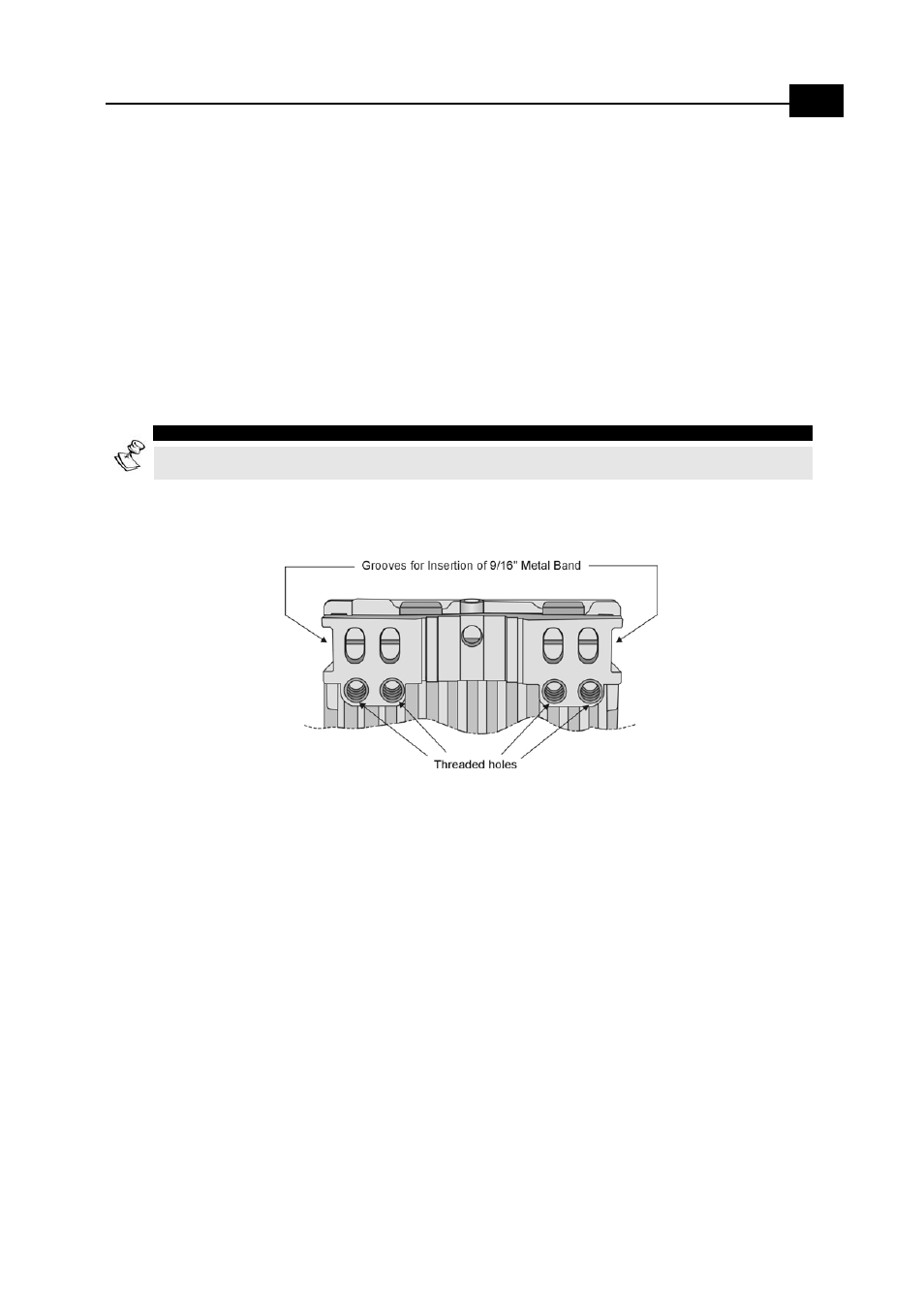

Figure 2-2: Installation Holes/Grooves
