Page 20: External eq uipment setup
EXTERNAL
EQ
UIPMENT
SETUP
18
EXTERNAL EQUIPMENT SETUP

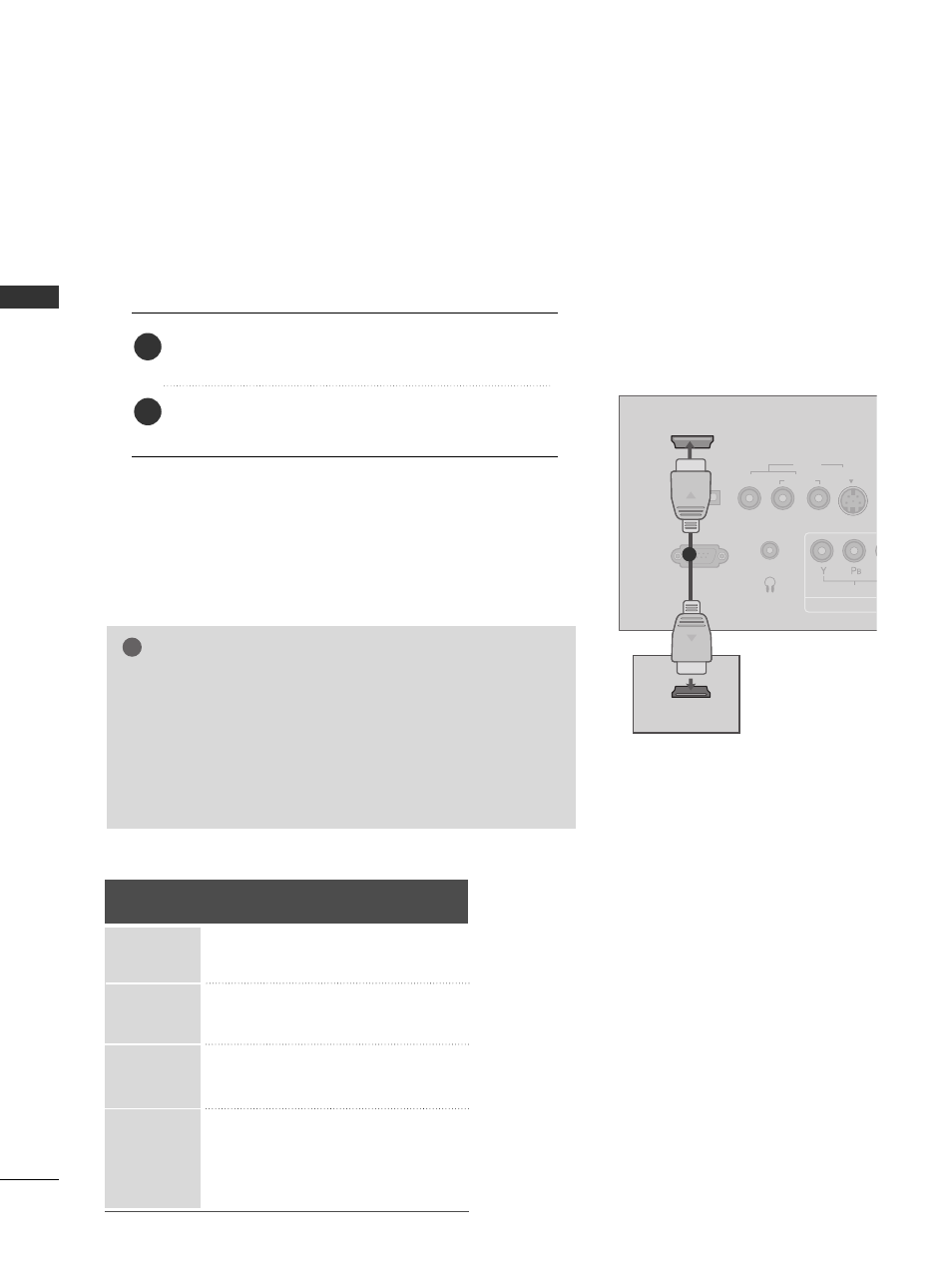

When connecting HDMI cable
Connect the digital set-top box to H
HD
DM
MII//D
DV
VII IIN
N
jack on the set.
No separated audio connection is necessary.
HDMI supports both audio and video.
1. How to connect
2. How to use
■
Turn on the digital set-top box.
(Refer to the owner’s manual for the digital set-top box.)
■
Select H
H D
D M
M II input source by using the II N
N PP U
U T
T button
on the remote control.
2
1
VIDEO
AUDIO
L(MONO)
R
S-VIDEO
A
C
RS-232C IN
(SERVICE ONLY)
SERVICE
ONLY
HDMI/DVI IN
COMP
AV IN
H/P
VIDEO
HDMI-DTV OUTPUT
1
G
G
When connected, the TV will tell a connected device what
resolution it supports and the resolution it prefers. If the
device supports this Auto HDMI function, the player output
resolution will be automatically set to 720p.
G
G
If the device does not support Auto HDMI, you need to set
the output resolution appropriately.
NOTE
!
HDMI/DVI-DTV mode
Horizontal
Vertical
Frequency(KHz)
Frequency(Hz)
31.469
59.94
31.500
60.00
44.96
59.94
45.00
60.00
33.72
59.94
33.75
60.00
27.00
24.00
33.75
30.00
67.43
59.94
67.50
60.00
Resolution
720x480p
1280x720p
1920x1080i
1920x1080p
