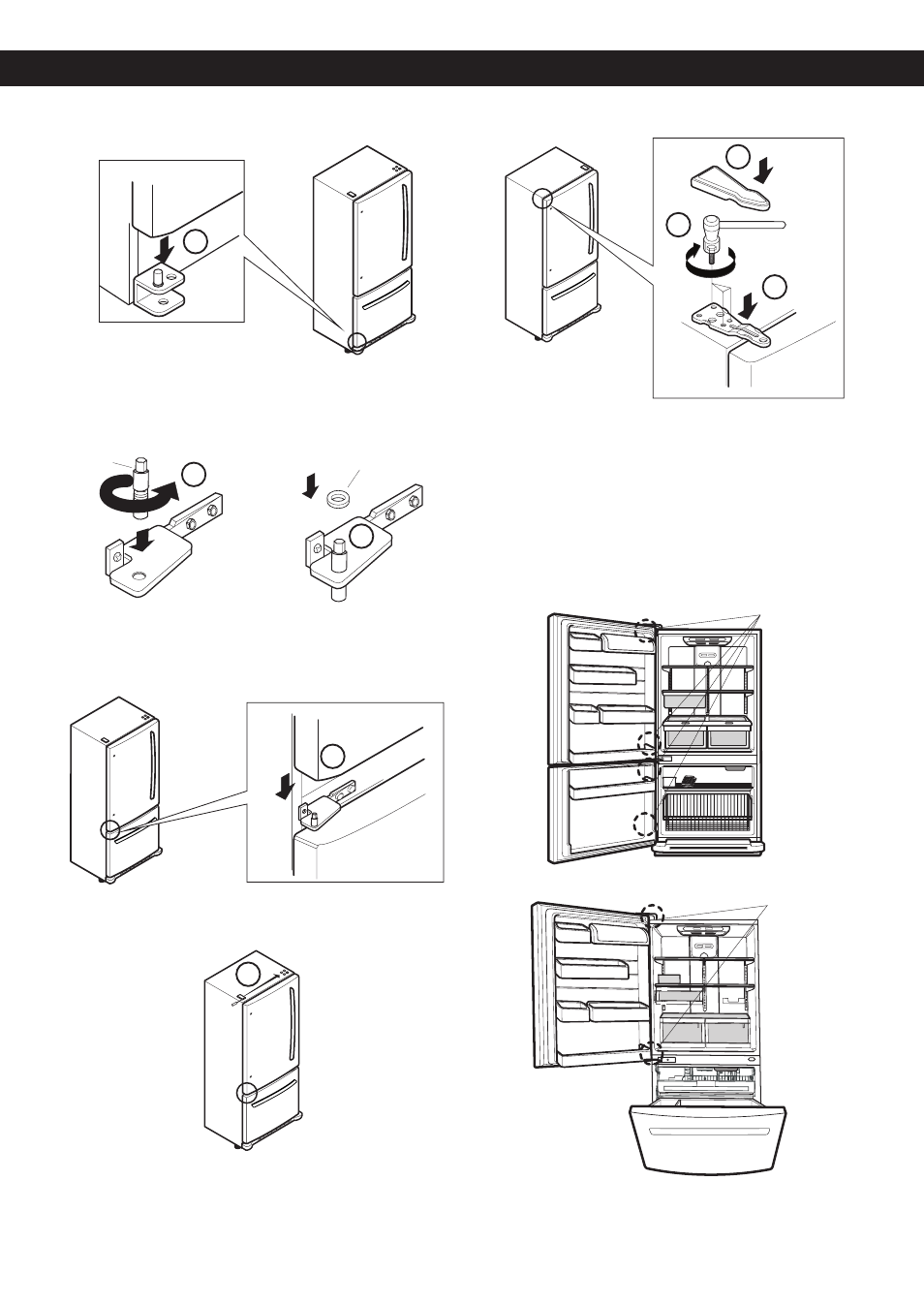

• Take the freezer door and align the pivot holes up with
the bolt holes and assemble them (18).
• Insert the pin into the hinge (19). (Ensure that it is
between the pivot and the freezer door).
• Replace the washer over the pin (20).
Pin Washer
6. Installing the Refrigerator Door
• Insert the door over the axis of the pin (1).
• Remove the cover (2) and place on the opposite side.
• Install the hinge (3), assemble the three screws (4)
and replace the hinge cover (5).
• Check to make sure that both doors close correctly.
AFTER COMPLETING INSTALLATION
Make sure that the corners of the door seals are not
folded over. To ensure a good seal, apply a little silicon
grease on them.
Corners
Corners
18
19
20
1
2
3
5
4
REFRIGERATOR INSTALLATION REFRIGERATOR INSTALLATION
