HDMI Connection

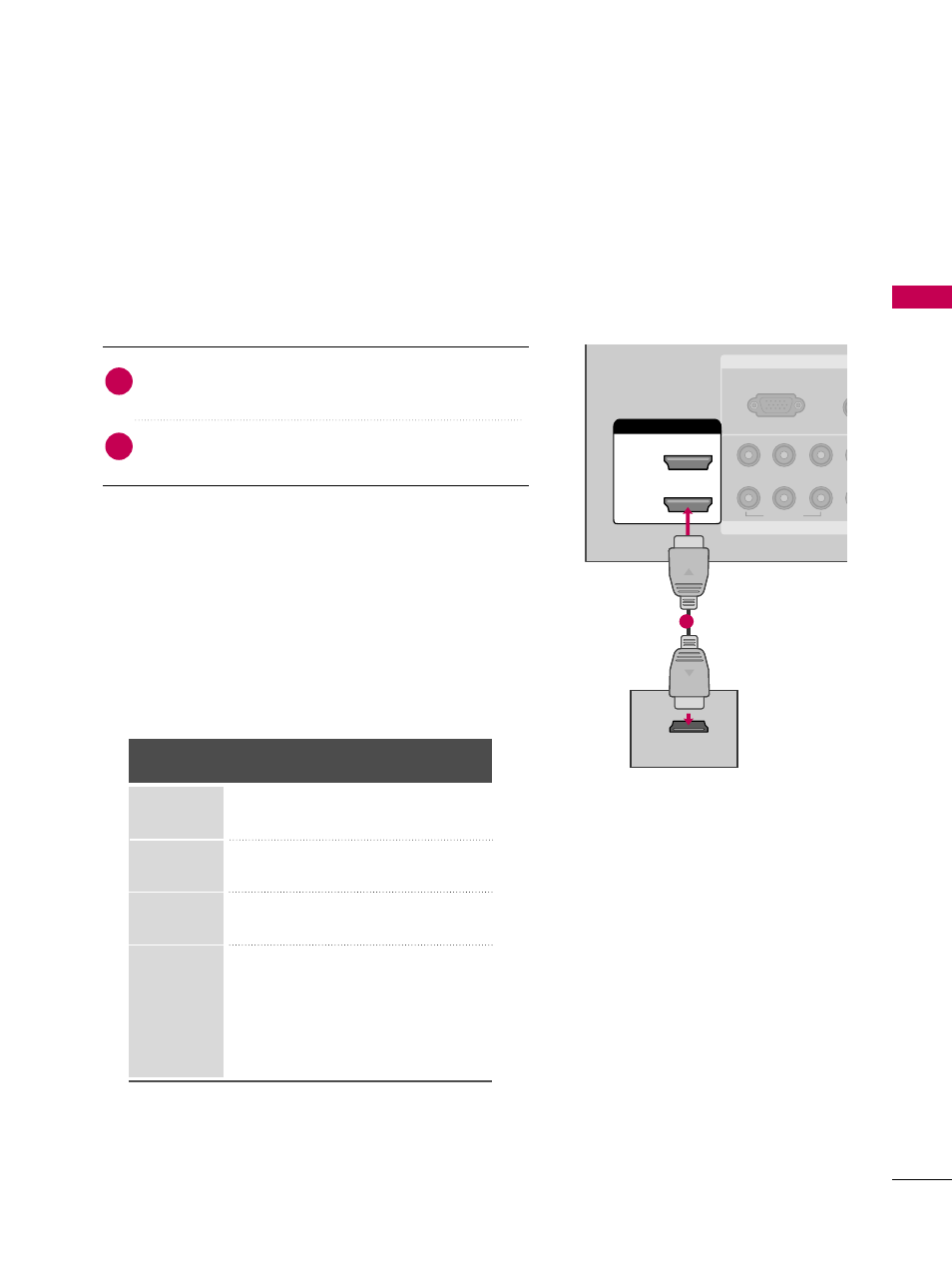

Connect the digital set-top box to H HD DM MII//D DV VII IIN N1 1,
2 2, or 3 3* jack on the TV.
No separate audio connection is necessary.
HDMI supports both audio and video.
1. How to connect
2. How to use
■ Turn on the digital set-top box.
(Refer to the owner’s manual for the digital set-top box.)
■ Select the H HD DM MII1 1 , H HD DM MII2 2 , or H HD DM MII3 3 * input source on the
TV using the IIN NPPU UT T button on the remote control.
2
1
HDMI-DTV
Horizontal Vertical
Frequency(KHz) Frequency(Hz)
31.47 59.94
31.50 60.00
44.96 59.94
45.00 60.00
33.72 59.94
33.75 60.00
26.97 23.976
27.00 24.00
33.71 29.97
33.75 30.00
67.432 59.939
67.50 60.00
Resolution
720x480p
1280x720p
1920x1080i
1920x1080p
RGB IN
COMPONENT
A
(RG
RGB(PC)
1
2
VIDEO
Y P B P R
HDMI/DVI IN
2
1
HDMI-DTV OUTPUT
1
* HDMI 3: Except 42LG50DC
