OWNER'S MANUAL
Specifications are subject to change without notice
www.AtlasSound.com
1601 JACK MCKAY BOULEVARD ENNIS, TEXAS 75119 U.S.A. • TELEPHONE: (800) 876-3333 • FAX: (800) 765-3435
© 2007 ATLAS SOUND LP Printed in U.S.A. ATS002915 RevA 9/07 7
AA-PPRC
RIGHT + NC
RIGHT + NO
RIGHT - NC
RIGHT - NO
LEFT + NC
LEFT + NO
LEFT - NC
LEFT - NO
RIGHT + OUT
RIGHT - OUT
LEFT + OUT
LEFT - OUT
RELAY
TRIGGER
CIRCUIT
RECOVER
ADJUST
CIRCUIT
VOLTAGE
SENCE
CIRCUIT
CONTACT
CLOSURE
CIRCUIT
LINE LEVEL
SENCE
CIRCUIT
SPKR LEVEL
SENCE
CIRCUIT
5 - 24VDC
TRIGGER CONTACT
CLOSURE LINE LEVEL
20mV - 2V
SPEAKER LEVEL
3V - 100V
1 - 30 SEC
- + - +

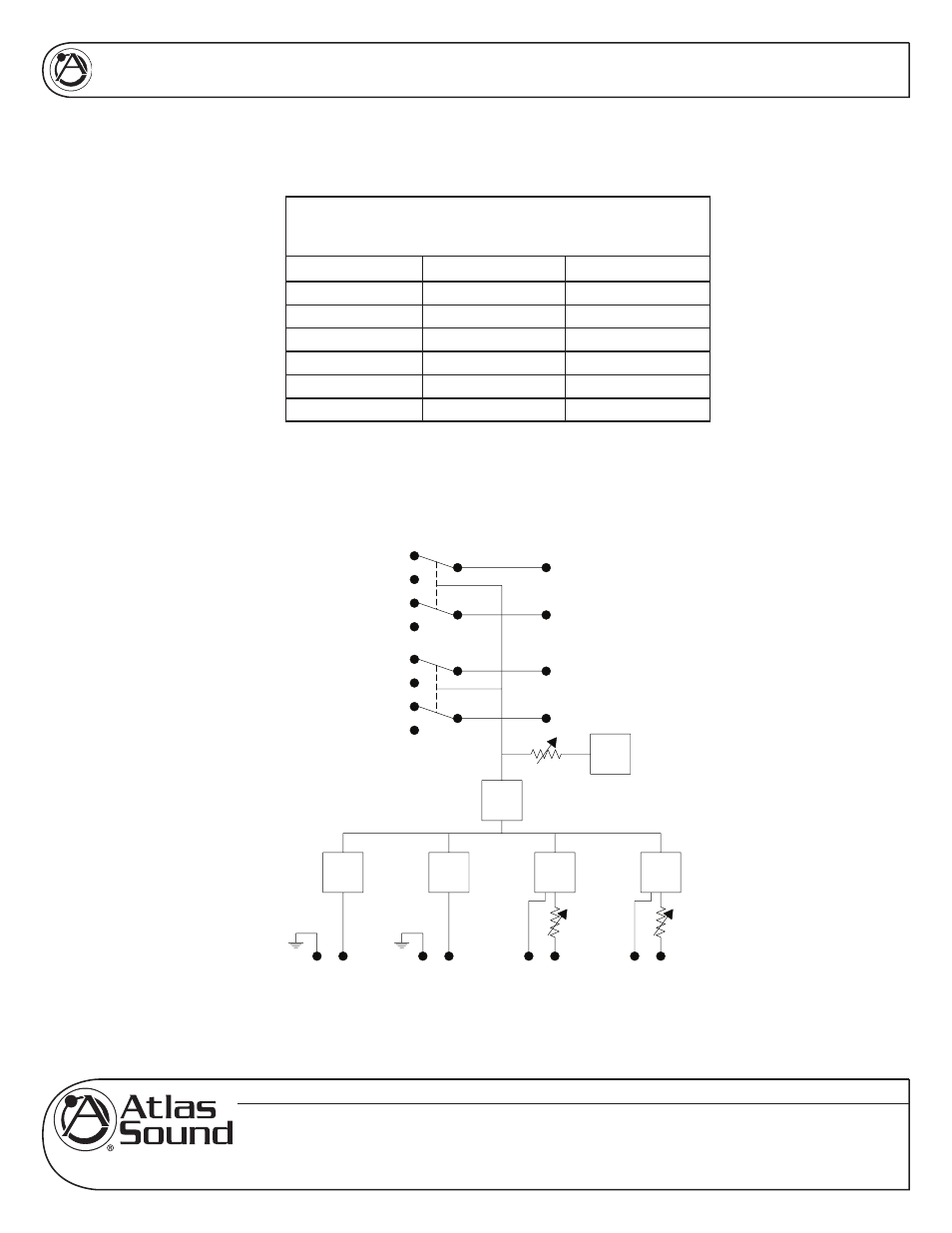

AA-PPRC LOAD RATING
5 Amps. Max Per Channel
Load Watts Amps
100V (20 Ω) 500 W 5 Amps.
70V (14 Ω) 350 W 5 Amps.
25V (5 Ω) 125 W 5 Amps.
8 Ω 200 W 5 Amps.
4 Ω 100 W 5 Amps.
2 Ω 50 W 5 Amps.
POWER HANDLING CHART
INSTALLATION DIAGRAM
From Amplifier
To Speaker Load
