EXTERNAL
EQ
UIPMENT
SETUP
21
EXTERNAL EQUIPMENT SETUP
HD RECEIVER SETUP
This TV can receive Digital Over-the-air/Cable signals without an external digital set-top box. However, if you do

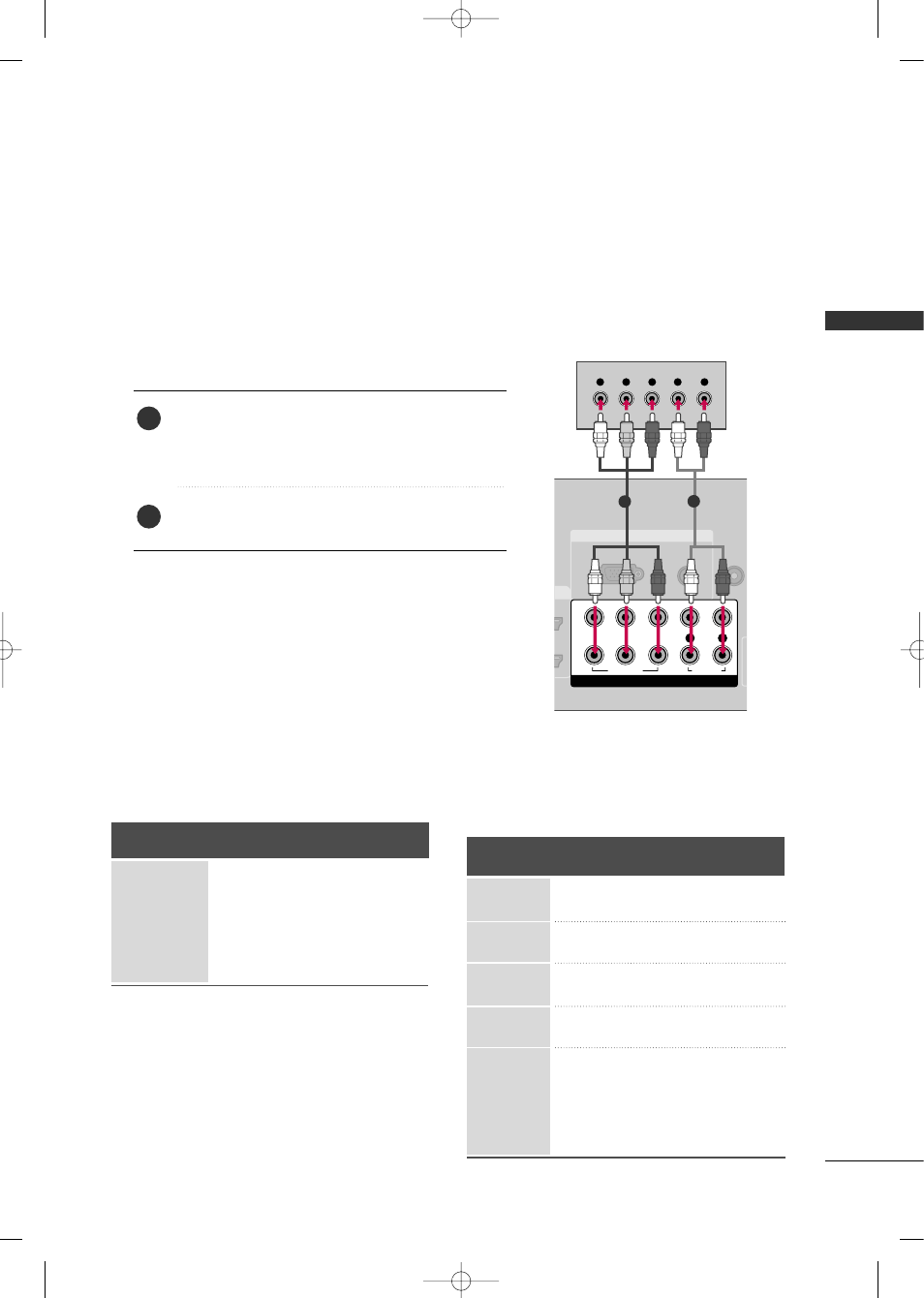

receive digital signals from a digital set-top box or other digital external device, refer to the figure as shown below.
Component Connection
1. How to connect
Connect the video outputs (Y, P B , P R
) of the digital set-
top box to the C CO OM MPPO ON NEEN NTT IIN N VVIID DEEO O 1 1 jacks on
the TV. Match the jack colors (Y = green, P B = blue, and
P R = red).
Connect the audio output of the digital set-top box to
the C
CO OM MPPO ON NEEN NTT IIN N AAU UD DIIO O 1 1 jacks on the TV.
2. How to use
■ Turn on the digital set-top box.
(Refer to the owner’s manual for the digital set-top box. operation)
■ Select the C Coom mppoonneenntt 1 1 input source on the TV using
the IIN NPPU UTT button on the remote control.
■ If connected to C CO OM MPPO ON NEEN NTT IIN N2 2 input, select the
C Coom mppoonneenntt 2 2 input source on the TV.
■ To prevent the equipment damage, never plug in any power cords until you have finished connecting all equipment.
■ This part of EXTERNAL EQUIPMENT SETUP mainly use picture for 37/42/47/52LG50.
Y, C B/ P B , C R/ P R
Supported Resolutions
Horizontal Vertical
Frequency(KHz) Frequency(Hz)
15.73 59.94
15.73 60.00
31.47 59.94
31.50 60.00
44.96 59.94
45.00 60.00
33.72 59.94
33.75 60.00
26.97 23.976
27.00 24.00
33.71 29.97
33.75 30.00
67.432 59.94
67.50 60.00
Resolution
720x480i
720x480p
1280x720p
1920x1080i
1920x1080p
Signal
480i
480p
720p
1080i
1080p
Component
Yes
Yes
Yes
Yes
Yes
HDMI
No
Yes
Yes
Yes
Yes
2
1
RGB IN
AUDIO
(RGB/DVI)
RGB(PC) REMOT
CONTROL
(
COMPONENT IN
1
2
VIDEO
L Y P B P R R
AUDIO
Y L R P B P R
1 2
i.e) 37/42/47/52LG50
