1.6 Using Wireless Access Point
1.6.1 The Front LEDs
The table below shows the LED Indicator of the Wireless
Multi-Function Access Point.
LED Meaning
POWER This indicator lights green when the
Access Point receives power. Otherwise, it
turns off.
LAN The indicator lights green when the LAN
port is connected to a 100Mbps Ethernet
station, the indicator blinks green while
transmitting or receiving data on the
100Mbps Ethernet network.
WLAN The indicator always blinks green while the
wireless AP is always broadcasting
packets.

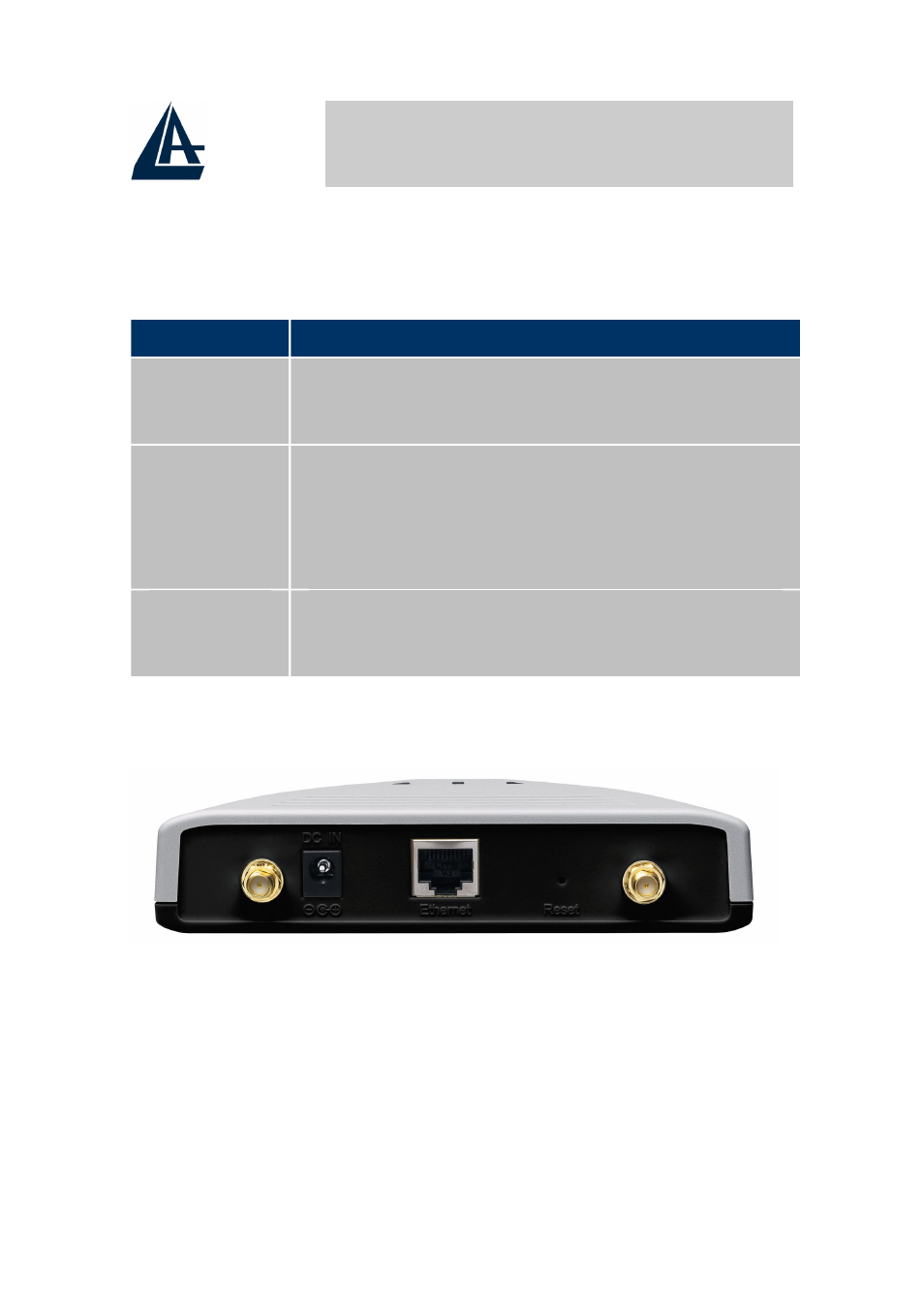

1.6.2 The Rear Ports
The figure below shows the rear panel of the Wireless Multi-
Function Access Point.
