www.avenview.com 14

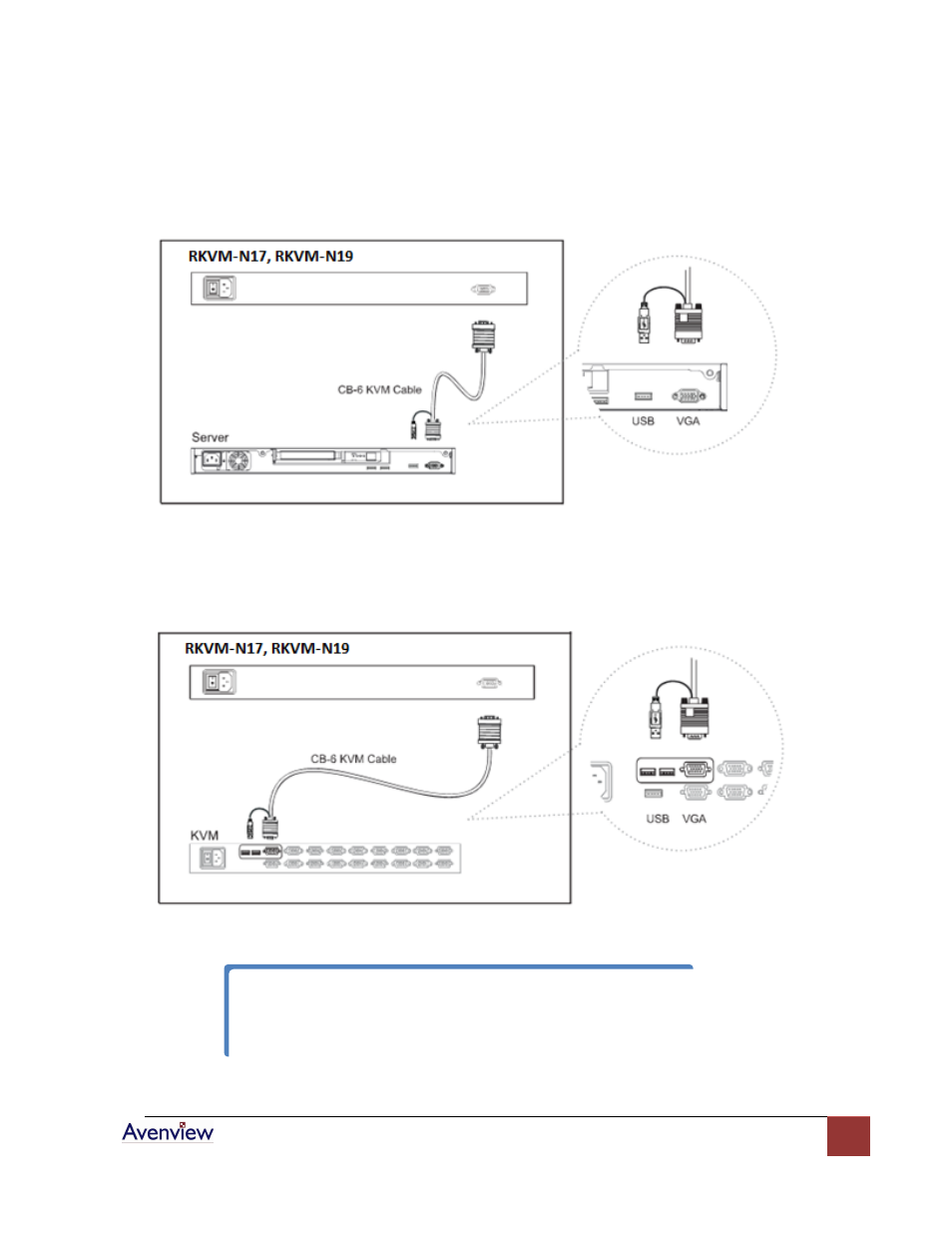

1.14 Connect to Server via USB Interface
Figure 10: Example of connecting CD-6 2-in-1 USB KVM cable to server via USB Interface
1.15 Connect to KVM via USB Interface
Figure 11: Example of connecting CD-6 2-in-1 USB KVM cable to KVM via USB Interface
RKVM-N17-SD, RKVM-N19-SD Series are external power versions.
The above connection is only for the LCD keyboard without KVM switch built-in
For the LCD keyboard drawer with KVM switch built-in, please refer to KVM switch user
manual.
