Installing an expansion card

Installing a DIMM

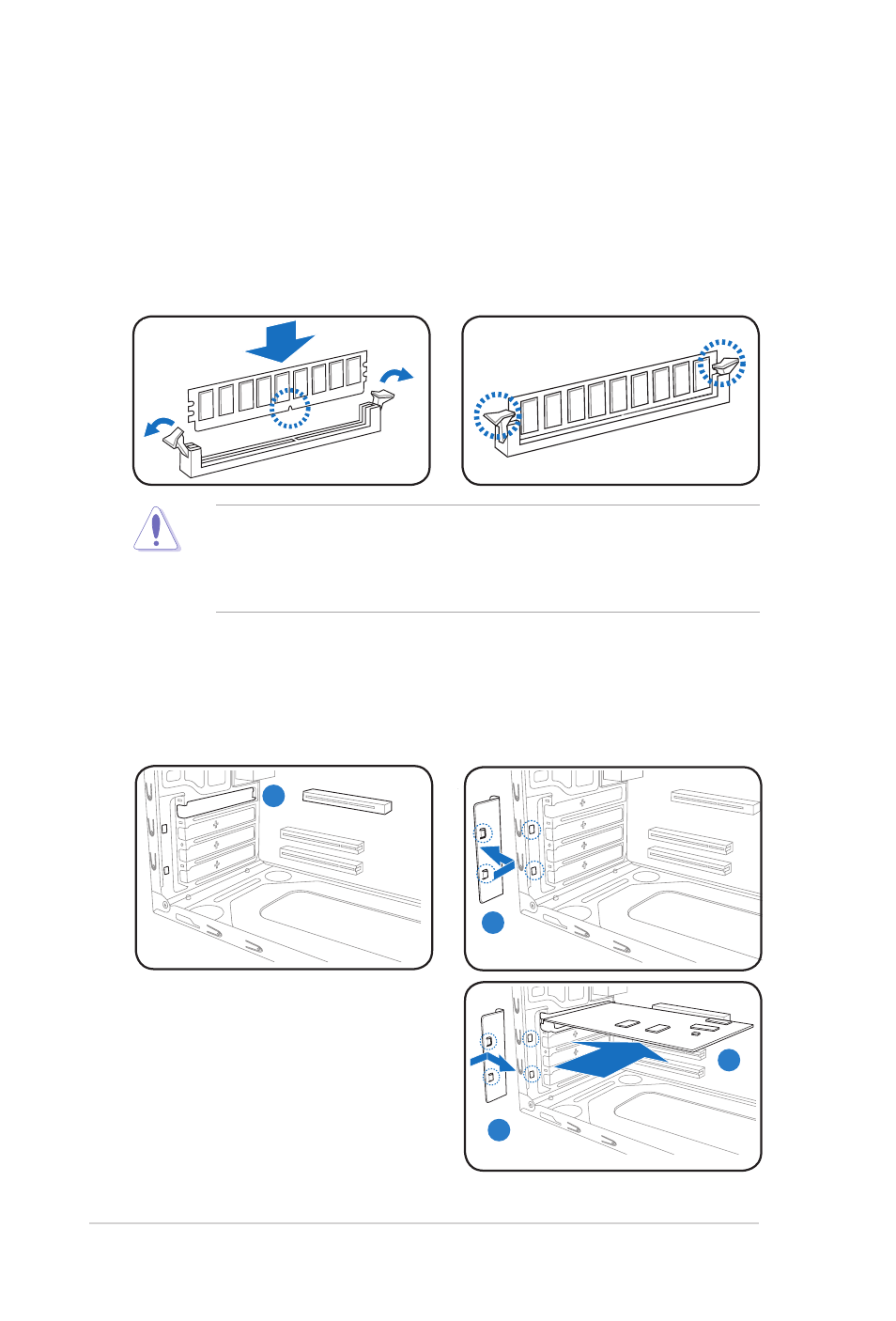

1. Locate the DIMM sockets in the motherboard.
2. Unlock a DIMM socket by pressing the retaining clips outward.
3. Align a DIMM on the socket such that the notch on the DIMM matches the

break on the socket.

4. Push the DIMM to the socket until the retaining clips snap inward.

• Unplug the power supply before adding or removing DIMMs. Failure to do

so may cause damage to the motherboard and/or components.

• A DDR DIMM is keyed with a notch so that it fits in only one direction. Do not

force a DIMM into a socket to avoid damaging the DIMM.

2. Remove the metal bracket lock.

1. Remove the metal cover opposite

the slot that you intend to use.

3. Insert the card connector to the

slot, then press the card firmly

until it fits in place.

4. Replace the metal bracket lock.
