CLR_CMOS (Clear CMOS)

You may clear the CMOS data to its default values by this jumper. To clear CMOS, temporarily short 1-2 pin.
Default doesn't include the shunter to prevent from improper use this jumper.

INTR (Intruder, Case Open Header)

This 2-pin header allows the system to enable or disable the “Case Open” item in BIOS.

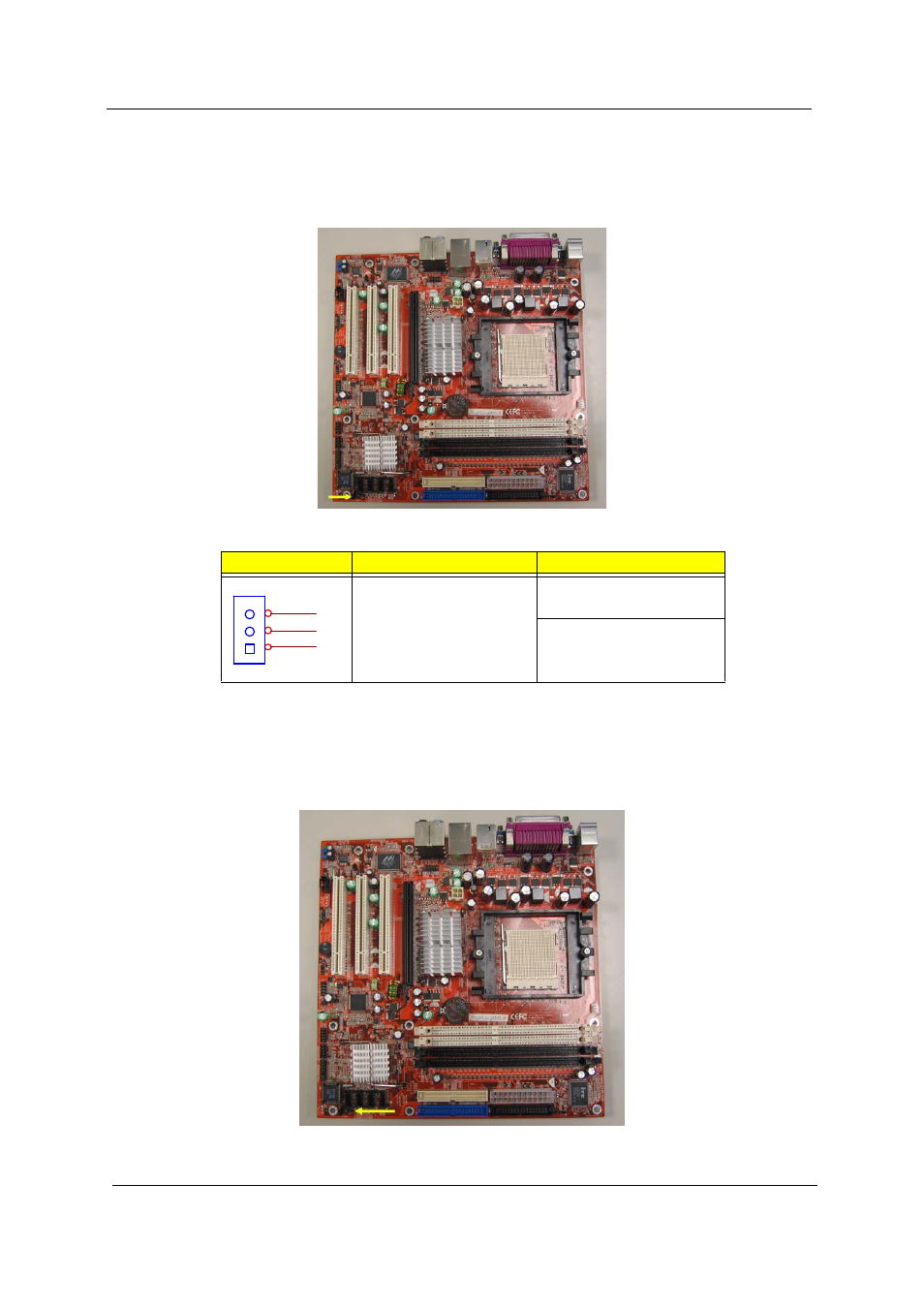

Illustration

Jumper / Header Name

Pin No. and Definition

CLEAR CMOS Header

1-2 pin: CLEAR CMOS
1: GND
2-3 pin: NORMAL
2: RTC_RSTJ
3: VCC_RTC

3 VCC_RTC

2 RTC_RSTJ

1 GND
