• Connect the appliance to the mains with
a device that lets to disconnect the ap-
pliance from the mains at all poles with a
contact opening width of minimum 3
mm, eg. automatic line protecting cut-
out, earth leakage trips or fuse.
• None of a parts of the connection cable
can not get a temperature 90°C.
REPLACEMENT OF THE
CONNECTION CABLE
In order to replace the connection cable
speak your local Service Force Centre!
To replace the connection cable use only
H05BB-F Tmax 90°C (or higher) type.
Make sure that the cable section is applica-
ble to the power and the working tempera-
ture. The yellow/green earth wire must be
approximately 2 cm longer than all phase
wires.

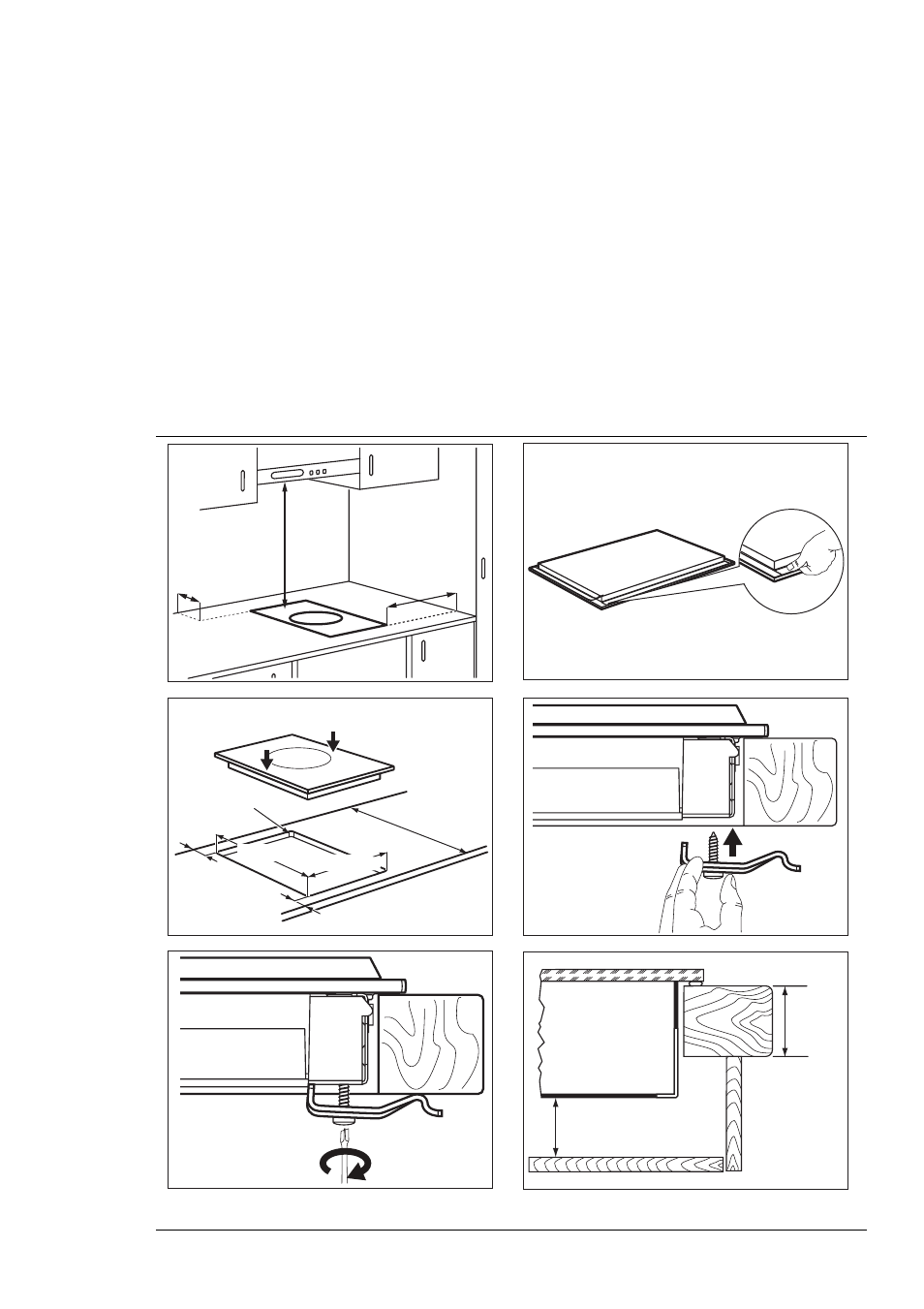

ASSEMBLY
min.
50mm
min.
450mm
min.
650mm
=
=
340 +1 mm
600mm
490 +1 mm
R 5mm
min.
30 mm
min. 20 mm
ENGLISH 57
