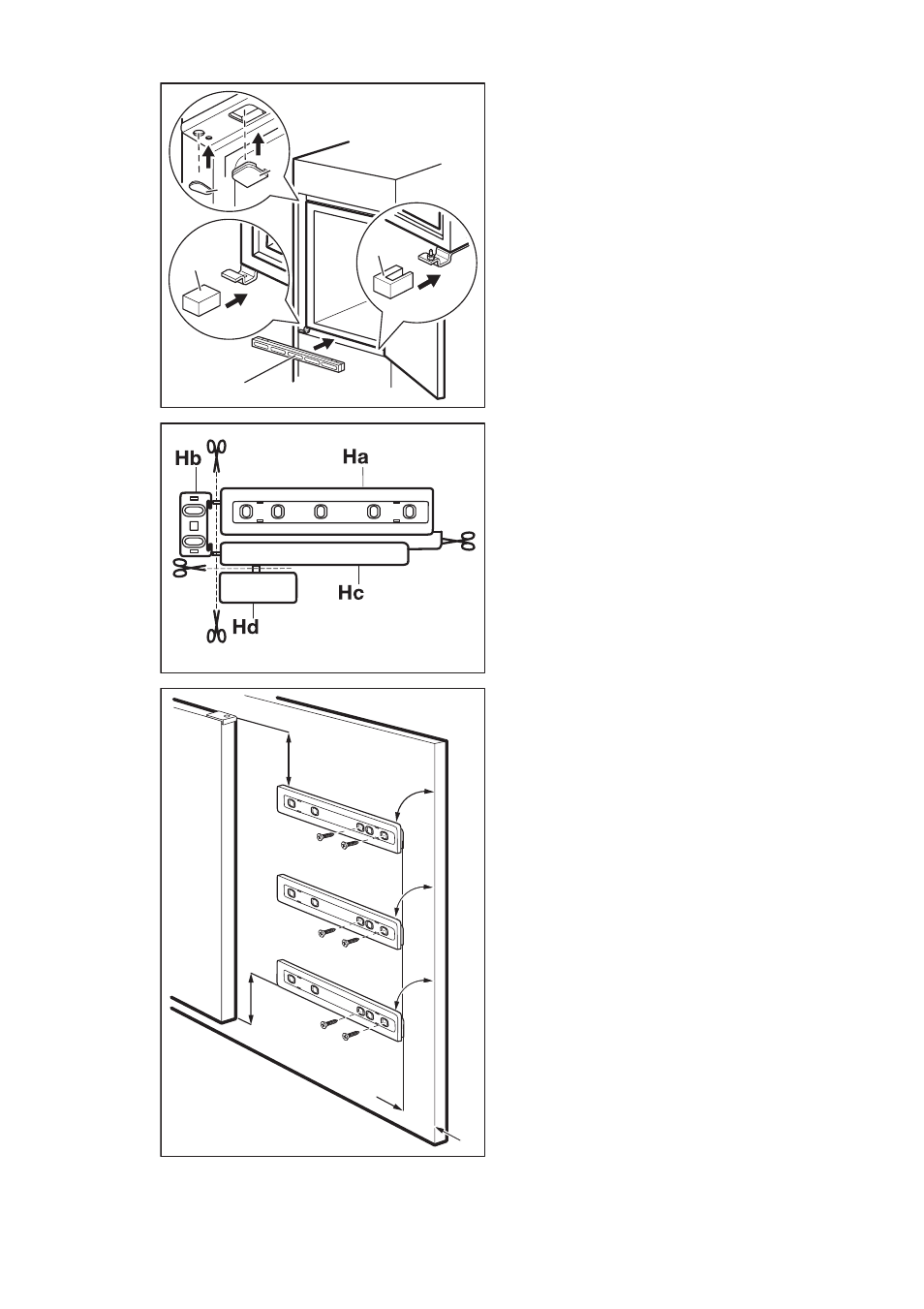

Attach the covers (C, D) to the lugs and
the hinge holes.
Install the vent grille (B).
Attach the hinge covers (E) to the hinge.
Disconnect the parts (Ha), (Hb), (Hc) and
(Hd).
21 mm
~50 mm
~50 mm
90
o
90
o
90
o
Install the part (Ha) on the inner side of the
kitchen furniture.
