service data sheet
241888502
WiNe cOOLer - BeveraGe ceNter - r134a
impOrtaNt safety NOte
The information provided herein is designed to assist qualified
repair personnel only. Untrained persons should not attempt to
make repairs due to the possibility of electrical shock. Disconnect
power cord before servicing this appliance.
impOrtaNt
If any green grounding wires are removed during servicing,
they must be returned to their original position and properly
secured.
cautiON
all electrical parts and wiring must be shielded from torch
flame. dO NOt allow torch to touch insulation; it will char
at 200°f and flash ignite (burn) at 500°f. excessive heat will
distort the plastic liner.
PERFORMANCE DATA NO LOAD & NO DOOR OPENINGS
AT MID-POINT CONTROL SETTING
type a with run/start
capacitor
65°f (18°c) ambient 90°f (32°c) ambient
Operating Time N/A
14 to 37% (Wine Cooler)
30 to 50% (Beverage Center)
Wine Cooler Temperature 45º F to 65º F 45º F to 65º F
Beverage Center
Temperature
35º F to 45º F 35º F to 45º F
Low Side Pressure (cut-in)
30 to 45 psig
208 to 310 kPa
30 to 45 psig
208 to 310 kPa
Low Side Pressure (cut-out)
-2 to 4 psig
-14 to 28 kPa
-2 to 4 psig
-14 to 28 kPa
High Side Pressure
(last 1/3 cycle) 90 to 120 psig
621 to 827 kPa
130 to 175 psig
896 to 1207 kPa
Wattage (last 1/3 cycle) 85 to 125 85 to 125
Amps (running) .75 to 1.2 .75 to 1.2
Base Voltage 115 vac (127 vac max)
cONdeNser faN mOtOr
Watts rpm amps
3.1 1100 CW Opposite Shaft 0.03 Running
BeveraGe ceNter evapOratOr faN mOtOr
3.2 3400 .05
WiNe cOOLer evapOratOr faN mOtOr
1.7 each 9000 .02 each
impOrtaNt: pLease returN this sheet tO
it’s OriGiNaL LOcatiON.

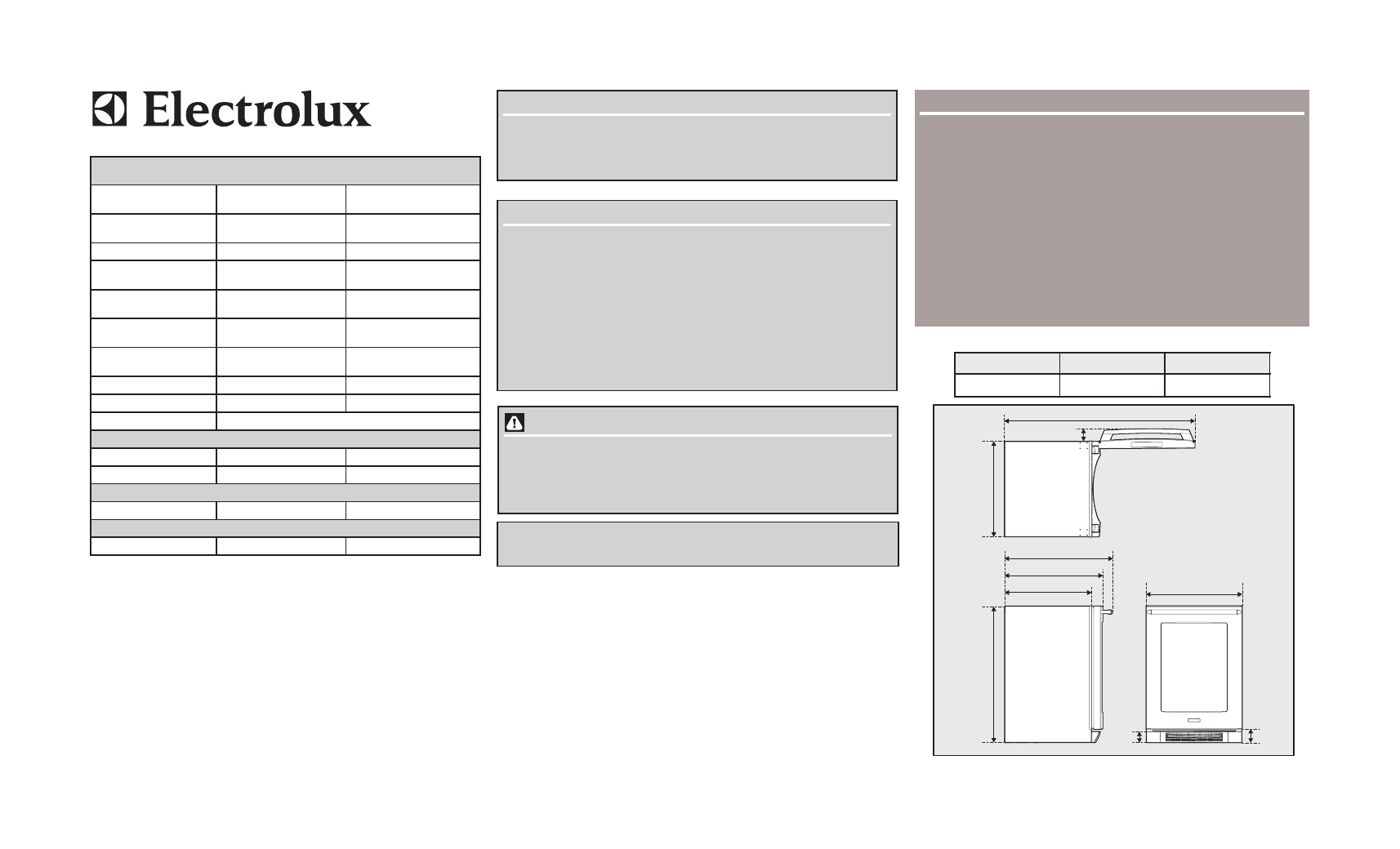

Top
View
Side
View
Front
View
47”
23 5/8”
2 7/8”
26 3/4”
24 1/4”
21 9/16”
34-5/16”
Adjustable to
35”
23 13/16”
3 5/16” 2 3/4”
Width Height Depth
23 13 /
16
inch 34-5/16-35 inches 26 3 /
4
inch
unit dimensions
NOte
Your Electrolux wine cooler / beverage center has been
designed for either free-standing or built-in installation. When
built-in, your wine cooler does not require additional air space
for top, sides or rear. In either case, the front grille must NOt
be obstructed.
To ease unit installation and removal, it is recommended that
the cabinet rough opening dimensions be increased by at least
¼ inch over the dimensions given for your unit.
All units require zero clearance when installed flush with a
cabinet or wall. Electrolux stainless steel models require a
minimum 2⁷⁄₈ inch handle clearance when installed against a
wall or cabinet that extends beyond the front edge of the unit.
