Important, Service data sheet, Do not remove this bag or destroy the contents – Electrolux EI30IF40LS User Manual

Page 3: Replace contents in bag, Wiring diagrams and service information enclosed

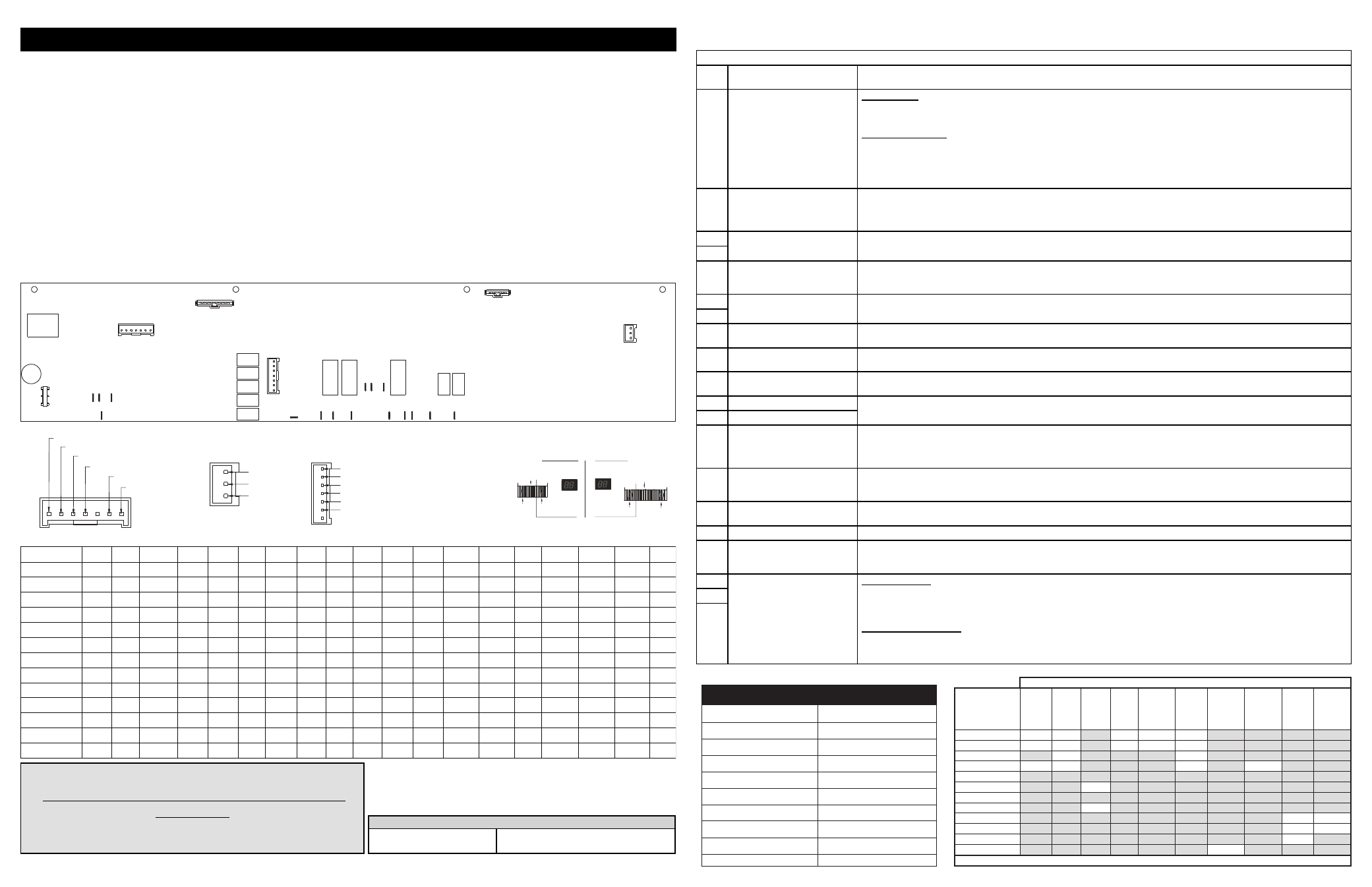

P2 P3

K10

K11
K12
K13

P17

P18 P19 P20

K18

K17

P21

P22

P23

K19

P24 P25 P26 P28 P30

K22

K23

P36

P15

P16

MEMBRANE KEY

MEMBRANE LED

P3 - N

P4 - L2

P5 - L1

P17 - L1 IN

P19 - BAKE

P20 - BROIL

P21 - L1 IN

P23 - L2 OUT

P24 - L2 IN

P28 - L2 IN

P30 - WZ

PIN 1-OVEN PROBE

PIN 2-OVEN PROBE

PIN 4-COMMON

PIN 5-DOOR SWITCH

PIN 6-LOCK SWITCH

P48

PIN 1-+5V

PIN 3-GND

PIN 2-TX/RX

P16

PIN 1-MDL

PIN 3-FAN MOTOR

PIN 2-CATALYST/CLEAN

PIN 4-CONV ELEMENT

PIN 6-OVEN LAMP

P15

20 PIN

RIBBON TAIL

PIN 1

PIN 20

P36

12 PIN

RIBBON TAIL

PIN 12

PIN 1

RIBBON CONNECTIONS

(ELECTRIC MODELS ONLY)

LEFT SIDE

RIGHT SIDE

VIEW FROM FRONT OF DISPLAY

K14

P48

PIN 5-WD ELEMENT

PIN 7-WD TOD

NOTICE - This service data sheet is intended for use by persons having electrical and
mechanical training and a level of knowledge of these subjects generally considered
acceptable in the appliance repair trade. The manufacturer cannot be responsible, nor
assume any liability for injury or damage of any kind arising from the use of this data
sheet.
Safe servicing practices
To avoid the possibility of personal injury and/or property damage, it is important that safe
servicing practices be observed. The following are examples, but without limitation, of such
practices.
1.

Before servicing or moving an appliance, remove power cord from electrical outlet, trip
circuit breaker to OFF, or remove fuse.

Never interfere with the proper installation of any safety device.

GROUNDING: The standard color coding for safety ground wires is GREEN or GREEN
WITH YELLOW STRIPES. Ground leads are not to be used as current carrying
conductors. It is extremely important that the service technician reestablish all
safety grounds prior to completion of service. Failure to do so will create a
potential safety hazard.

Prior to returning the product to service, ensure that:

• All electric connections are correct and secure.

• All electrical leads are properly dressed and secured away from sharp edges, high-
temperature components, and moving parts.

• All uninsulated electrical terminals, connectors, heaters, etc. are adequately spaced

SERVICE DATA SHEET -

Electric Range with ES 1040 Electronic Oven Control

PN 316904476 Rev A (1305)

away from all metal parts and panels.

• All safety grounds (both internal and external) are correctly and securely
reassembled.

Oven Calibration
Set the electronic oven control for normal baking at 350°F. Obtain an average oven
temperature after a minimum of 5 cycles. Press cancel key to end bake mode.
Temperature Adjustment
1.

While in a non-cooking mode, press and hold the bake key for 6 seconds.

The current calibration offset (temperature adjustment) should appear in the
temperature display.

Use the number keypad (0-9) to enter the desired amount of adjustment (up to
35°F).

4. Press

the

bake key to change the sign of the adjustment to a (-) if necessary. A

positive adjustment will not display a sign.

Once the desired adjustment (-35° to 35° F) has been entered, press the start key
to accept the change or the cancel key to reject the change.

NOTE: Changing calibration affects all baking modes. The adjustments made will not
change the self-cleaning temperature.

CONNECTOR-PIN #

P15-1

P15-2

P15-3

P15-4

P15-5

P15-6

P15-8

P15-9

P15-10 P15-18

P15-19

P15-7

CONNECT

LOOP

P15-11

BAKE

CONV

CONVERT

COOK

TIME

CONTROL

LOCK

ON/OFF

P15-12

BROIL

FAVORITES

END

TIME

COOKTOP

LOCK

SELECT

P15-13

SLOW

COOK

CONV

ROAST

SET

CLOCK

OVEN

LIGHT

SIZE

P15-14

START

CONV

BAKE

KEEP

WARM

TIMER

ON/OFF

SIZE

P15-15

CANCEL

CONV

BROIL

RAPID

PREHEAT

SELF

CLEAN

CONNECT

LOOP

SIZE

P15-16

ON/OFF

LOW

MED

HIGH

ON/OFF

LOW

MED

HIGH

CONNECT

LOOP

P15-17

ON/OFF

LOW

MED

HIGH

ON/OFF

LOW

MED

HIGH

CONNECT

LOOP

P15-20

CONNECT

LOOP

WZ ON

(BOTTOM)

WZ_LOW

(LOWEST)

MED LOW

LF1 SIZE

(BOTTOM)

LF2 SIZE

(TOP)

RR1 SIZE

(BOTTOM)

WZ MED

MED HIGH

WZ HIGH

(HIGHEST)

RR2 SIZE

(TOP)

RF1 SIZE

(BOTTOM)

RF2 SIZE

(TOP)

CONNECT

LOOP

P36-9

P36-10

P36-11

(UNUSED)

P36-12

P36-1

P36-2

P36-3

P36-4

P36-5

P36-6

P36-7

P36-8

ON/OFF

SELECT

WD ON

BOTTOM

WD LOW

LOWEST

WD MED

HIGH

Tech Sheet Abbreviations and Terminology

EOC = Electronic Oven Control
VSC = Variable Speed Control
PS = Power Supply board (PS1, PS2, etc.)

RTD = Resistance temperature device (Temp. probe/sensor)
TCO = Thermal cut out, also "thermo disc" or "thermal limiter"
PS = Power Supply board (PS1, PS2, etc.)

Resistance (ohms)

1000 ± 4.0

1091 ± 5.3

1453 ± 8.9

1654 ± 10.8

1852 ± 13.5

2047 ± 15.8

2237 ± 18.5

2697 ± 24.4

Open circuit/infinite resistance

RTD SCALE

Temperature °F (°C)

32 ± 1.9 (0 ± 1.0)

75 ± 2.5 (24 ± 1.3)

250 ± 4.4 (121 ± 2.4)

350 ± 5.4 (177 ± 3.0)

450 ± 6.9 (232 ± 3.8)

550 ± 8.2 (288 ± 4.5)

650 ± 9.6 (343 ± 5.3)

900 ± 13.6 (482 ±7.5)

Probe circuit to case ground

IMPORTANT

DO NOT REMOVE THIS BAG OR DESTROY THE

CONTENTS

WIRING DIAGRAMS AND SERVICE INFORMATION ENCLOSED

REPLACE CONTENTS IN BAG

To test keypad function, check for continuity between indicated pin locations while
pressing the keypad. EXAMPLE: test the BAKE key on connector P15 with the P2 and
P11; test the Warmer Zone Medium on connector P36 with P1 and P10.

L1 to

Bake

L1 to

Broil

L1 to

Motor

Door

Latch

L1 to

Conv

Bake

Fan

L1 to

Conv.

HeaƟng

Element

L2 In to

L2 Out

L1 to

Warming

Drawer

L1 to

Catalyst

Element

L1 to

Oven

Lamps

Door

Switch

Contacts

COM-NO

Bake/Time Bake

X◊

X†

Conv Bake

X◊

Clean

X◊

Unlocked

Locked

Door Open

Door Closed

Oven Lamps ON

Warming Drawer

X◊

EOC Relays - ES1030 Oven Control (Electric)

NOTE: X=Circuit Contacts Closed O = Circuit Contacts Open * = Alternates with Bake Element † = During Preheat ◊ = Cycles as Needed

Electronic Oven Control Fault Code Descriptions

Fault
Code

Likely failure condition/cause

Suggested corrective action

F10

Runaway temperature.
Oven heats when no cook cycle is
programmed.

If Oven is cold:
1.

If fault code is present with cold oven, test oven temperature sensor probe circuit resistance. Use RTD scale found in the tech sheet.

Replace probe or repair wiring connections if defective.

If temperature sensor probe circuit is good but fault code remains when oven is cold replace the EOC.

If Oven is overheating:
1.

If oven is severely overheating/heating when no cook cycle is programmed, test oven temperature sensor probe circuit resistance
using the RTD scale found in the service tech sheet. Also verify that the temperature sensor probe in properly installed in the oven
cavity.

Disconnect power from the range, wait 30 seconds and reapply power. If oven continues to heat when the power is reapplied, replace
the EOC. NOTE: Severe overheating may require the entire oven to be replaced should damage be extensive.

F11

Shorted keypad or selector switch.

1. Reset power supply to range - Disconnect power, wait 30 seconds and reapply power.
2. Check/reseat ribbon harness connections between touch panel and EOC.
3. Test keyboard circuits using test matrix. Replace touch panel if defective.
4. If keyboard circuits check correctly, replace the EOC.

F12

EOC Internal software error or
failure.

Disconnect power, wait 30 seconds and reapply power. If fault returns upon power-up, replace EOC.

F13

F14

Keyboard tail failure.

1. Check/reseat ribbon harness connections between keyboard touch panel and EOC.
2. Test keyboard circuits using test matrix (below). Replace touch panel if defective.
3. If keyboard circuits check correctly, replace EOC.

F17

EOC Internal hardware error of
failure.

Disconnect power, wait 30 seconds and reapply power. If fault returns upon power-up, replace EOC.

F18

F30

Open oven sensor probe circuit.

Check resistance at room temperature and compare to RTD Sensor resistance chart. If resistance is correct replace the EOC. If resistance
does not match the RTD chart, replace RTD sensor probe. Check sensor wiring harness between EOC and sensor probe connector.

F31

Shorted oven sensor probe circuit.

Check resistance at room temperature. If less than 500 ohms, replace RTD sensor probe. Check for shorted sensor probe harness between
EOC and probe connector. If resistance is correct, replace the EOC.

F42

EOC internal software
confi guration error.

Usually this failure code would only appear if the EOC has been replaced with an incorrect version. Verify that the correct replacement part
number is being used.

F50

Internal signal voltage error.

Disconnect power, wait 30 seconds and reapply power. If fault returns when power is reapplied, replace EOC.

F51

Display communication error.

F60

EOC oven temperature. Higher
than normal temperature detected
on the EOC board.

Verify proper assembly of backguard panel. Check for damaged or loose panels, brackets, endcaps, etc.

Check for blocked ventilation slots in control panel rear cover.

Inspect oven vent for proper assembly and air fl ow.

Verify operation of cooling fan (if present).

F64

Time Base failure. The EOC
cannot determine if connected to
50Hz or 60Hz power supply.

Confi rm that range is connected to proper power source (50Hz or 60Hz). Generators or other portable power supplies and solar grids, etc.,
may not provide proper power supply. If power source is correct, replace the EOC.

F65

Keyboard short circuit or internal
EOC failure.

Test keyboard circuits using test matrix. Replace touch panel if defective.

If keyboard circuits check correctly, replace the EOC

F66

EOC internal power supply failure.

Disconnect power, wait 30 seconds and reapply power. If fault returns upon power-up, replace EOC.

F68

High voltage condition. L1 or L2
may be crossed with Neutral on
incoming PS.

Verify proper incoming line voltage and polarity of L1, L2 and Neutral power supply connections at range terminal block.

If power supply voltage and polarity are correct, replace EOC.

F90

Door lock motor or latch circuit
failure.

If lock motor runs:
1. Test continuity of wiring between EOC and lock switch on lock motor assy. Repair if needed.
2. Advance motor until cam depresses the plunger on lock motor switch. Test continuity of switch contacts. If switch is open replace lock

motor assembly.

3. If motor runs and switch contacts and wiring harness test correctly, replace the EOC.
If lock motor does not run:
1. Test continuity of lock motor windings. Replace lock motor assembly if windings are open.
2. Test lock motor operation by using a test cord to apply voltage. If motor does not operate, replace lock motor assy.
3. If motor runs with test cord, check continuity of wire harness to lock motor terminals. If harness is good replace the EOC.

F91

F95
