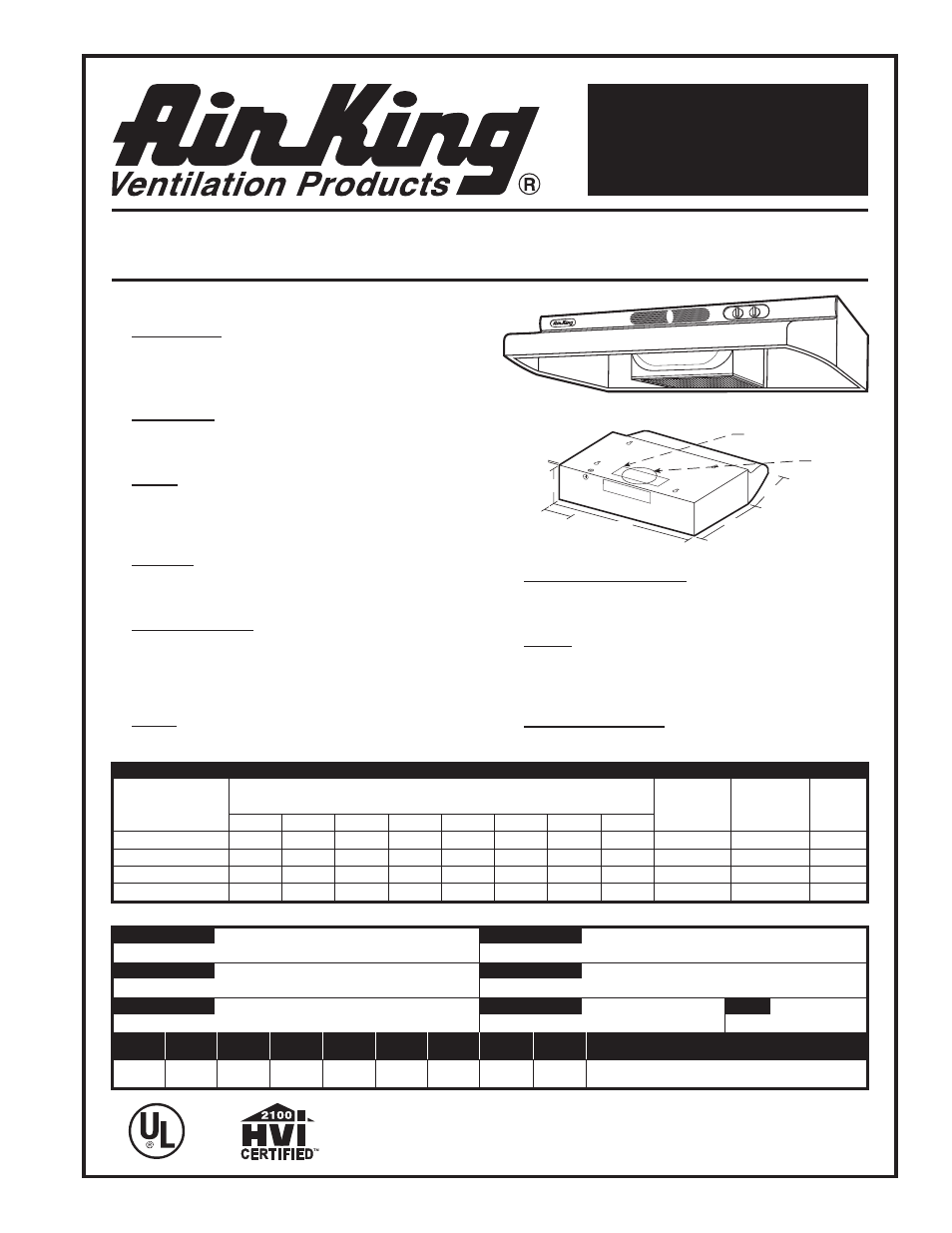

Air King QZ Series User Manual
Qz series, Specifications range hoods, Dimensions
SPECIFICATIONS
RANGE HOODS
QZ SERIES
250 CFM/5.5 Sones @ 0.10" WG. Horizontal, 260 CFM/
6.0 Sones @ 0.10" WG. Vertical, 120 Volts, 2.0 amps, 60hz
• Dimensions
Overall bottom projection - 18
3/8
"
Overall top projection -12"
Height - 6". Available widths: 30" & 36"
• Hood Body
23 gauge cold rolled steel, auto welded, coated with a baked
enamel finish.
• Motor
Fully enclosed PSC 4 pole motor. Variable speed, thermally
protected, permanently lubricated. Rated 115/120 Volts, 60 hz,
2.0 amps.
• Lighting
Enclosed in a polycarbonate lens, 60 watt max. type A15
Appliance lamp
(bulb not included)
, complete with night light setting.
• Ducting Options
Horizontal ducting: 3
1/4
"x10"
(duct adapter and damper included).
Vertical ducting: 3
1/4
"x10"
(duct adapter and damper included).
Vertical ducting: 7" round
(duct adapter and damper not included).
Ductless: removable front vent
(charcoal filter not included)
.
• Blade
Polymeric axial fan blade 9
1/8
" diameter with 7 paddles.
2
1/4
" x 10" knock-out for
3
1/4
" x 10" rectangular
duct connection
12"
6
3/8
"
5
11/16
"
29
7/8
", 35
7/8
"
6"
7/8
"
7" round
knock-out
Canada: 110 Glidden Road
Brampton, Ontario L6T 2J3
Tel: (905) 456-2033
Fax: (905) 456-1015
U.S.: 820 Lincoln Drive
West Chester, Pennsylvania 19380-4466
Tel: (610) 692-7400 • 877-304-3785
Fax: (610) 696-8048
Updated 3-08
Specifications subject to change without notice.
• Electrical connection
Hood top -
7/8
" electrical knockout.
Hood back -
7/8
" electrical knockout.
• Filters
UL rated, class 2 filter.
Grease Filter: GF-06, dishwasher safe
(included)
.
Charcoal Filter: CF-06
(not included)
.
• Available Finishes
White, Biscuit, Almond, Black & Stainless Steel.
C
US
PROJECT
LOCATION
CONTRACTOR
ARCHITECT
ENGINEER
SUBMITTED BY
DATE
FAN
MODEL
CFM
IN
RPM
WATTS
AMPS
SONES
QTY
OPTIONAL EQUIPMENT
NUMBER NUMBER
W.G.
& REMARKS
PERFORMANCE
Sones
Fan Speed
Power
Static Pressure (inches of w.g.)
@ .1 SP
RPM
Watts
Air Flow - CFM
0
0.05
0.1
0.15
0.2
0.25
0.3
0.35
Vert Ducting High
294
279
260
250
238
213
184
151
6.0
2255
94
Horz Ducting High
292
274
250
238
225
195
165
135
5.5
2141
93
Vert Ducting Min
206
184
149
127
103
48
-
-
1.5
1579
32
Horz Ducting Min
209
179
138
115
92
47
-
-
1.5
1499
32
