CENTRAL THERMOSTAT

LESS VOLUME CONTROL

TRIM KIT

Installation

Instructions

M 9 6 8 6 5 8

M 9 6 8 6 5 8

M 9 6 8 6 5 8

T555730

TOWNSQUARE

TOWNSQUARE

Thank you for selecting American-Standard...the

benchmark of fine quality for over 100 years.
To ensure that your installation proceeds smoothly--please

read these instructions carefully before you begin.

Certified to comply with ANSI A112.18.1M
ASSE 1016

ROUGHING-IN DIMENSIONS

MODEL NUMBERS

TEMPERATURE CALIBRATION

SET HOT LIMIT STOP

5

Check that arrow marking B points vertically upwards. If not, push the BLACK

CLAMP (1) on the SECURING RING (2) to the right, pull off KNOB MOUNT (3)

and reinstall KNOB MOUNT (3) with arrow "B" pointing upwards.

For 100˚F adjustment, turn the water supply on. Turn KNOB MOUNT (3) until the spout

temperature is 100˚F. Check that arrow marking A on the KNOB MOUNT (3) still points

upward after adjusting the thermostat to 100˚F. If not, pull out the RED LOCKING DEVICE (5).

Remove KNOB MOUNT (3) without turning by sliding out as indicated by the arrow.
Reinstall the KNOB MOUNT (3) so that the arrow marking A points upwards.

The maximum mixed water temperature is set at 109˚F at the factory.

This setting can be changed if desired.
Remove the TEMPERATURE LIMIT STOP (4) (H shaped Black Plastic part).

Reinstall it at the desired notch as indicated in the diagram to limit the maximum

mixed water temperature to 104˚F or 112˚F.

Reinstall RED LOCKING DEVICE (5).

ARROW

"A"

ARROW

"B"

104

109

112

OPERATING THE VALVE

OFF

COLD

HOT

4

1

Push CAP (1) over the O-RING SEAL (2).

TRIM INSTALLATION

1

3

6

CHROME

BLACKENED BRONZE

SATIN NICKEL

002

068

295

Replace the "YYY" with

appropriate finish code

Push ESCUTCHEON (3) over CAP (1).

Attach ESCUTCHEON (3) to VALVE (4) with the two SCREWS

(5) provided.

Align DIAL PLATE (6) and push DIAL PLATE (9) into place.

2

HANDLE INSTALLATION

Align HANDLE BASE (1) with KNOB MOUNT (2) and push

onto KNOB MOUNT (2).

Install HANDLE (3) as shown. Install HANDLE SCREW (4) and

tighten with screwdriver.

Push KNOB CAP (5) into HANDLE (3).

CENTRAL THERMOSTAT

LESS VOLUME CONTROL

TRIM KIT

Recommended Tools

Flat Blade Screwdriver

Phillips Screwdriver

Remove as much surface dirt and film using clear

water and soft cotton cloth (as described above).

Use any of the following to remove tough surface

film and build-up:

Mild liquid detergents

Clear ammonia free liquid glass cleaners

Non-acidic, non-abrasive gentle liquid or fully

dissolved powder cleansers mixed according to

manufacturers directions.

Non-abrasive liquid polishers

Once clean, rinse faucet again with clear water to

thoroughly remove cleaner or polish and blot dry with

a soft cotton cloth.

To keep your new faucet looking new, please follow

these simple care instructions:

DO: Simply rinse the faucet clean with clear water.

Dry the faucet with a soft cotton cloth.

DO NOT:

Do not use any abrasive cleaners, cloths, or

paper towels.

Do not use any cleaning agents containing

acids, polish abrasives, or harsh cleaners or

soaps.

Regular and routine cleaning will reduce the need for

heavy cleaning and polishing. If heavy cleaning is

required, the following procedures are recommended:

CARE INSTRUCTIONS:

Failure to follow these care instructions may

damage the Faucet's finish.

4

Should the hot and cold water supply pipes have been transposed making

adjustment impossible, proceed as follows:

TRANSPOSED SUPPLY PIPING OR BACK TO BACK INSTALLATION

3

Remove check stops and re-install them transposed.

Shut off water supply.
Remove handle and rim

CHECK STOP

(RED TO BLUE)

Important note: RED CHECK STOP is now on the right of the mixer body and the BLUE

CHECK STOP is now on the left.
Turn the water supply back on and perform the temperature adjustment in step 4.

CHECK STOP

(BLUE TO RED)

2

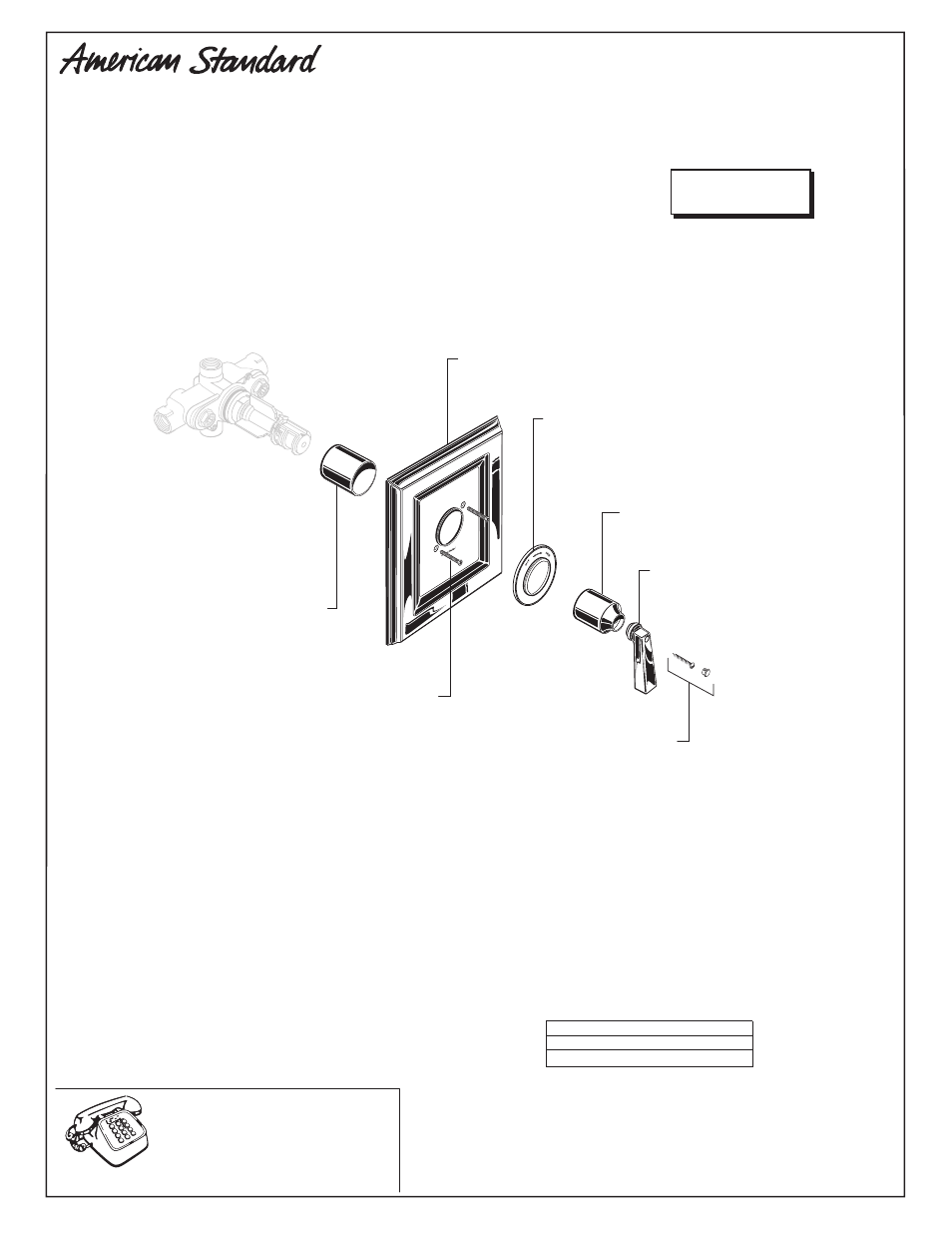

M962633-YYY0A

HANDLE SCREW AND

INDEX BUTTON

M916815-YYY0A

LEVER HANDLE

A909834-YYY0A

DIAL PLATE

M908587-YYY0A

HANDLE BASE

A918434-0070A

ESCUTCHEON SCREWS

M962632-YYY0A

ESCUTCHEON KIT

A907090-YYY0A

CAP

HOT LINE FOR HELP

For toll-free information and answers to your questions, call:

1 (800) 442-1902

Weekdays 8:00 a.m. to 6:00 p.m. EST

IN CANADA 1-800-387-0369 (TORONTO 1-905-306-1093)

Weekdays 8:00 a.m. to 7:00 p.m. EST

Product names listed herein are trademarks of American Standard Inc.

© AS America, Inc. 2007

IN MEXICO 01-800-839-12-00

230mm

(9)

230mm

(9)

86mm

(3-3/8)

34mm

(1-3/8)

191mm

(7-1/2)

150mm

(5-7/8)

25mm

(1)

R510

1/2 NPT

R530

3/4 NPT

R510

1/2 NPT

R530

3/4 NPT

48mm to 68mm

(2 to 2-5/8)

5

1

3

4

5

2

Turn on water supply on and test installed fitting.

If the system is delivering all Hot or all Cold and no mixed water the pipes are probably transposed.

See step 3 for

TRANSPOSED SUPPLY PIPING.

Operate valve from off to cold to hot. Check temperature. If max mixed water

temperature is to hot or to cold see step 4 and re-calibrate the valve.

T555730
