F7

© 2008 AS America Inc.

CERATHERM

TWO-HANDLE THERMOSTAT

WITH SEPARATE VOLUME CONTROL

FLOW RATE*

GALLONS PER MINUTE

I N L E T P R E S S U R E ( P S I )

*Flow rates shown are for mixed hot and cold.

0

3

6

9

12

15

120

100

80

60

40

20

SUGGESTED SPECIFICATION:

Two handle Thermostat shall feature a cast brass valve body. Thermostat shall be a wax element shuttle valve. Shall also

feature ceramic disc valving, 1/2" NPT or 3/4" NPT inlets and outlets. Fitting shall be American Standard Model # T050.210.___

(Trim Kit) and R520 or R540 (Rough Valve).

CODES AND STANDARDS

These products meet or exceed the following

codes and standards:

ASSE 1016

ASME A112.18.1

CSA B125

PRODUCT FEATURES:

Brass Casting:

Highest quality faucet material for durability &

long life.

Wax Thermostatic Unit:

Permits shuttle valve to move

between the hot and cold seat to maintain the pre-selected

constant water temperature.

Back to Back Capable:

Hot and cold can be reversed.

Spring-Loaded Check Valves:

When the hot and cold water

enters the fitting, both supplies pass through the spring-loaded

check valves to prevent cross flow of hot and cold water.

Integrated Stop Valves:

Ensure easy cleaning and servicing.

Adjustable Hot Limit Safety Stop:

Limits the amount of hot

water allowed to mix with cold. Reduces the risk of accidental

scalding. Maximum water temperature limit may be reduced to

104 or 109 degrees Fahrenheit.

MODEL NUMBER:

TRIM KITS:
T050.210 Two-Handle Thermostat Trim Kit

With separate volume control. L

ESS

Valve.

ROUGH VALVES:
R520 Rough Valve Body only

1/2" NPT inlets/outlets. With separate volume control.

L

ESS

Trim.

R540 Rough Valve Body only

3/4" NPT inlets/outlets. With separate volume control.

L

ESS

Trim.

NOTE:

When used as a Bath/Shower:

EITHER

- a separate diverter valve (such as R420 or R430)

OR

- a diverter tub spout (requires twin ell - Model #8888.120)

IS REQUIRED

*NOTE:

When used as a Bath/Shower a separate diverter valve is required (such as1660.430 or 1660.440).

Requires twin ell ( Model #8888.120 - must be ordered separately) for use with diverter spouts.

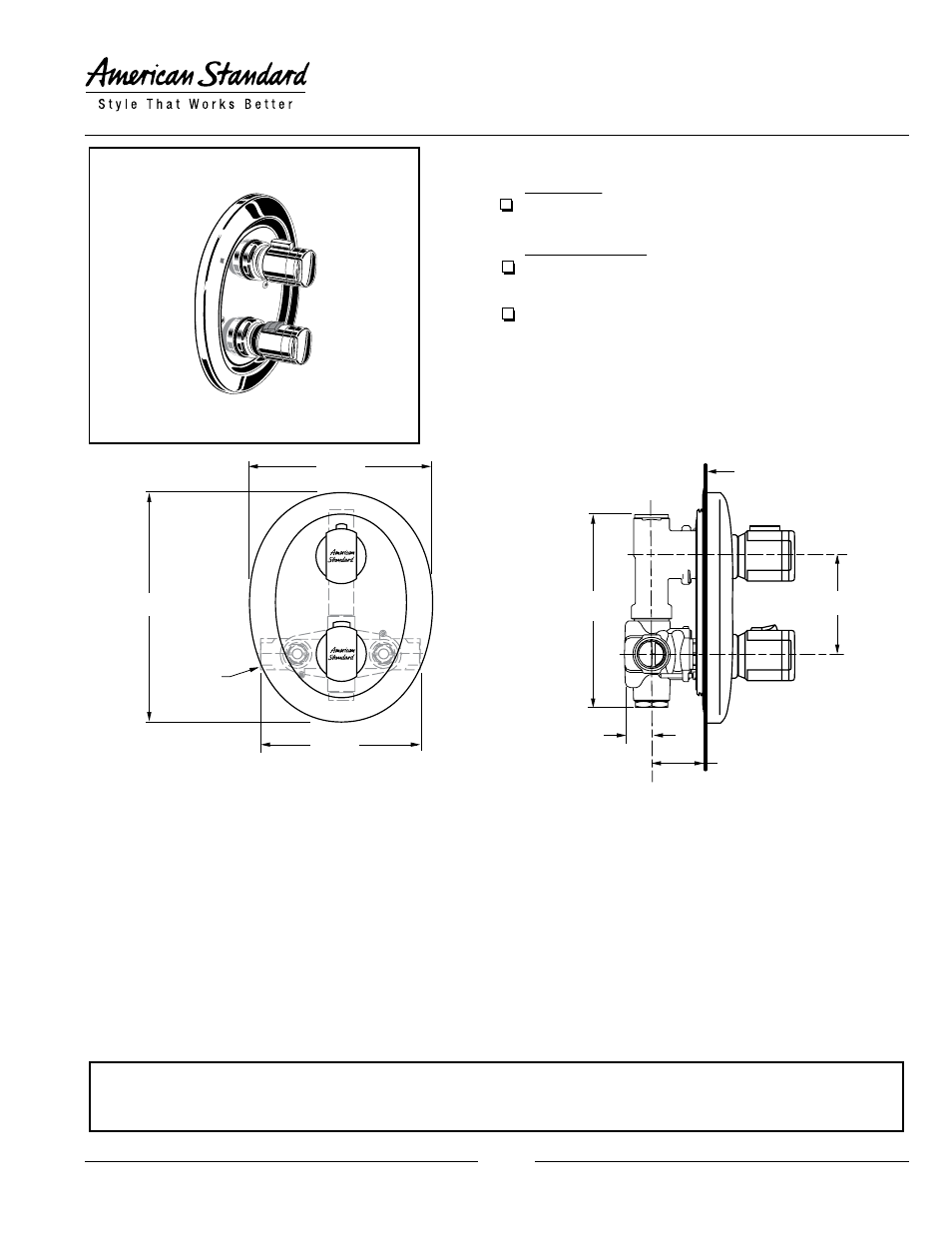

232mm

(9-1/8)

170mm

(6-3/4)

150mm

(6)

50

60

Two-handle Thermostat Trim Kit with separate volume control.

R540

Rough Valve Body less trim - 3/4" NPT Inlets/Outlets

R520

Rough Valve Body less trim - 1/2" NPT Inlets/Outlets

GENERAL DESCRIPTION:

Cast brass valve body. The single unit contains two

handles, the bottom handle sets the desired temperature

and the top handle functions as an on/off, volume control.

The temperature is maintained by a wax element moving

a shuttle valve between hot and cold. The volume is

controlled by twin ceramic disc valve cartridges.

Ceratherm includes Hot Limit Safety Stop. Maximum

temperature limit is 112°F. Escutcheon plate is stamped

brass.

Available with 1/2" or 3/4" NPT inlets and outlets.

The valve has a high flow rate, ideal for mutiple outlet

installations.

NOTE: FITTING

MUST BE INSTALLED

WITH VOLUME CONTROL

ON TOP.

R520

1/2" NPT INLETS

or

R540

3/4" NPT INLETS

**

ROUGH & TRIM MUST BE ORDERED SEPARATELY.

T050.210

*

Finish Options

Product
Number

Description

Polished

Chrome

002

PVD

Polished

Brass

099

PVD

Satin

Nickel

295

TRIM KITS**

Product
Number

Description

ROUGH VALVE

BODIES

186mm

(7-3/8)

100mm

(3-7/8)

48mm to 68mm

(2 to 2-5/8)

25mm

(1)

FINISHED

WALL
