11
5.2 Equalizer In Sound Reinforcement Systems
The EQU Series Graphic Equalizers can be used in the sound reinforcement systems to:
Eliminate unwanted sounds, such as the 60Hz Hum noise.
Shape the sound by changing the frequency response of the track.

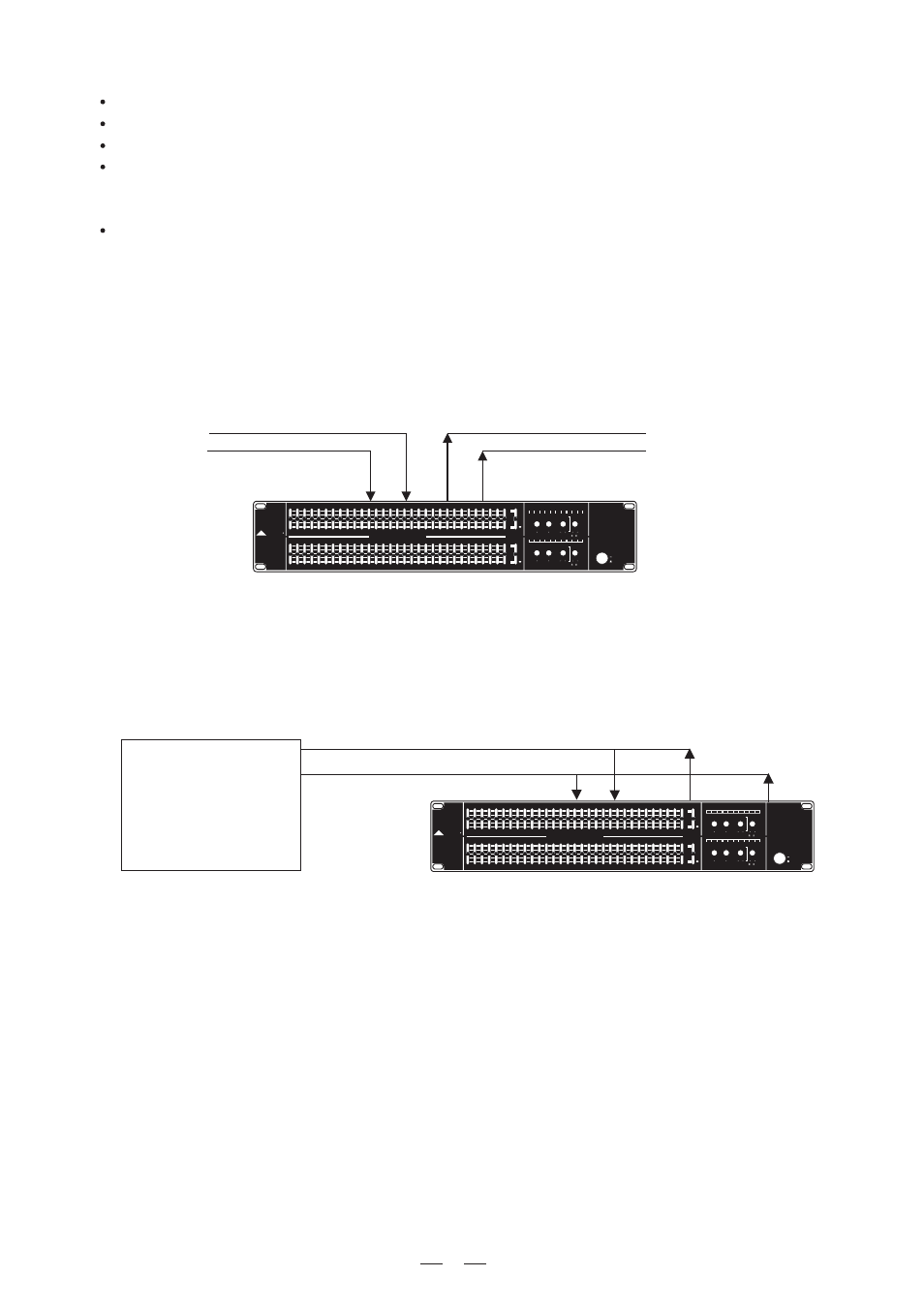

The following connection is probably most common field of application:
NOTE : Mono/Stereo Application
- Mixing Console
MIXING CONSOLE
CH1 IN CH1 OUT
CH2 IN CH2 OUT
Main Inserts
Channel One
Channel Two
20 31.5 50 100 200 500 1.25K 2.5K 6.3K 12.5K 25 40 80 160 400 1K 2K 5K 10K 63 125 315 800 250 630 1.6K 4K 3.15K 8K 16K 20K LEVEL
BY-PASS RANGE HI-PASS LOW-PASS
CLIP 40Hz 16 KHz
BY-PASS RANGE HI-PASS LOW-PASS
CLIP 40Hz 16 KHz
POWER
EQU231LED Dual 31 Band Graphic Equalizer
ON
OFF
20 31.5 50 100 200 500 1.25K 2.5K 6.3K 12.5K 25 40 80 160 400 1K 2K 5K 10K 63 125 315 800 250 630 1.6K 4K 3.15K 8K 16K 20K LEVEL 12
12
6
6 LTO R
- Line Instrument
Channel One
Channel Two
20 31.5 50 100 200 500 1.25K 2.5K 6.3K 12.5K 25 40 80 160 400 1K 2K 5K 10K 63 125 315 800 250 630 1.6K 4K 3.15K 8K 16K 20K LEVEL
BY-PASS RANGE HI-PASS LOW-PASS
CLIP 40Hz 16 KHz
BY-PASS RANGE HI-PASS LOW-PASS
CLIP 40Hz 16 KHz
POWER
EQU231LED Dual 31 Band Graphic Equalizer
ON
OFF
20 31.5 50 100 200 500 1.25K 2.5K 6.3K 12.5K 25 40 80 160 400 1K 2K 5K 10K 63 125 315 800 250 630 1.6K 4K 3.15K 8K 16K 20K LEVEL 12
12
6
6 LTO R
From line instrument
outputs
To power amplifier inputs
CH1 IN
CH2 IN
CH1 OUT
CH2 OUT
0
-
0dB
+17 +12 +6
-12 - 6
0
-
0dB
+17 +12 +6
-12 - 6
0
-
0dB
+17 +12 +6
-12 - 6
0
-
0dB
+17 +12 +6
-12 - 6
Special effects like telephone sounds are done by cutting off the low end to 200Hz and the high end to 6KHz.
Allow you to modify the sound of the instrument if put EQU Series Equalizer in line with a musical instrument.
you can brighten the sound, and body to a thin sounding instrument, or you can give the sound a totally different
character.
Fix a track that does not sound quite right, put the EQU Series Equalizer in an effects send and return it to the
mix bus.
The EQU Series Graphic Equalizer can be used on an entire mix "In-line" between a instrument outputs and a
power amplifier, and this is the basic application in the PA system to offer precise Equalization control.
The EQU Series Graphic Equalizer can also be used on a single instrument by connecting to a mixing console's
main inserts, esp for those consoles without built-in equalization circuitry.
a. For mono application, please use the EQU131, EQU131VU mono Graphic Equalizer.
b. For stereo application, please use the EQU215, EQU2215, EQU231LED, EQU231VU or EQU231TWIN
stereo Graphic Equalizer, either of the two channels can be used as L/R input & output.
