Page 8

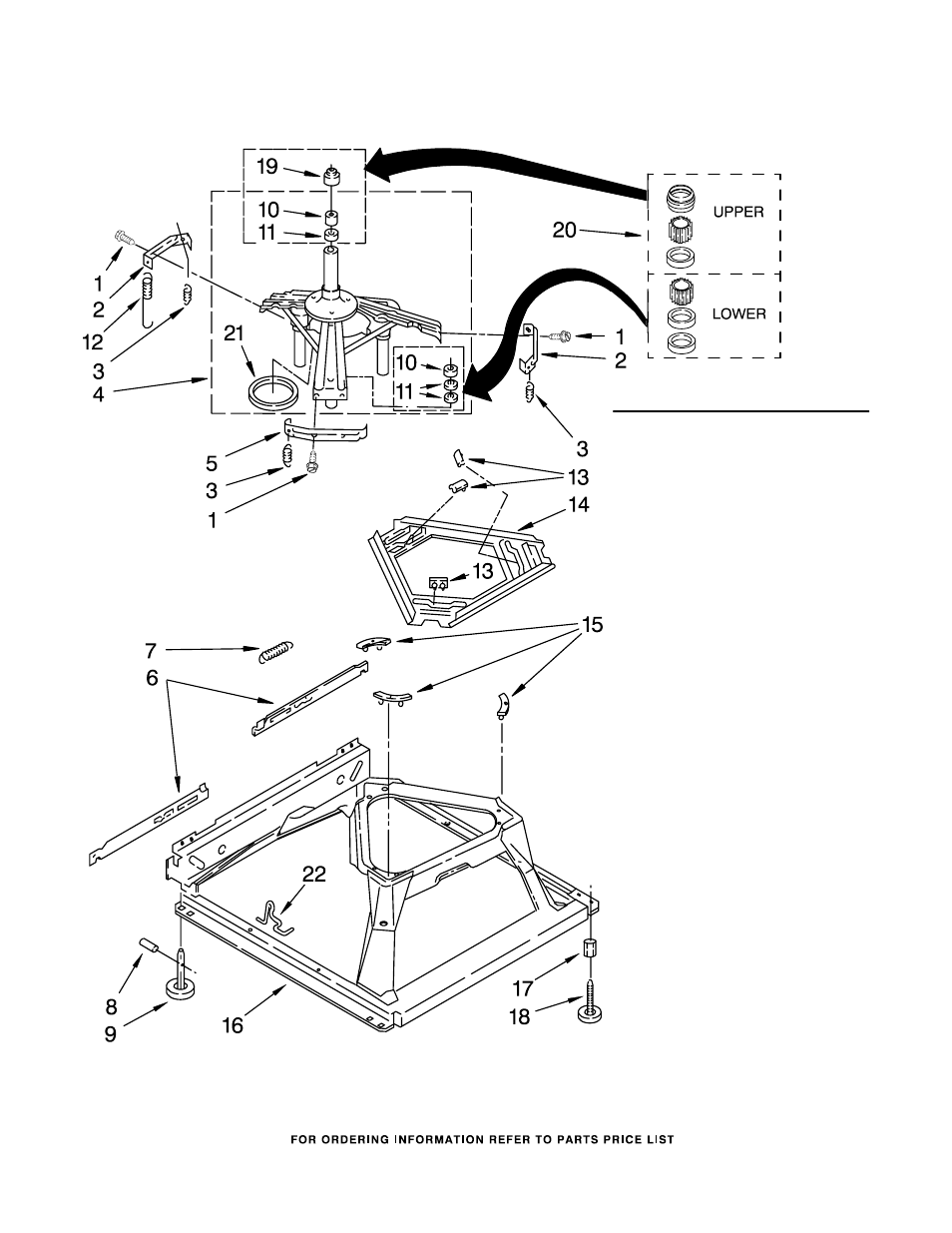

MACHINE BASE PARTS
8
For Model: NTW5205TQ0
(White)
W10159160
Illus. Part
No. No. DESCRIPTION
1
3400076 Screw, Bracket
Mounting
(10−32 x 5/8)
2
64067 Bracket, Spring
Outer (2)
3
63907 Spring
Suspension,(3)
4
8575214 Support & Brake,
Tub
5
64065 Bracket, Spring
Outer (L.F.)
6
63466 Link, Leveling
Mechanism (2)
7
62597 Spring, Leveling
Mechanism
8
62837 Pin, Knurled
9
62596 Foot, Rear (2)
10
8546455 Bearing,
Centerpost (2)
11
357409 Seal, Centerpost (3)
12
8534035 Spring,
Counterweight
13
62568 Pad, Plate
14
3946509 Plate, Suspension
(Includes Item 13)
15
3363660 Pad, Base
16
3946512 Base Assembly
(Includes Items 6,
7, 8, 9, 13, 14
15 & 22)
17
3359452 Nut, Lock (2)
(3/8−16)
18 W10001130 Foot, Front (2)
19
8577376 Seal, Centerpost
20
285203 Centerpost
Bearing Kit
(Includes Items
10, 11 & 19)
21
63134 Ring, Sound
Deadening
22
63806 Retainer,
Suspension Spring
