1.2 Package Contents
The following items are included in the switch’s package:
• Switch
• AC power cord
• USB cable for management console port
• RS232 null-modem cable for management console port
• Rack mount brackets with screws
• IntraCore IC36240 CD-ROM
• Release Note
Contact your dealer immediately if any of these items is missing.
1.3 Front and Back Panel Descriptions
The following section describes the front and back panels of the IntraCore IC36240 Series switches.

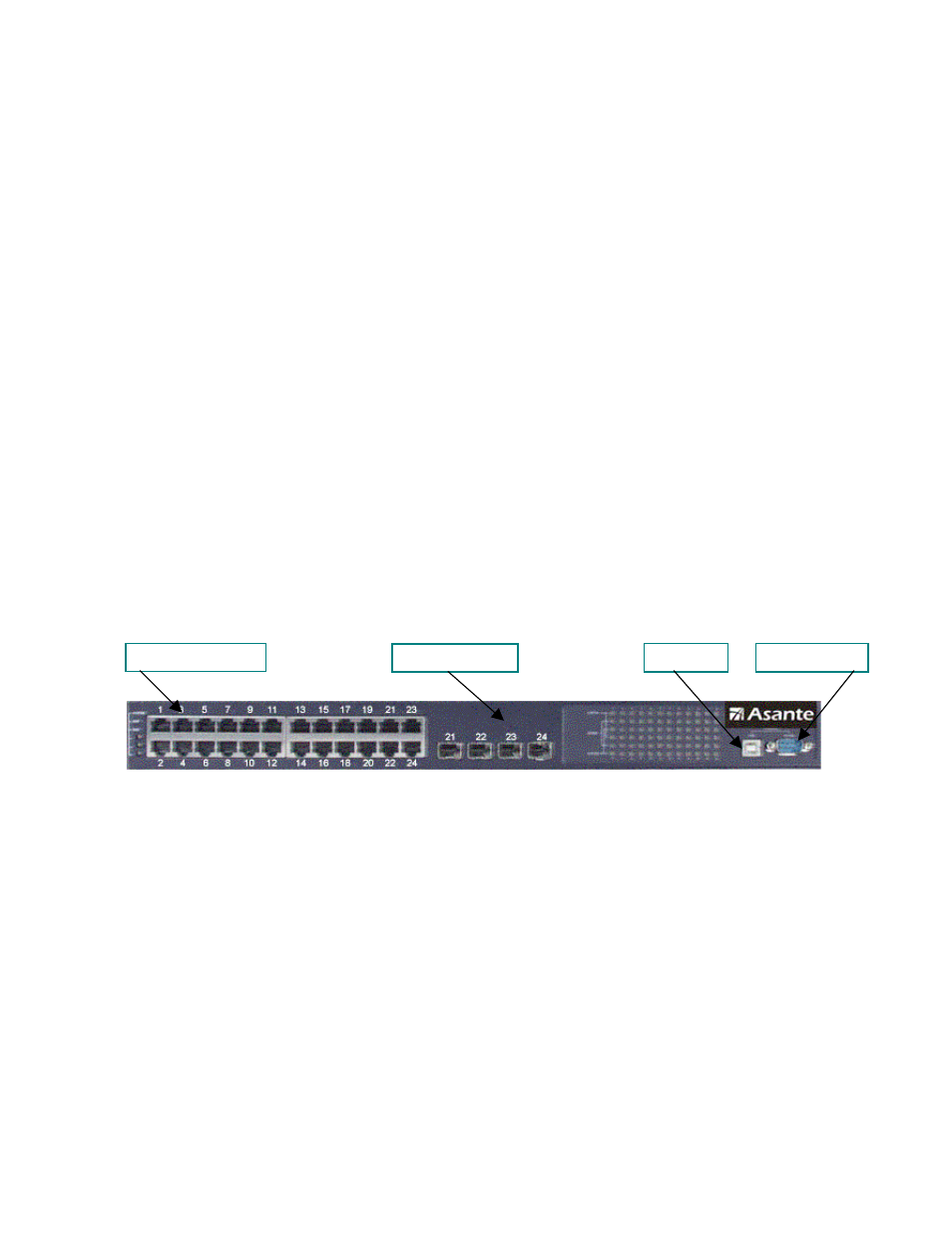

The front panel of the IntraCore IC36240 contains the following: power and port LEDs, 24 10/100/1000BaseT ports, 4
dual-function Gigabit ports that support either 1000BaseT or mini GBIC Gigabit Ethernet ports, a USB port and a
console port. For information on LEDs refer to the following section in this chapter.
Ethernet ports USB port RS-232 port Mini GBIC ports
The back panel contains a 12 VDC jack for emergency power (optional), the primary power-bay cover plate and the
primary power outlet.
