Storm Series Ceiling Speakers
Volume
Control

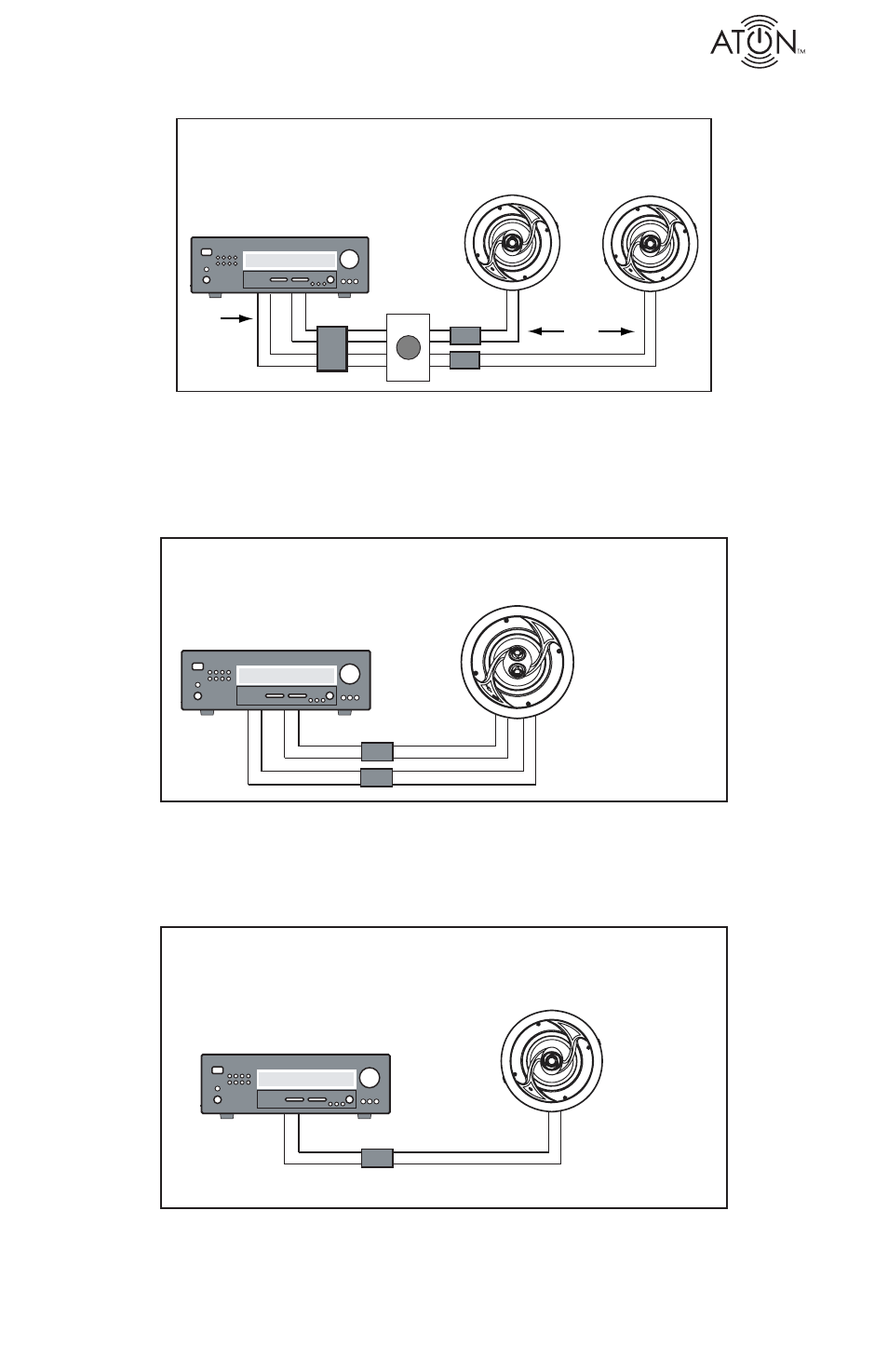

• One 4 conductor speaker wire runs from the amplifier to a stereo
volume control, then one 2 conductor speaker wire runs to each
stereo speaker.
+
-
+
-
+
-
+
-
A/V Receiver/Amplifier
4
Conductor
Wire
2
Conductor
Wire
Figure 3.4 - Wiring: Amplifi er to Speakers w/ Volume Control
• Use any of the stereo wiring methods to connect to a DVC speaker.
This example shows 2 separate 2 conductor speaker wires run from
the amplifier to the DVC speaker.
+
-
+
-
+
-
+
-
A/V Receiver/Amplifier
Figure 3.5 - Wiring: Amplifi er to Speaker-DVC
• Use any of the wiring methods to connect to a mono speaker.
This example shows a 2 conductor speaker wire running directly
from the amplifier to the mono speaker.
+
-
+
-
A/V Receiver/Amplifier
Figure 3.6 - Wiring: Amplifi er to Speaker-Mono
