Storm Series Ceiling Speakers
Home Theater
ATON Ceiling Speakers provide unobtrusive, high-quality Home Theater sound when installed in
the correct locations. It is critical to identify the primary listening position before installation! See
Figure 2.3 for a system design utilizing all ceiling speakers and Figure 2.4 for a system design
utilizing ceiling speakers as rear surround speakers.
TV
X
O
V
E
R
X
O
V
E
R
80
80
120
120 180
180
In-Wall
Subwoofer

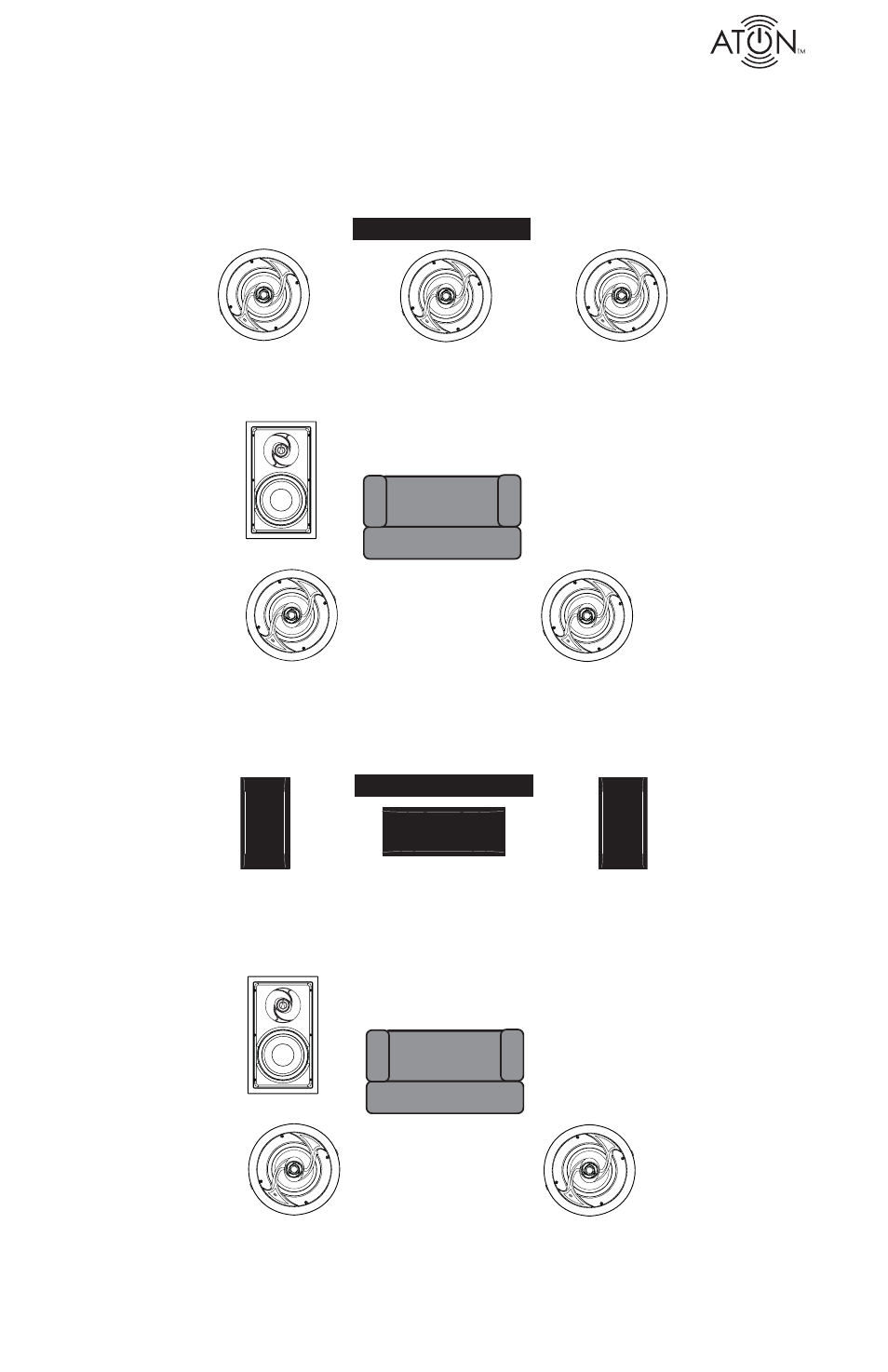

Figure 2.3 - Home Theater-All Ceiling Application
