2
USB Hub
Introduction
Accton’s USB204A offers a convenient and cost-effective
means of bringing Universal Serial Bus (USB) connectivity to
the desktop. Accton’s Universal Serial Bus products feature
true plug-and-play connection of PC peripherals "outside the
box" and mark a significant advance in desktop cable
management. These state-of-the-art, practical products
provide ease-of-use benefits to PC users in the home, office,
and on the road.
The USB204A provides 4 downstream ports, for connection to
USB-equipped peripherals (including other hubs), and 1
upstream port for connection to your PC's USB port, or to
another USB204A. The hub features a compact case with
EZ-mount bracket for upright, flat, wall, or under-desk
mounting. Five USB hubs can be daisy-chained together in
series, supporting any combination of devices up to a
maximum of 127 (including the hubs).

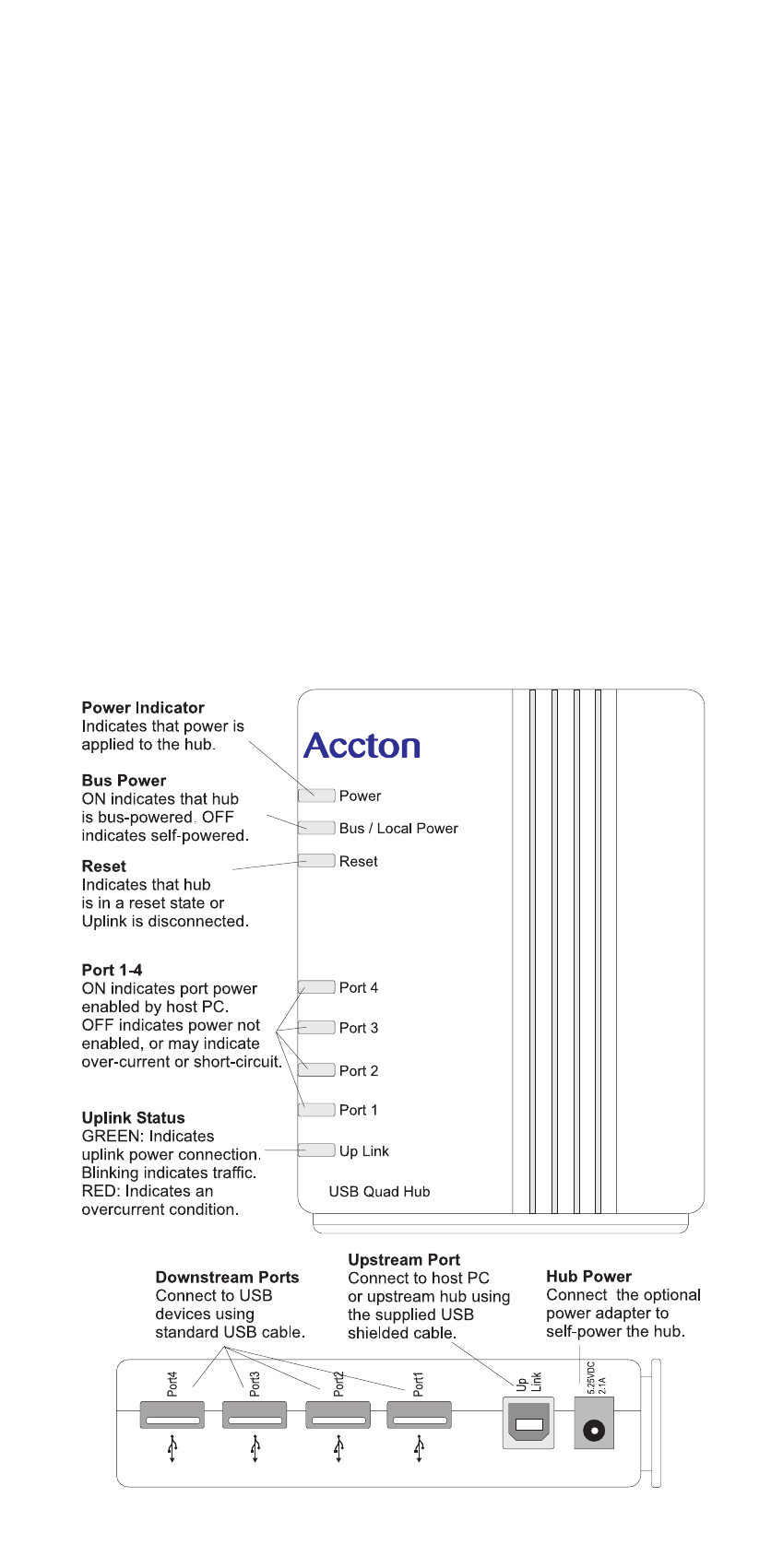

The components of the USB204A are shown in the figure
below:
