Preparation
10
8.
Insert the larger plug (RJ-11) on the module connection cable enclosed into
the jack marked with
on the bottom of the previously connected key ex-
tension module.
9.
Remove the bridge plug from the jack marked with
on the bottom of the
telephone.
10.
Insert the Western Modular plug for the wall-mounted COMfortel XT-PS
power supply into the jack marked with
on the bottom of the telephone.
Wait to connect to the 230 V power supply until the device is to be operated
for the first time.
Warning: Using the wrong wall-mounted power supply may cause a life-
threatening electric shock or may damage or destroy the device:
Ǟ
Use only the wall-mounted COMfortel XT-PS power supply (type
number 809).

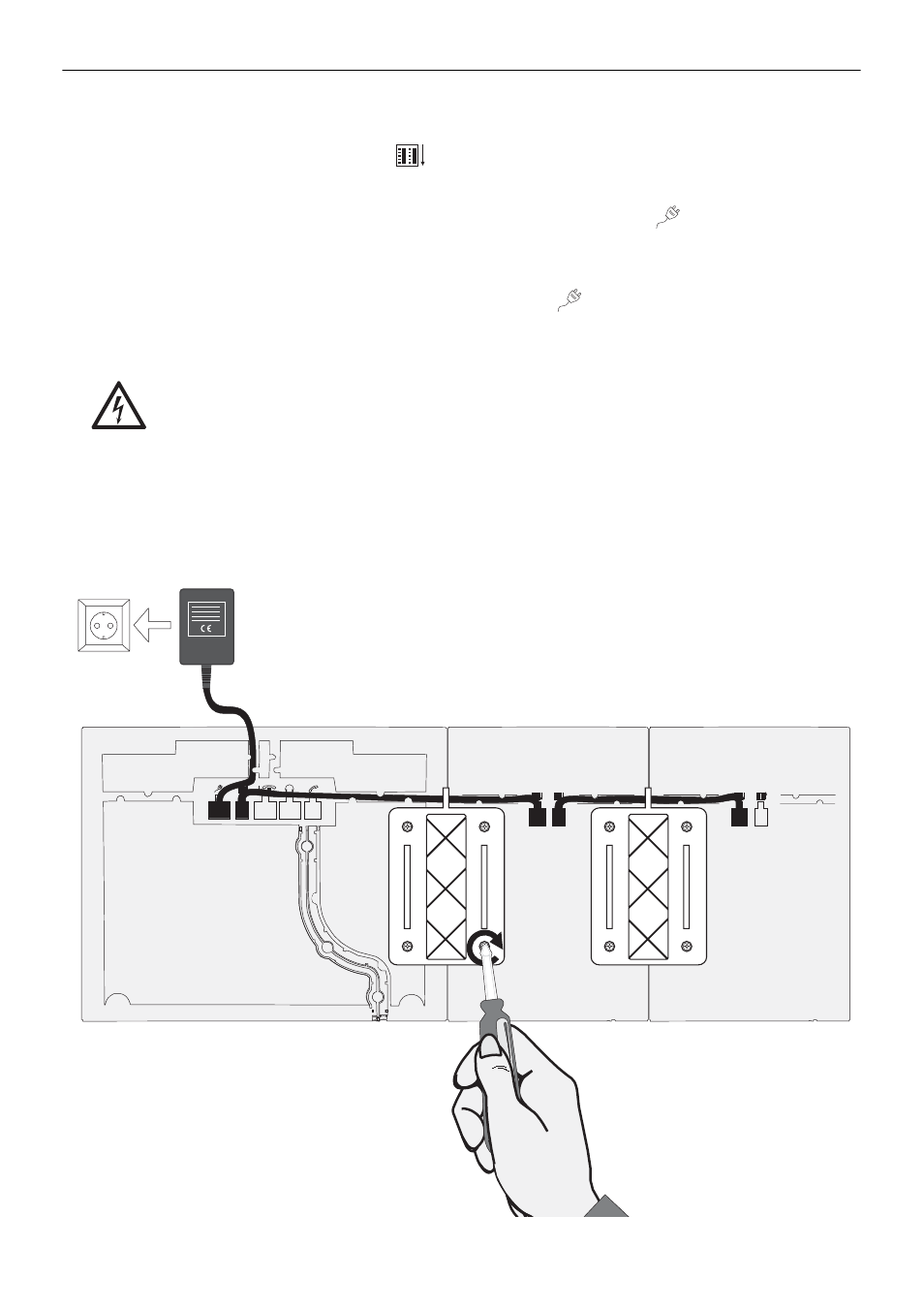

Fig. 1: Connecting and Mounting the COMfortel Xtension30
Key Extension
