Installation steps:
1. Determine a suitable location to install the UV-C
Lamps.
2. Select a location for the remote
UV lamp module
assembly. Drill a 1” diameter hole for each lamp
assembly. Attach lamp module assembly with 2 screws
at the chosen location, or an optional lamp mounting
plate, which has been supplied to mount the lamp
assembly.
Note: The T3 UV lamp assembly can be removed
independently, simply by removing the 2 screws in
the lamp holder.
3. Plug the rubber lamp connector fully onto the
installed
UV lamp assembly. Be sure the 4 pinholes are
orientated properly to the 4 mating pins of the lamp.
Note: the pins are in a rectangular patent and can
only be mated in 2 positions. Pulling the lamp boot
back will help with the visual alignment of the pins
and connections. After making the connection be
sure to Push lamp boot over lamp base.

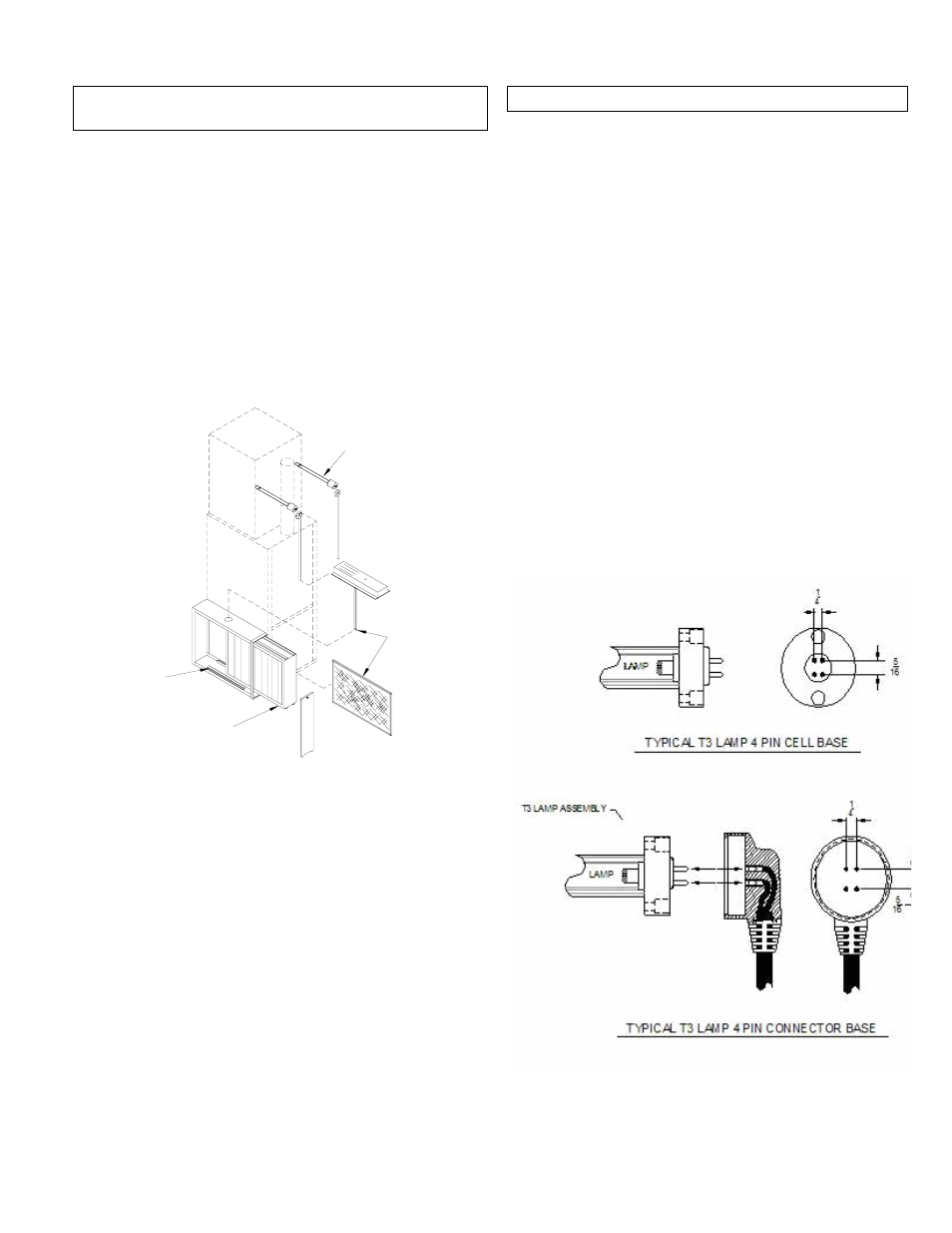

See the illustration of the T3 lamp 4-pin connector.
UV-C Germicidal Lamp, Stage 3, Installation
steps for Models with UVC option.
UV-C Germicidal Stage 3 is designed for installation in
the HVAC (heating, ventilation, and air conditioning)
system.
The optimum installation location for UV-C Germicidal
Stage 3 lamp is in the supply side ductwork exiting the
HVAC system before the ductwork branches.
The UV unit should already be installed in the previous
step; the UVC lamps should be centrally located within
the air handler and positioned to achieve maximum
reduction of airborne pathogens.
Pre and Filter
Rails Included
Ultravation
Progressive pleated
MERV 11 filtration with
UltraStrand shaped
fibers for superior
particle capture
Two Ultravation T3
Remote UVC lamps
for the reduction of
airborne pathogens
(if so equipped)
Photronic air
processing UV-A
lamp / PCO Filter
for VOC odor
reduction
Note:
This Photronic System and the UV-C lamps are
designed to operate constantly and should not cycle
on and off with a blower motor. Installation in a
return air duct is acceptable but not recommended in
a high dust environment.
Do not allow the UVC light to shine on the MERV 11
filter. The UVC energy will decompose the filter
within 120 days.
It is recommended a trained technician install this
unit. Never look at the UV lights without proper eye
protection.
