3
Installation – Filter Housing Cabinet

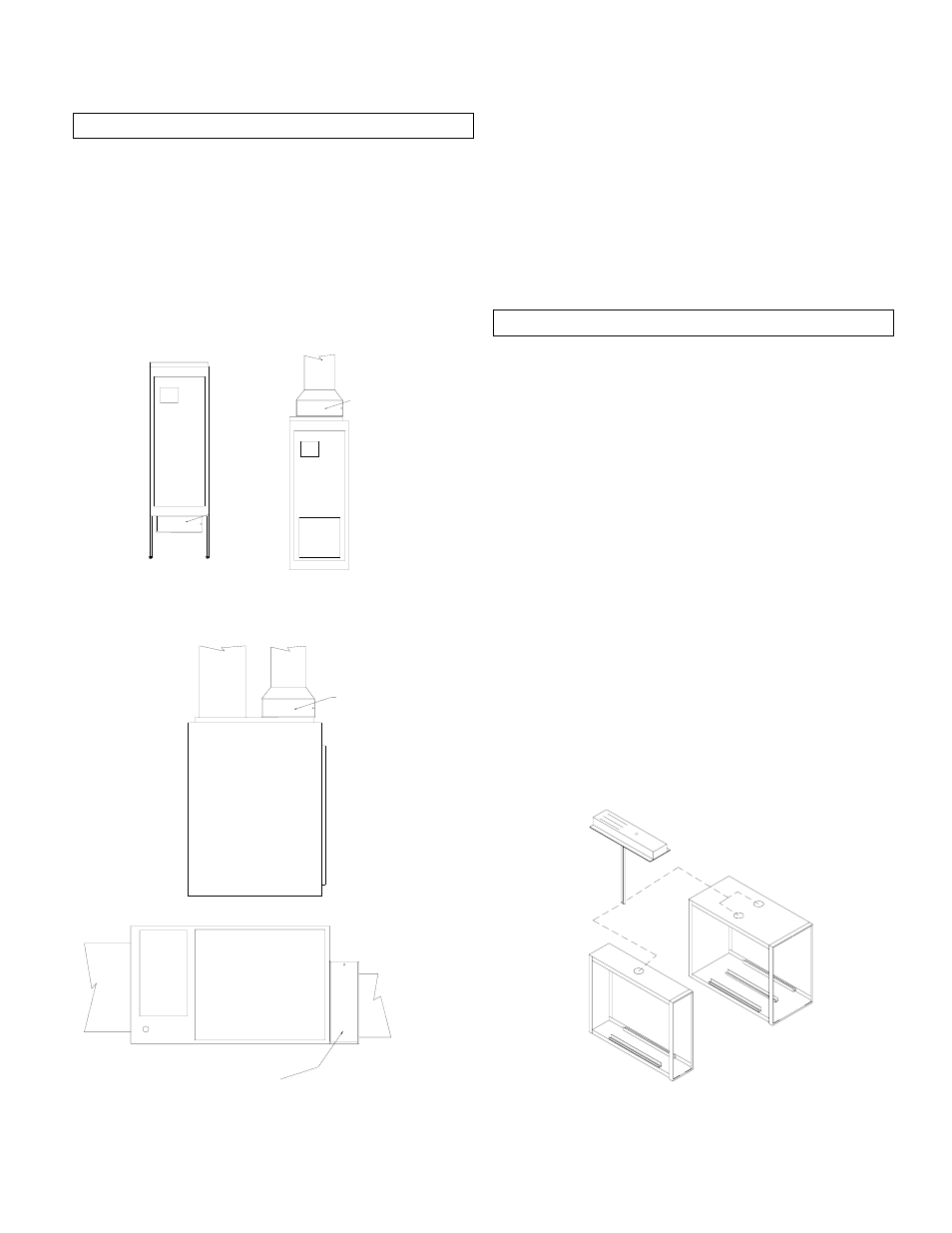

Ultravation Photronic Air Cleaning Systems can be
installed horizontally, vertically, even at an angle. The
air cleaner is also designed to be internally reversible
with the airflow direction. They must be installed in an
area of the duct that precedes the blower compartment.
In this location, the blower motor and internal
components will be kept clean. This increases air
handler component life, improves system efficiency,
and reduces maintenance costs.
LOWBOY HVAC
SYSTEM
RETURN
AIR
DUCT
MEDIA
AIR
CLEANER
SUPPLY
AIR
DUCT
HORIZONTAL
HVAC
SYSTEM
MEDIA
AIR
RETURN
AIR
DUCT
COUNTER-
FLOW
HVAC
SYSTEM
MEDIA
AIR
CLEANER
MEDIA
AIR
CLEANER
HIGHBOY
HVAC
SYSTEM
RETURN
AIR
The Ultravation Straight Through Air Cleaner has been
designed for use in conjunction with virtually any HVAC
system.
Do not install this unit in the supply duct.
Be sure to plan adequate space for filter replacement.
Before installation is complete, seal all joints and
seams with duct tape or caulking.
Installation of Electronic Power Supply:
1. Determine the desired airflow path for installation
and install MERV 11 filter and PCO filter. (This will
determine the placement of the electrical enclosure on
the wide units – remove the knockout from the housing)
2. Remove the cover from the electrical box.
3. Line up the lamp hole in the electrical enclosure with
the knockout on the filter housing and screw electrical
housing into place with provided hardware.
4. Install the twin tube (white in color) photocatalytic
lamp. When installed it is parallel to the Mesh filter.
5. The photocatalytic lamp clips into the socket with
diagonal pressure then seat back into place. (See
Illustration on page 6)
6. See instructions on setting the indicator light on
models utilizing UVC lamps. (page 6).
7. Reinstall the electrical cover.
Electrical
Enclosure
Photronic
Air
Cleaner
Photronic
Air
Cleaner
Photronic
Air
Cleaner
Photronic
Air
Cleaner
