8500 LOW THERMAL SCANNER
OPERATION MANUAL
Transmille Ltd. Page 8
Operating Notes
This section details operational considerations for the 8500 low thermal scanner.
Follow these instructions when operating the scanner.
CAUTION
Do not apply voltages above the maximum rating of 200V.
Excessive voltage can cause permanent damage.
The specifications for connections with CURRENT and VOLTAGE (SENSE) require four wire
connections as standard. Use of these terminal posts are detailed in the section below.
For the case to act as a shield the EARTH terminal must be connected to earth ground or
instrument guard at some point in a calibration configuration. When connecting two or more
instruments with guards, the use of a single common earth point avoids earth loops.
Interface / Power Connections

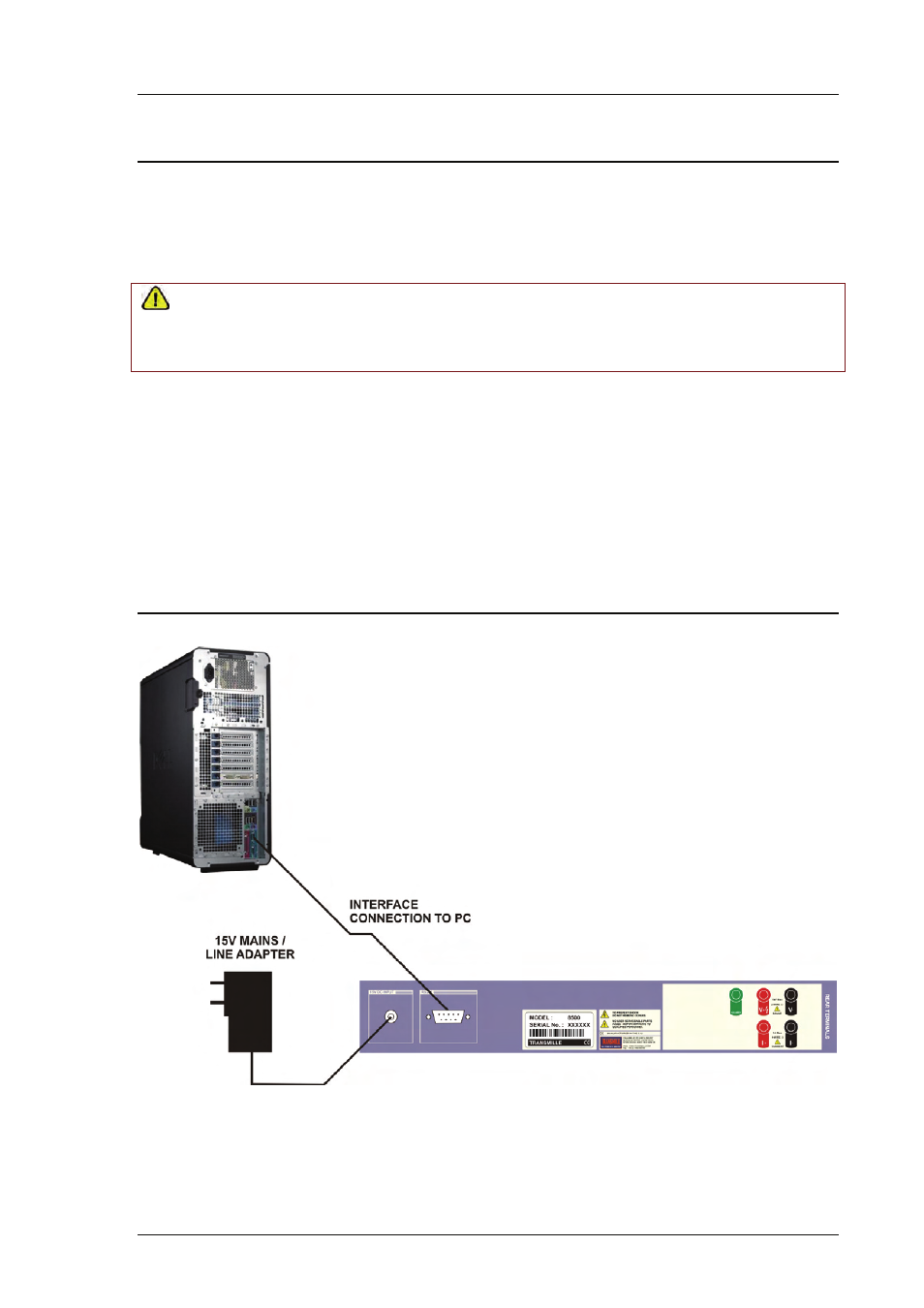

Connect 15V Power Adapter (supplied) to mains / line and RS232 connection to PC
(use RS232 to USB converter if USB connection required).
