8500 LOW THERMAL SCANNER
OPERATION MANUAL
Transmille Ltd. Page 9
Connection Recommendations
For optimum results use two sets of low thermal test leads which are designed to
reduce errors caused by thermal EMFs.

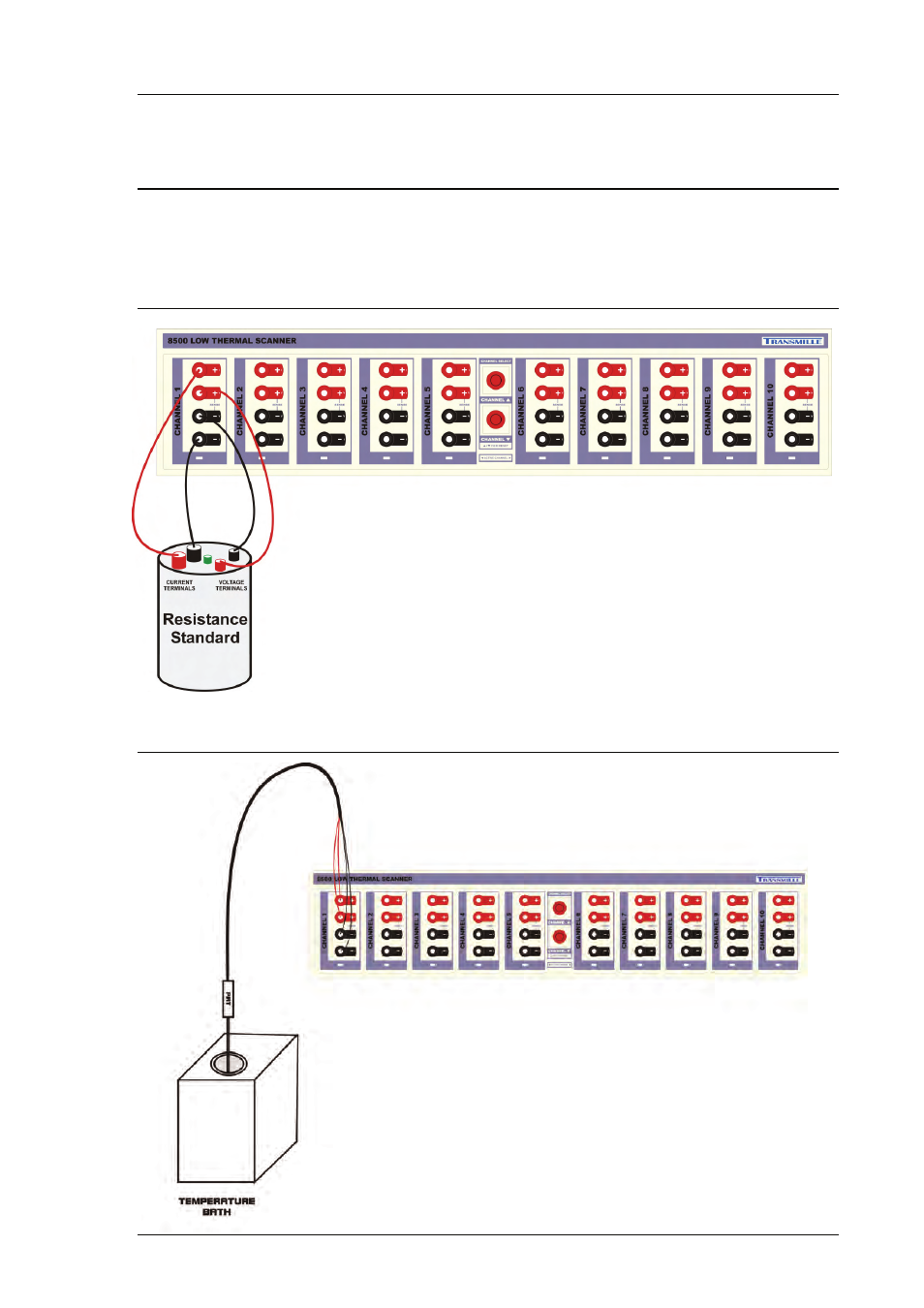

Example Connection : Resistance Standard
Connect one or more resistance standards to the scanner
channel inputs using low thermal connections. Use the front
panel or remote commands to switch between the resistance
standards and measure values using rear panel output
terminals.
Example Connection : PRT Probe
Connect one or more PRT probes to the scanner channel
inputs using low thermal connections. Use the front panel or
remote commands to switch between the probes and
measure values using rear panel output terminals.
