To use: After satisfactorily testing the RCD, any
connected appliance may be switched on, and used in
the confi dence that the user is protected from electric
shock by rapid disconnection of supply.

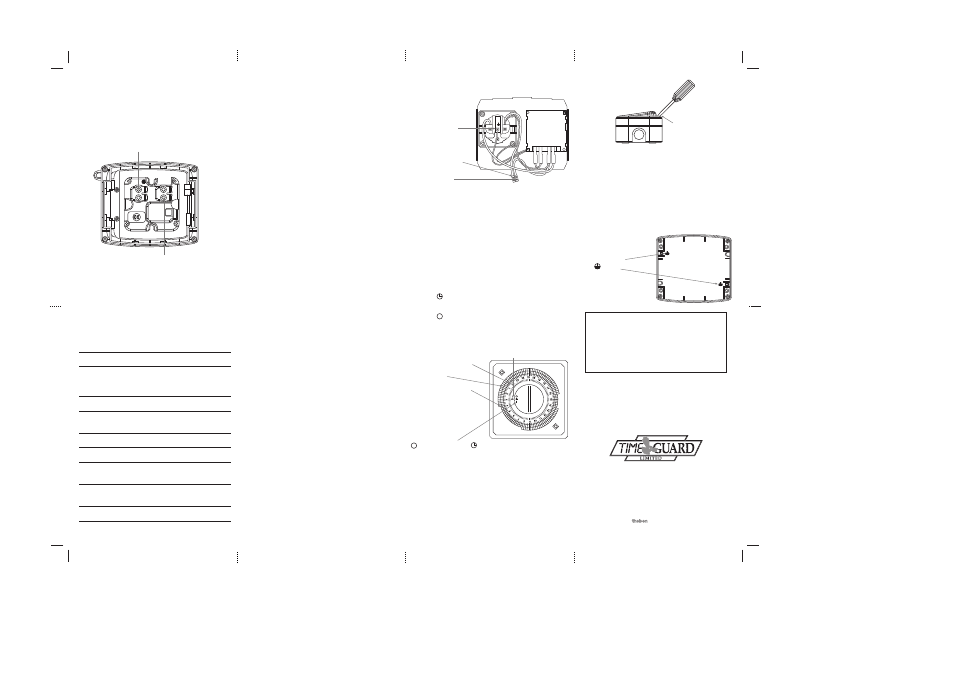

Fig. 4
Rear of Front Panel (TGV104)
If the RCD trips: Turn the appliance switch off, press
the Reset (R) button and note that the status indicator
turns red. Switch the appliance on and if the RCD trips
again, switch off the appliance and do not use, as it
may be faulty. Seek professional advice.
General RCD specifi cations
Voltage: 230V AC 50Hz
Max current: Fully complies with the
current rating required
by BS1363
Rated trip current: 30mA
RCD type: Double pole, suitable for
2 and 3 wire applications
Breaking capacity: 250A (Earth leakage)
Through fault withstand: 1500A
Operating temperature -5ºc to 40ºc
range:
Trip speed: Less than 40msec at
150mA residual current
Fully complies with: BS7288 & BS1363
Fig. 7
Rocker Removal – TGVL Range
Concerning TGVL01, TGVL02, TGVL03 only.
If a local neutral is required to give permanent
indication of switch position using the neon supplied,
or for wiring purposes, then use one of the earth
terminals shown in fi g. 8 as a neutral wiring terminal.
Note:
This is the only way the neon should be connected.
Fig. 8
TGVL01, TGVL02, TGVL03 Earth terminal positions.
Safety issues to remember
• Electricity can be dangerous, use of an RCD should
not be regarded as a substitute for basic electrical
safety precautions.
• Always test the RCD before use. If the test
procedure
is not completed satisfactorily or
an appliance continues to trip the RCD seek
professional advice and switch off the appliance.
• To clean, use a clean dry cloth only.
Do NOT use any liquid cleaners.
• A warming of the case during use is normal.
Wiring tests – important
Remove this product from circuit if carrying out tests
(as described in the IEE Wiring Regulations) for earth
loop impedance, prospective short circuit current and
insulation resistance.
Use the enclosed warning label to ensure this is
carried out.
Weathersafe Vision Products with
Timeswitches (TGV203)
The TGV203 provides a time controlled 13A
socket outlet.
Features
• Permanent ON/OFF facility.
• Shortest switching time of 15 minutes, increasing
in 15 minute steps.
• Up to 48 ON/OFF switchings per day.
Connections
Connect to terminals as shown in fi g. 5.
Timer instructions
Programming
1. Decide what times you would like the timeswitch
to switch ON and OFF.
2. Push all the segments in towards the centre of the
timeswitch for the complete duration of an OFF period
and leave them all in the outer position for the ON
period (see fi g. 3). The minimum switching interval
is 15 minutes and this can be increased in 15
minute steps.
3. Bring the timer into the correct condition by manually
turning the programming ring clockwise through a 24
hour cycle. Note: when an ON/OFF or OFF/ON segment
transition passes the time indicator a slightly increased
resistance to movement is felt.
4. Turn the programming ring clockwise until the correct
time of day on the ring lines up with the time indicator.
Fig. 5
TGV203 – Wiring Connection
Points to note:
• The segment dial can be turned when the time
controller is operating.
• In case of power failure, re-adjust the time controller
to the correct time of day, turning the dial in a
clockwise direction.
Permanent Override
By rotating the central switch clockwise so that the ‘ I ’
symbol lines up with the time marker the unit will be
permanently ON.
With the symbol lining up with the time marker the
unit acts as a time switch.
With the symbol lining up with the time marker the
unit will be permanently OFF.
Fig. 6
TGV203 – Timer controls
Weathersafe Vision Products with
switches (TGVL01, TGVL02, TGVL03,
TGVL05)
To take switch apart fi rst remove switch rocker (actuator).
This may be done by inserting a fl at blade screwdriver
between the case and rocker as shown in fi g. 7 and
levering the rocker off at its pivot point. Be sure to
protect the casing under the screwdriver blade with a
piece of card as shown.
SUPPL
Y
LN LOAD
MADE IN U.K.
13A 220-240V
LN
Live and Neutral Connections for Load
(Transposing Load and Supply Connections will cause
damage to the unit)
Live and Neutral Connections for Supply
N
E
L
Earth Connection
Neutral Connection
Live Connection
24hr programming ring
Time and control indicator
ON segments
Time control segments
1 segment = 15 minutes
Push towards
programming ring = OFF
Push away from
programming ring = ON
Control function
= Permanently OFF = Time control I = Permanently ON
One of these two
terminals marked
earth
can be
used as a neutral
terminal.
