Flow rate vs temperature rise, Pressure loss, T-h3m – Takagi T-H3M-IN/OS User Manual
Page 4
Residential Gas Condensing
High Efficiency
Tankless Water Heaters
Page 4 of 4
www.takagi.com
TRGSS01713

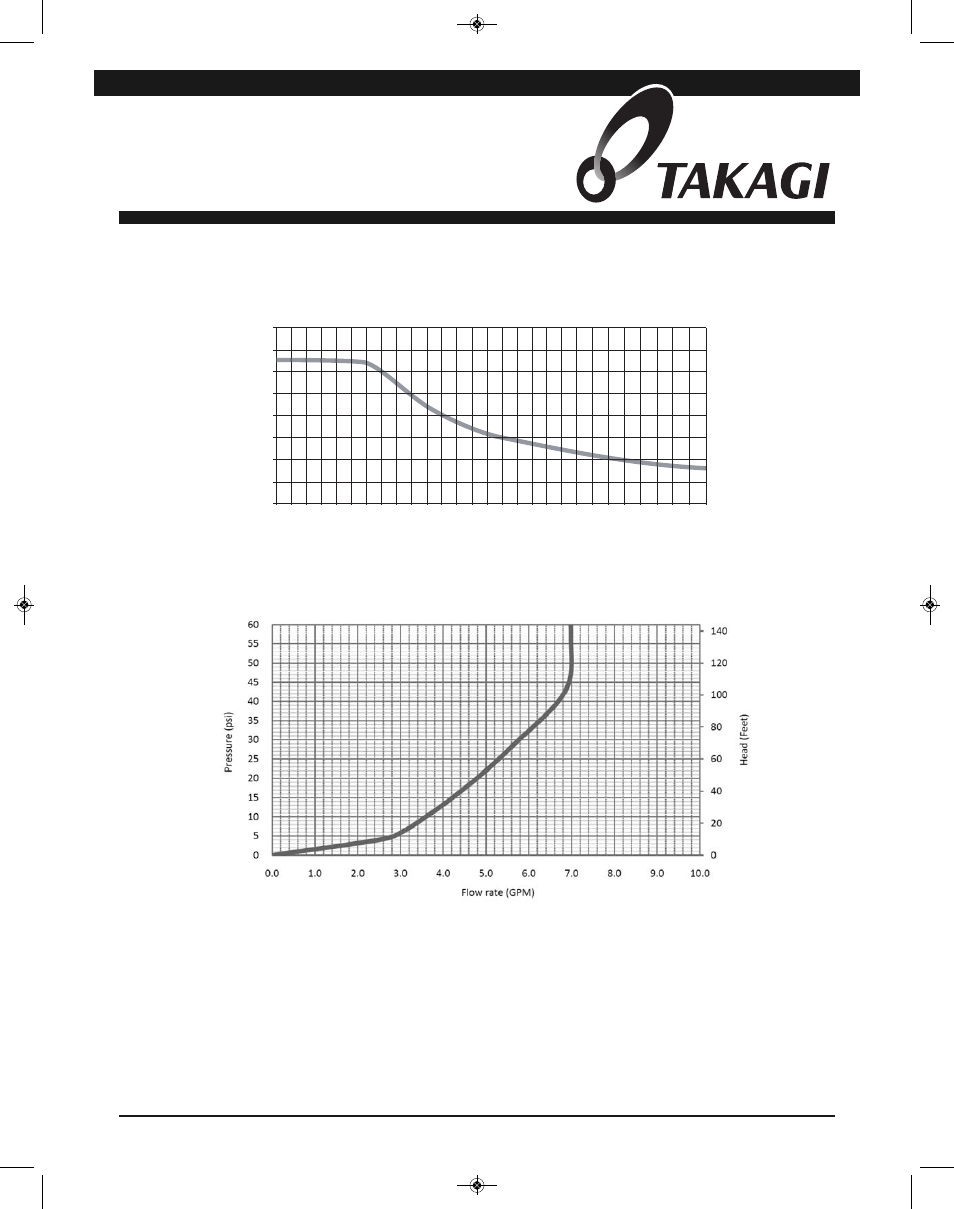

FLOW RATE vs TEMPERATURE RISE
T-H3M
Flow Rate (gpm)
1
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140
2
3
4
5
6
7
8
0
PRESSURE LOSS
Temperature Rise (°F)
