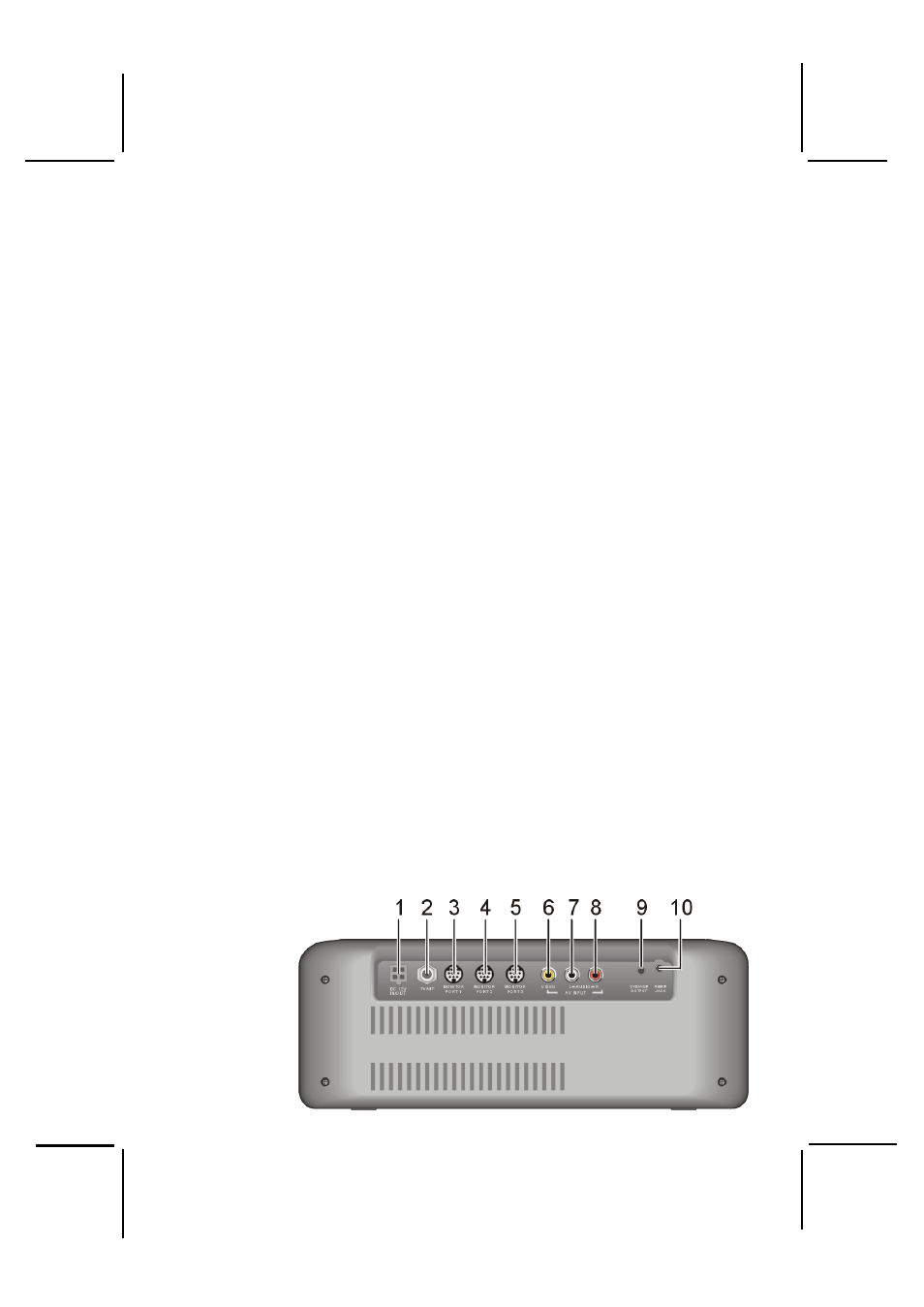

G. Rear Panel Connections
DC 12V INPUT Jack (1)
When using a DC power source, connect this jack to 12 Vdc
TV
ANT. Connector (2)
Connect the TV antenna to this connector.
MONITOR PORT 1 Connector (3)
Connects to external Monitor for remote viewing purposes.
MONITOR PORT 2 Connector (4)
Connects to external monitor for remote viewing purposes.
MONITOR PORT 3 Connector (5)
Connects to external monitor for remote viewing purposes.
VIDEO INPUT Jack (6)
Connect this jack to the video out jack/terminal of your Game
machine, Camcorder, or Portable DVD Player.
AUDIO INPUT L Jack (7)
Connect this jack to the left audio out jack/terminal of your Game
machine, Camcorder, or Portable DVD Player.
AUDIO INPUT R Jack (8)
Connect this jack to the left audio out jack/terminal of your Game
machine, Camcorder, or Portable DVD Player.
SPEAKER OUTPUT Jack (9)
Connect the external speaker to this jack for voice annunciator.
REMIR Jack (10)
This connector provides the interface with the IR input of the
Remote Control.
