ProMariner ProTournament - Manual (Page 8)

0
:0
0
2
:0
0
4
:0
0
6
:0
0
8
:0
0
1 0
:0
0
14
13
12
11
14.6V
13.3V
3 hours
Fast Charge Absorption Charge Float Mode
Elapsed Hours
Average Voltage
V
olts
Charge Mode Indicator and Operation
When the ProTournament Marine Battery Charger is activated the on-board
tri-mode LED indicator will illuminate as follows for each step of charging:
Step 1: Fast Charge – Solid Red Indicator
During this mode the on-board tri-mode indicator will be a solid red indicating
fast charge.
The charger will deliver its maximum amperage rating to the connected batteries
for the fastest charge (current regulation mode) until battery voltage is raised to
14.6 volts (lead acid factory setting). At this time the ProTournament will shift to:
Step 2: Absorption Charge - Flashing Red Indicator or Continued Solid Red for
ProTournament100 and 200
During this mode the on-board tri-mode indicator will be flashing red indicating
absorption charge.
This mode maximizes charge and holds voltage at 14.6 volts (lead acid factory
setting) for 3 hours (voltage regulation mode) while letting the batteries determine
the amount of amps they can accept. This mode creates activity in the batteries
reducing sulfate buildup and conditions batteries for extended life. After
approximately 3 hours has elapsed the ProTournament will shift to:
Step 3: Float Mode - Solid Green Indicator
During this mode the on-board tri-mode indicator will be solid green indicating
float mode.
A precision 13.3 volts (lead acid factory setting) finishing voltage that maintains
each battery (step down voltage regulation mode) which is perfect for short or
long storage periods and will never overcharge your batteries.
6
Note: If the tri-mode LED indicator is not on at all this may be an indication of
a short or a faulty battery on one of the banks.
P r o To u r n a m e n t O v e r v i e w

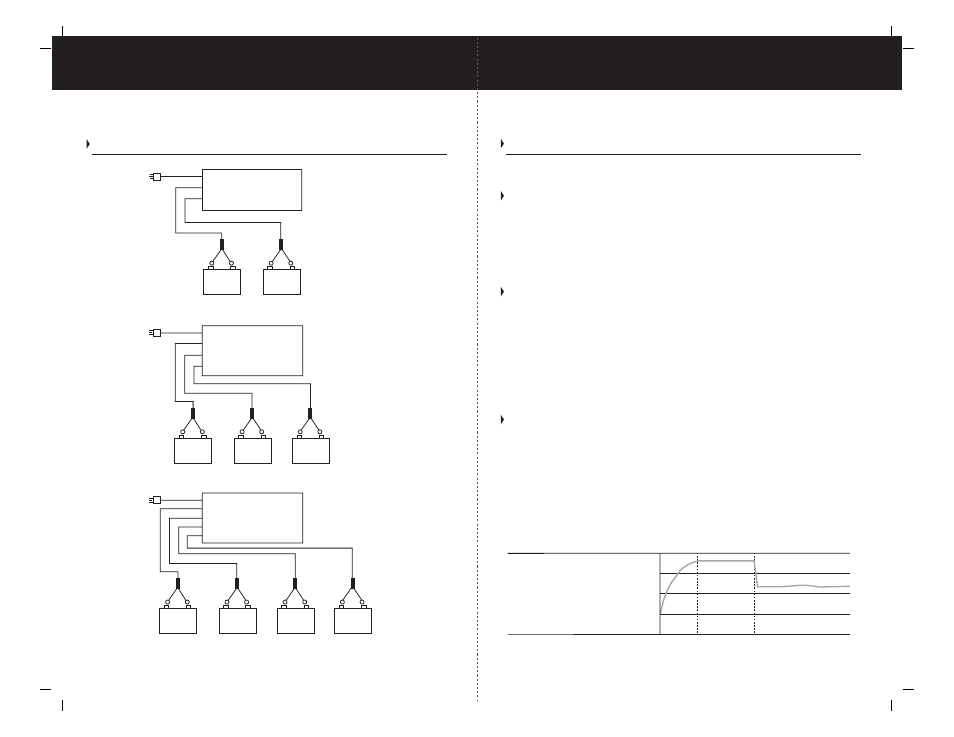

ProTournament Series Wiring Diagrams
9
I n s t a l l a t i o n G u i d e l i n e s
Trolling Motor
Battery 2
Trolling Motor
Battery 1
+ _ + _ + _
AC power
output no.1 (gray)
output no.2 (green)
output no.3 (yellow)
yellow green gray
ProTournament 300Quad
red red red black or yellow black or yellow black or yellow
+ _
red black or yellow
charcoal / black
Engine
Start Battery 4
Trolling Motor
Battery 3
output no.4 (black)
black or yellow
Engine
Start Battery 2
Trolling Motor
Battery 1
+ _ + _
AC power
output no.1 (gray)
output no.2 (yellow)
yellow gray
ProTournament 100 and 200
Wiring Diagram
red black or yellow red
Engine
Start Battery 3
Trolling Motor
Battery 2
Trolling Motor
Battery 1
+
_
+
_
+
_
AC power
output no.1 (gray)
output no.2 (green)
output no.3 (yellow)
yellow green gray
ProTournament 150 and 300
Wiring Diagram
red red red black or yellow black or yellow black or yellow
