SOLUTION TEMPERATURE
CONTROL
SOLUTION PRESSURE
REGULATOR
SOLUTION OUTLET
CHEMICAL
CHECK
VALVE
VACUUM
LUBRICATION
LUBRICATE
WITH VACUUM INLETS SEALED
SOLUTION
SCREEN
WARM HOT
LUBRICATE REGULATOR SEALS
EVERY 50 HOURS.
RECOMMENDED LUBRICANT:
SYNCO SUPER LUBE
STARTING SHUTDOWN AND DAILY MAINTENANCE
CONDENSED OPERATING INSTRUCTIONS
STARTING
CONDENSED OPERATING INSTRUCTIONS
1. CONNECT WATER HOSE TO WATER INLET CONNECTION AND TURN ON WATER SUPPLY.
2. CONNECT SOLUTION AND VACUUM HOSE TO THE DESIRED CLEANING TOOL AND TO THE CONSOLE.
3. PULL OUT THROTTLE 3/4 INCH.
4. PULL OUT ENGINE CHOKE. TURN WASTE PUMPOUT SWITCH TO OVERRIDE POSITION AND TURN IGNITION SWITCH TO START.
5. PUSH IN CHOKE AND RELEASE OVERRIDE SWITCH AFTER ENGINE HAS STARTED.
6. INSERT CHEMICAL INLET AND PRIME HOSES INTO CHEMICAL CONTAINER.
7. ROTATE CHEMICAL VALVE TO PRIME AND FLOW THROUGH THE CHEMICAL CIRCUIT. AFTER ALL AIR BUBBLES HAVE BEEN REMOVED, TURN THE CHEMICAL VALVE TO THE ON POSITION.
8. TURN THE CHEMICAL VALVE TO RUN, OPEN THE VALVE ON THE CLEANING TOOL AND SET THE CHEMICAL FLOW VALVE TO THE DESIRED CHEMICAL FLOW RATE WHILE OBSERVING THE FLOW METER.
9. SET THROTTLE TO THE DESIRED OPERATING SPEED.
10. FOR QUICK HEAT-UP REFER TO THE OPERATING INSTRUCTION MANUAL.
1. TURN CHEMICAL VALVE TO THE OFF POSITION, AND REMOVE THE VACUUM HOSE.
2. ALLOW THE UNIT TO RUN FOR 2 MINUTES WITH THE VACUUM HOSE DISCONNECTED TO REMOVE MOISTURE THEN SPRAY A WATER DISPLACEMENT/LUBRICANT INTO THE VACUUM LUBRICATION CUP. THIS WILL PREVENT CORROSION DUE TO MOISTURE.
3. PUSH THE THROTTLE “IN” TO THE IDLE POSITION AND OPEN THE TEMPERATURE BYPASS VALVE FOR 2 MINUTES ALLOWING THE UNIT TO COOL DOWN.
4. TURN OFF IGNITION SWITCH.
5. DISCONNECT ALL HOSES AND TOOL S.
6. DRAIN WASTE TANK INTO AN APPROVED SOURCE AND CLEAN THE STRAINER BASKET AND WASTE TANK FILTER. ALLOW CHEMICAL TO
Safety
Safety Labels

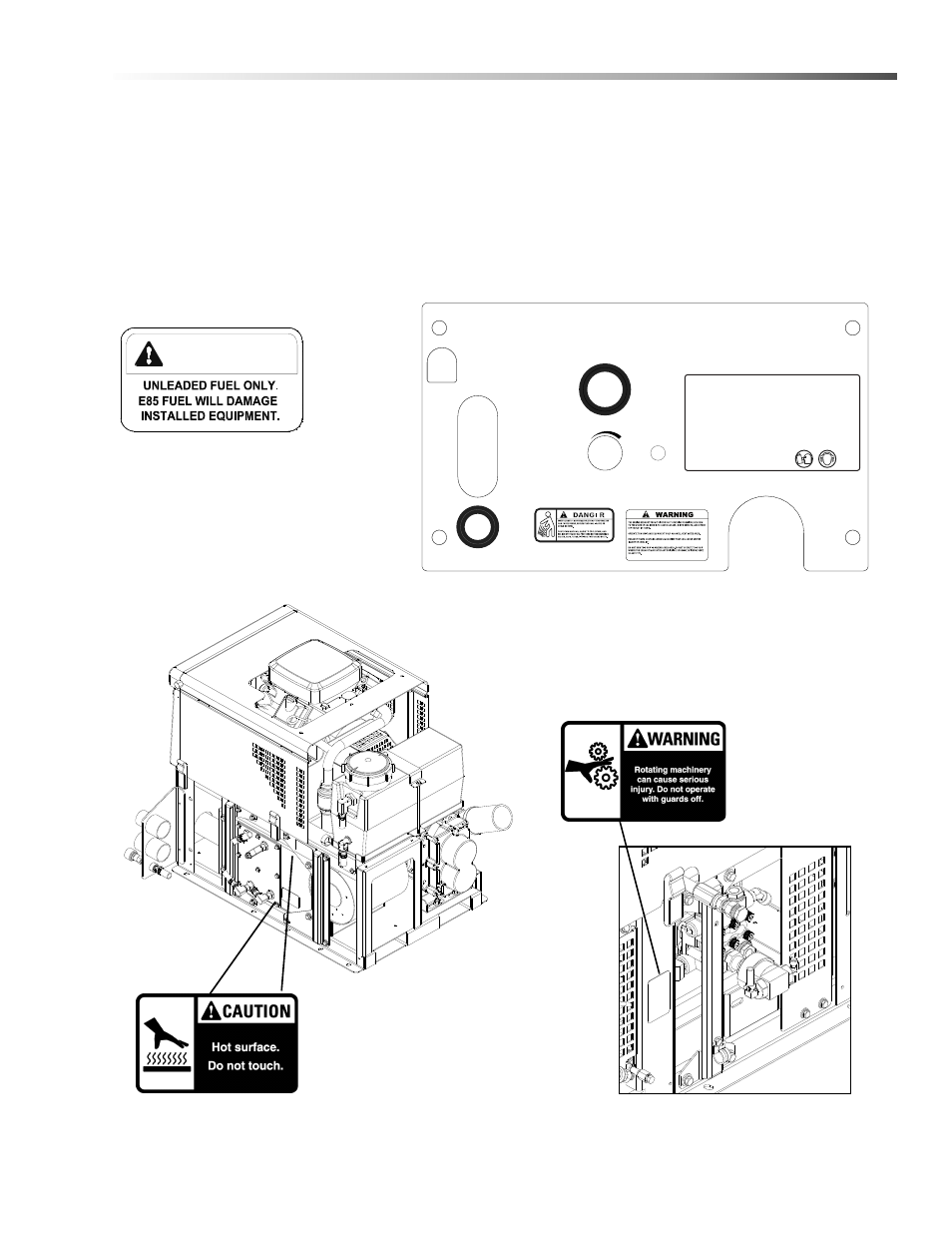

The following WARNING LABELS are found on your cleaning unit. These labels point out important Warnings and
Cautions which should be followed at all times. Failure to follow warnings and cautions could result in fatality,
personal injury to yourself and/or others, or property damage. Follow these instructions carefully! DO NOT remove
these labels.
NOTE: If at any time the labels become illegible, promptly replace them.
86317260 BLAZER GT
Warning Label
P/N 86186520
Caution Label
P/N 86186530
Lower Front Panel Decal
with warning labels
P/N 86316190
Caution Label
P/N 86352580
Installation on vehicle fuel door.
CAUTION
