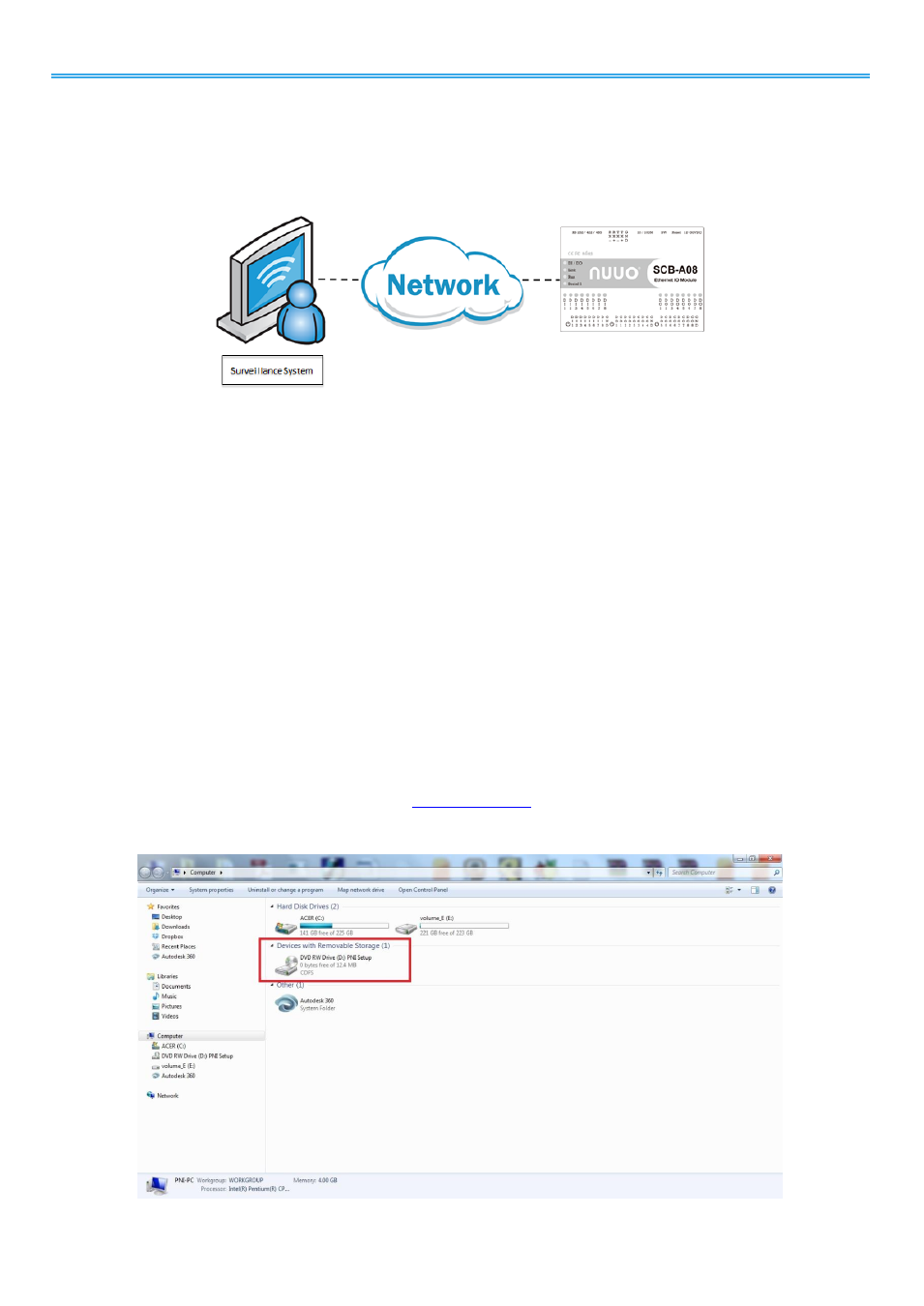

3. Network Deployment Diagram
This diagram shows how server and all in one I/O box A08 are deployed within the surveillance network to
work.
Fig. 3. Network Deployment Diagram
4. Hardware Setup
This chapter combs through the necessary setup for the major components in the surveillance network
including:
1. I/O box SCB-A08,
2. Windows-based server PC.
4.1. Connect SCB-A08 to Server PC
Step 1: Connect SCB-A08 to PC with Ethernet cable and apply power.
Step 2: On PC, install SCB-A08 search tool.
- Insert NUUO SCB-A08 CD in CD-ROM will automatically launch the Install Shield Wizard. If the Wizard
does not run automatically, please enter Computer and click the CD/DVD ROM.
- SCB-A08 search tool is downloadable at www.nuuo.com > Download
Once search tool is successfully installed, PC auto-detects SCB-A08.
