Revelation Solo Features
Carefully unpack your MXL Revelation Solo Cardioid Pattern Tube microphone to verify that
all of the components are included. Your MXL Revelation Solo includes the following:
•
Revelation Solo Microphone
• 15ft 7-pin Mogami® cable
• 15ft XLR Mogami® microphone cable
• Revelation Solo power supply
• Shockmount
• Aluminum flight case
• Cleaning cloth
If any of the above items are missing or damaged, contact the company you purchased
it from for assistance.
Power Requirements
The MXL Revelation Solo uses an EF86 tube that requires a dedicated power sup-
ply unit (included with your microphone). Even if your mixer has phantom power, it is
recommended that you defeat the phantom power as a precautionary measure when it
is not needed to power other mics that you might also be using.
This supply is switchable between 110 volts and 220 volts AC. In North America, the
microphone ships in the 110 volts AC position and in the 220 Volts AC position for
export. However, you always want to ensure that the power supply voltage is correctly
set for your local voltage as permanent damage to the microphone and/or power supply
may occur if the incorrect voltage setting is selected. Every Marshall Electronics MXL
microphone has been thoroughly checked before shipping; so if you do not hear sound,
check that the power supply is switched on.
Caution
Do not “hot plug” the mic. Always ensure that the power supply is off when plugging
and unplugging the included 7-pin cable from the microphone to avoid damaging the
microphone and power supply.
Bass Roll-off Switch
9
Cardioid Pattern Tube Condenser
Type: Microphone
Diaphragm: 6 micron diaphragm
Tube Type: EF86
Frequency Range: 20 Hz-20 kHz
Polar Pattern: Cardioid
Sensitivity: -40 dB re 1 V/Pa
Impedance: 140 ohms
Pre-Attenuation Switch: 0 dB, -10 dB
S/N Ratio: 76 dB
Equivalent Noise Level: 18dBA (A-weighted IEC 651)
Max SPL for 0.5% THD: 138 dB SPL
High Pass Filter: 12 dB/octave @ 125Hz
Revelation Power Supply Unit
Power Requirements: 110/220 VAC, 50/60Hz
Size: 7 1/2” X 2 1/2” (mic only)
Weight: 2lbs (mic only)
Metal Finish: Dark Violet and Chrome
Specifications

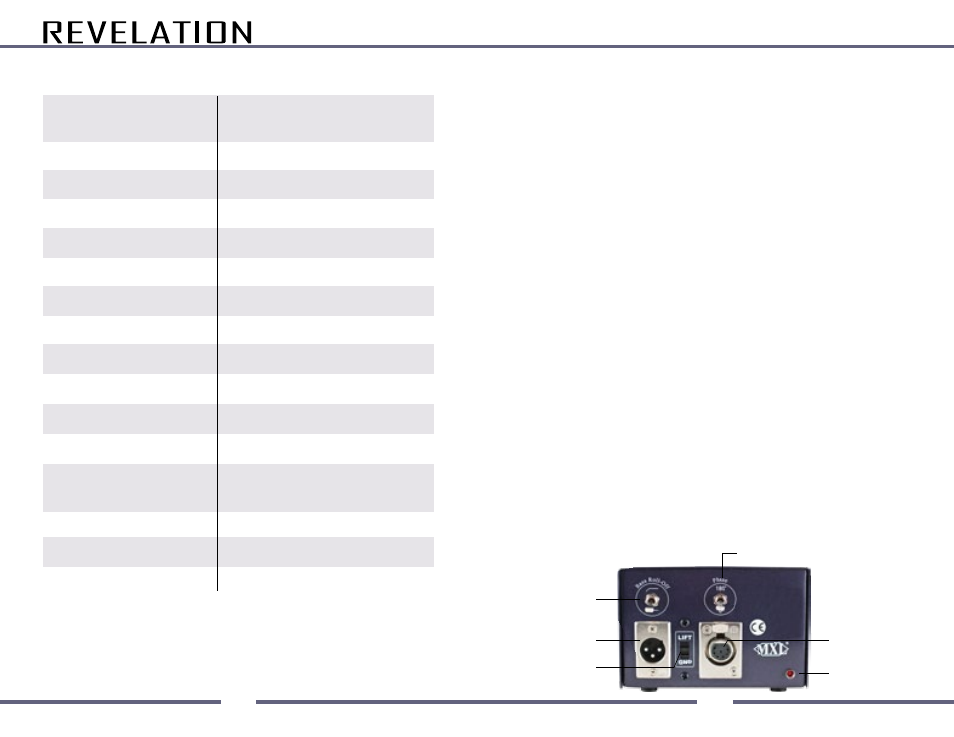

Phase Switch
Power on LED
7-pin Mic Cable
Bass Roll-off
Switch
XLR Mic Output
Ground Lift
Switch
