1. Battery Door
2. Monitor/Backlight Button
3. Detachable Carry Clip
4. Push-To-Talk (PTT) Button
5. Antenna
6. External Speaker(SPK)/Micro-
phone (MIC) Jacks
7. Liquid Crystal Display (LCD)
8. Combination Transmit Indi-
cator (Red)/Receive and Moni-
tor Indicator (Green)

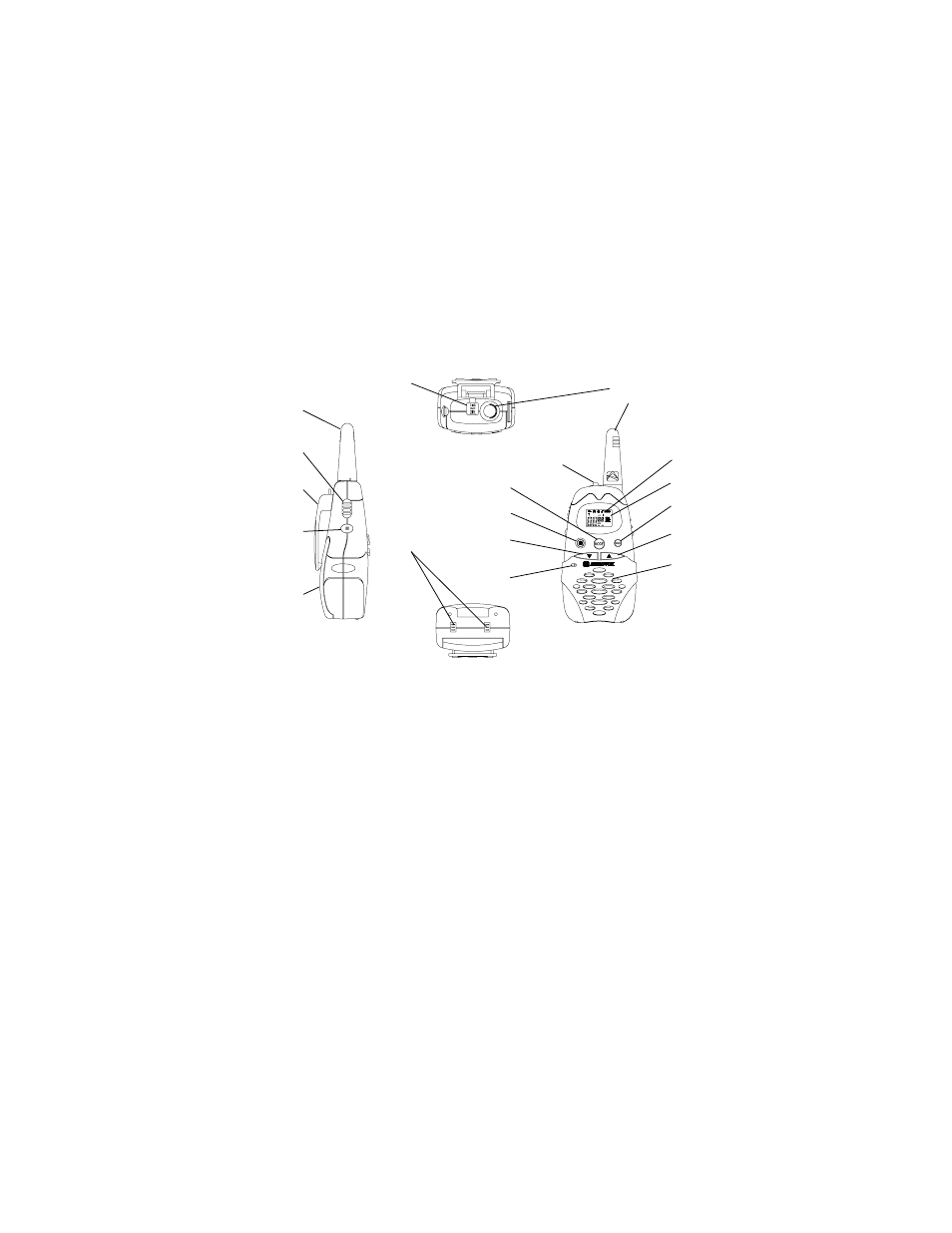

Model FRS-3000PK Mobile Transceiver Controls
and Indicators
9. SCAN/Lock Button
10. Up Channel/Volume Button
11. Built-in Speaker
12. Built-in Microphone
13. Down Channel/Volume
Button
14. Power On/Off Control
15. MODE Button
16. Battery Charging Contacts
3
5
4
1
2
6
OUT OF RANGE
9
13
11
8
10
12
7
16
14
5
(REF)
6
(REF)
15
